GB21456 Low Carbon Steel Test Pans with Calibration Certificate issued by ISO17025 Lab
1. Introduction
The standard pan is designed according to annex A, GB21456-2014, it is applied to evaluate the energy efficiency and energy efficiency grades. The pan and the lid are made of Q235 having a maximum carbon content of 0.08%, and the thickness of the lid (t) is 1mm, the bottom of the pan can not convex outward, and the maximum concavity at the bottom is 0.6% times the effective diameter. The surface of the pan and the lid should be smooth and polished to prevent rust.
2. Parameter

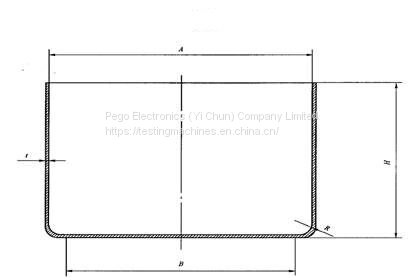

Size of vessels | |||||
Figure No. |
A/mm |
B/mm |
H/mm |
t/mm |
Volume/L |

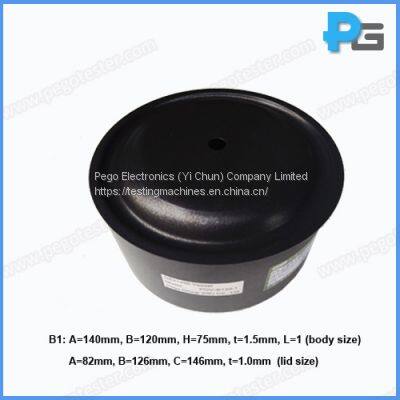

B1 |
Φ140 |
Φ120 |
75 |
1.5 |
1 |
B2 |
Φ200 |
Φ180 |
95 |
1.5 |
3 |

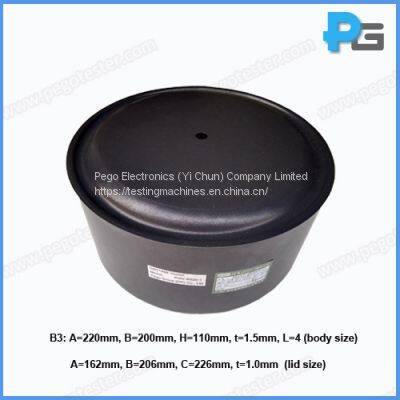

B3 |
Φ220 |
Φ200 |
110 |
1.5 |
4 |

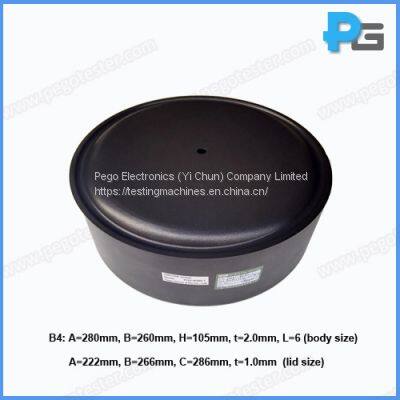

B4 |
Φ280 |
Φ260 |
105 |
2.0 |
6 |

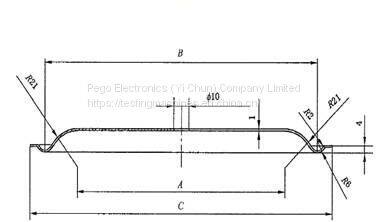

Size of lids | ||||
Figure No. |
A/mm |
B/mm |
C/mm |
t/mm |
B1 |
Φ82 |
Φ126 |
Φ146 |
1.0 |
B2 |
Φ142 |
Φ186 |
Φ206 |
1.0 |
B3 |
Φ162 |
Φ206 |
Φ226 |
1.0 |
B4 |
Φ222 |
Φ266 |
Φ286 |
1.0 |
