DPB-80 Small Pharmaceutical Tablet Capsule Blister Packing Machine

DPB-80 Small Pharmaceutical Tablet Capsule Blister Packing Machine photo-1

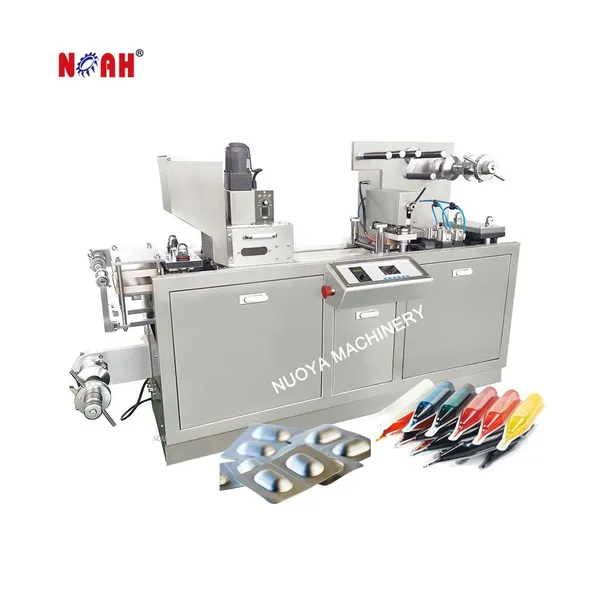

DPB-80 Small Pharmaceutical Tablet Capsule Blister Packing Machine photo-2

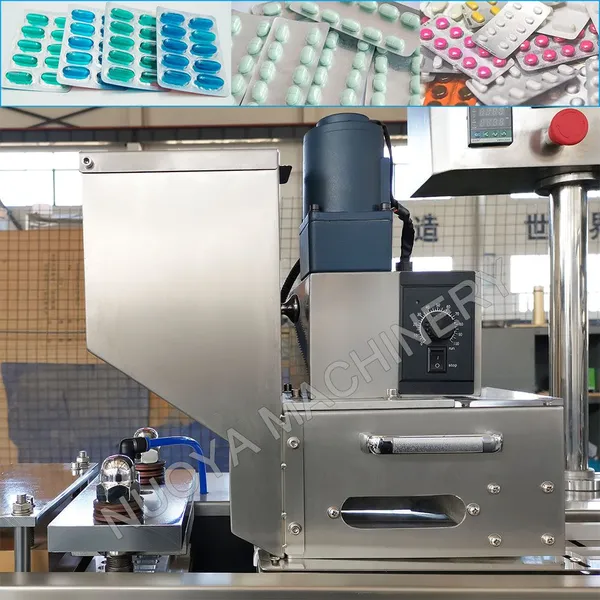

DPB-80 Small Pharmaceutical Tablet Capsule Blister Packing Machine photo-3

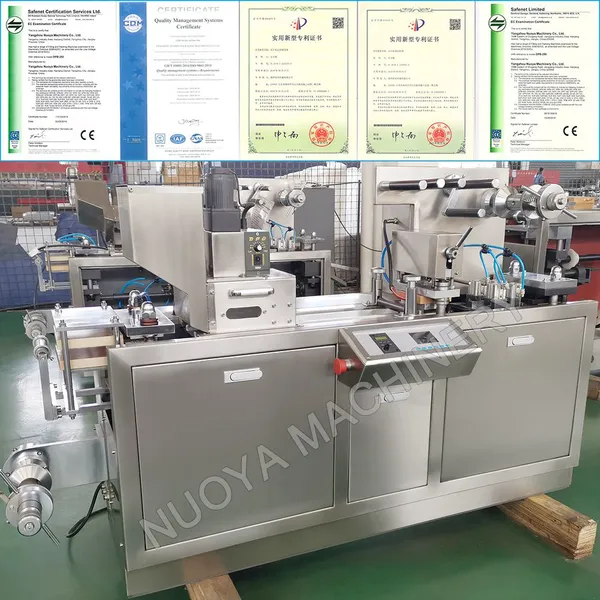

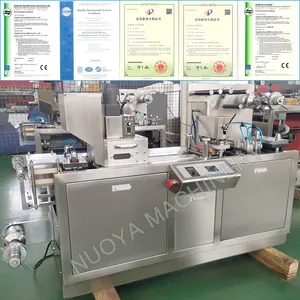

DPB-80 Small Pharmaceutical Tablet Capsule Blister Packing Machine photo-4

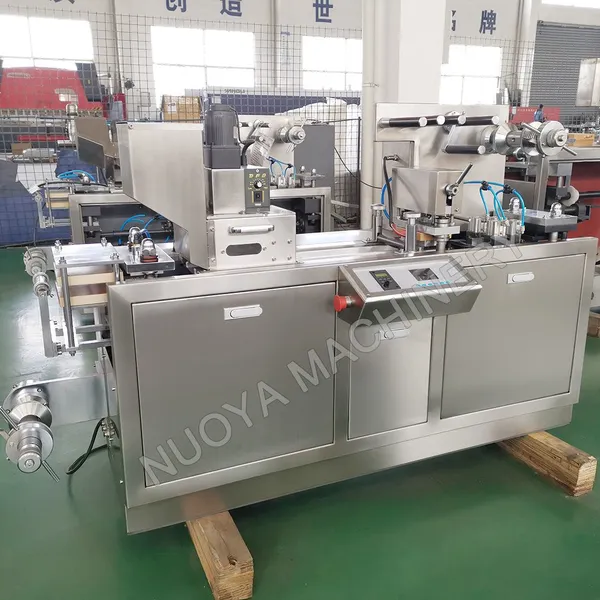

DPB-80 Small Pharmaceutical Tablet Capsule Blister Packing Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
china
Delivery Detail:
Delivery time depends on order quantity.
DPB-80 Small Pharmaceutical Tablet Capsule Blister Packing Machine
Products Description
Applications:The product is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy operation, stroke adjustable, long durability etc. It can protect the material from steam or dust, improve product packing degree and increase the additional value. The machine is used to produce small quality and many kinds of products.
Characteristic: 1.The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements. 2.Travel scope can be adjusted. Mould is located by located groove so that it’s easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing. 3.The equipment of trace pressing, batch number printing and scrap-collecting can be chosen. 4.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Cutting Frequency
8-35times/min
Capacity
600-2100strip/h
Max shaping areas and depth
110×60×15 mm
Stroke
20-70mm(can be manufactured as user's requirements)
Standard Sheet
80×57,80×35,105×42,105×55 mm
(can be manufactured as user's requirements)
Air Pressure
0.5mpa-0.7mpa0.15m3/min
Total power
380V/220V 50Hz/ 60Hz 1.8kw
Main motor power
0.55 KW
PVC hard pieces
0.15-0.5×80 mm
PTP Aluminum Foil
0.02-0.035×80 mm
Dialysis Paper
50-100g×80 mm
Overall Dimensions
1560×460×890 mm
Weight
380 kg
Details Images
Our Advantages
Packaging & Shipping
Certifications
Company Profile


Product Tags: blister packing machine , liquid filling sealing machine , Small Blister Packing Machine , Automatic Blister Packing Machine , plastic blister packaging filling sealing machine , glue packing , Capsule Blister Packing Machine , Pharmaceutical Blister Packing Mac
