DPB-250 Pharmaceutical and food tablets fully automatic blister packaging machine

FOB Price

11800.0 - 16900.0 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port china
Delivery Detail:25 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	NOAH	Place of Origin:	China	Model Number:	DPB250
Certification:	CE	After-sales Service Provided:	Overseas service center available	Warranty:	1years
Weight:	1600kg	Dimension(LWH):	27107201600	Power:	380V/220V
Condition:	New	Automatic Grade:	Automatic

Product Description

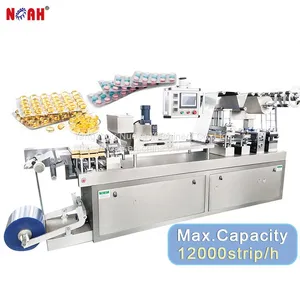

DPB-250 Pharmaceutical and food tablets fully automatic blister packaging machine

Product Paramenters

Model	DPB-250
Cutting Frequency(times/min)	6-35(I) 20-60(II)
Capacity (strip/h)	8400(I) 12000(II)
Max shaping areas and depth(mm)	24016026
Stroke(mm)	20-120(can be manufactured as user`s requirements)
Standard Sheet(mm)	80*57(can be manufactured as user`s requirements)
Air Pressure(kw)	0.4-0.6
Total power	380V/220V 50Hz 6kw
Pressure(kw)	1.5
PVC hard pieces(mm)	0.15-0.5*250
PTP Aluminum Foil(mm)	0.02-0.035*250
Dialysis Paper(mm)	50-100g*250
Mould Cooling	tap water or back water
Overall Dimensions(mm)	27107201600
Weight(kg)	1600

DPB-250 Pharmaceutical and food tablets fully automatic blister packaging machine is a latest high-precision medicine packing machine in current pharmacy industry. This DPB-250 Pharmaceutical and food tablets fully automatic blister packaging machine is widely used for capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry, for injector, syringes, pins, small component etc. In electron or hardware industry as all kind of shapes of ALU-ALU, ALU-plastic, paper-plastic combined sealing packing. Applications: 1. The key electric appliance of his machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer`s requirement. 2. Machine-tool track type of casting machine-base, taken these processing like backfire, maturing, high benchmark and without distortion. 3. Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving. 4. Stroke can be adjust freely, widely used, ease of operation, stable running. 5. It adapts up and down net pattern concavo-convex to conjugate, multi-step air cylinder, double-heat sealing, quality sealing.
