DPB-320 Fully Automatic Flat Plate Blister Packaging Machine For Tablet

DPB-320 Fully Automatic Flat Plate Blister Packaging Machine For Tablet photo-1

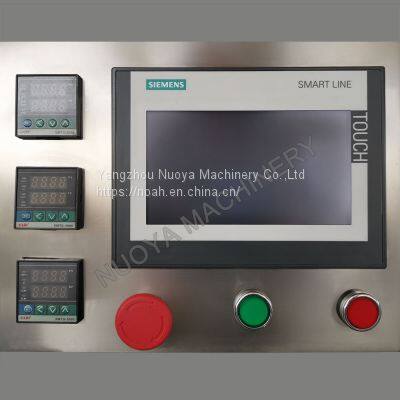

DPB-320 Fully Automatic Flat Plate Blister Packaging Machine For Tablet photo-2

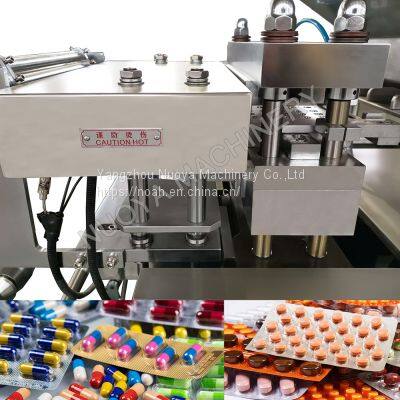

DPB-320 Fully Automatic Flat Plate Blister Packaging Machine For Tablet photo-3

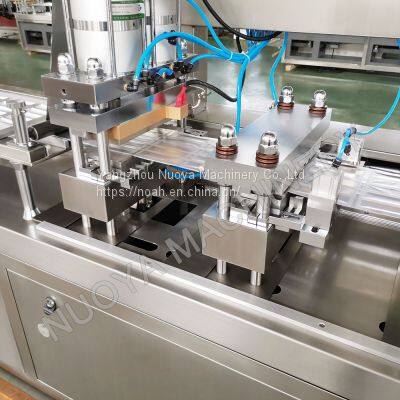

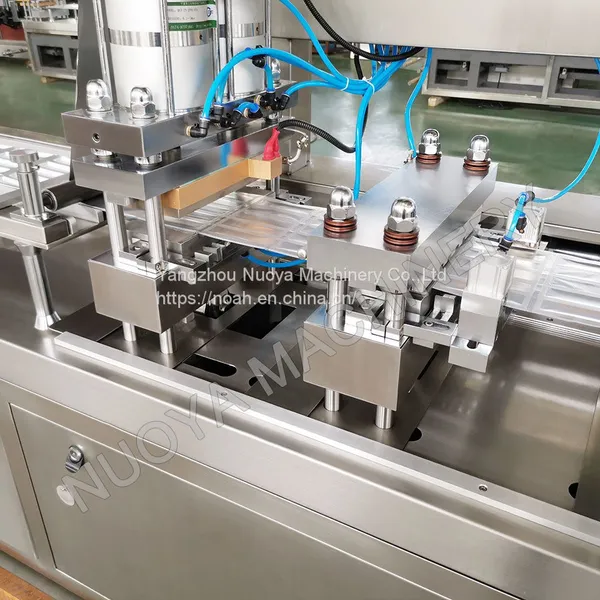

DPB-320 Fully Automatic Flat Plate Blister Packaging Machine For Tablet photo-4

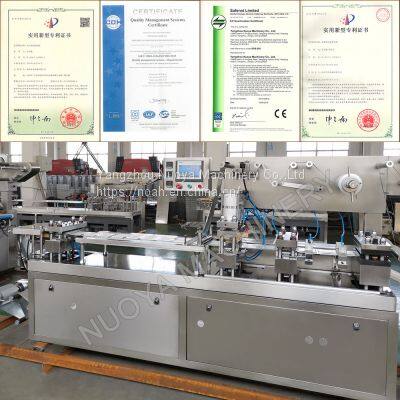

DPB-320 Fully Automatic Flat Plate Blister Packaging Machine For Tablet photo-5
US$ 1 - 19000.0 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NOAH
Place of Origin:
China
Model Number:
DPB320
Payment & Shipping
Payment Methods:
Port of Shipment:
china shenzhen shanghai
Delivery Detail:
25 days
Brand Name NOAH
Place of Origin China
Model Number DPB320
Certification CE
After-sales Service Provided Overseas service center available
Warranty 1years
Weight 2200kg
Dimension(L*W*H) 2910*820*1600mm
Voltage 380V/220V
Power 380V/220V 50Hz 8kw
Condition New
Automatic Grade Automatic
DPB-320 Fully Automatic Flat Plate Blister Packaging Machine For Tablet
Products Description
Model
DPB-320
Cutting Frequency(times/min)
20-50 times/min
Capacity (strip/h)
15000 strip/h
(standard blister sheet 80*57)
Max shaping areas and depth(mm)
320*160*26mm
Stroke(mm)
20-120(can be manufactured as user's requirements)
Standard Sheet(mm)
80*57, 80*35, 95*65, 105*42, 105*55mm(can be manufactured as user's requirements)
Air Pressure(kw)
0.5-0.7 Mpa 0.2m3/min
Total power
380V/220V 50Hz 8kw
Pressure(kw)
1.5 kw
PVC hard pieces(mm)
0.15-0.5*320
PTP Aluminum Foil(mm)
0.02-0.035*250
Dialysis Paper(mm)
50-100g*320
Mould Cooling
tap water or recycled water
Overall Dimensions(mm)
2910*820*1600mm
weight
2200kg
Applications: Our DPB-320 Fully Automatic Flat Plate Blister Packaging Machine For Tablet is a latest high-precision medicine packing machine in current pharmacy industry. it is  widely used for packing capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry. it is also widely used in electron or hardware industry as all kind of shapes of ALU-ALU, ALU-plastic, paper-plastic combined sealing packing. Characteristic: 1.The key electric appliance of this machine adapts PLC processor, temperature modular, touch screen to operate. 2.It can be equipped with cursor device etc. as customer's requirement. 3.Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving. 4.Stroke can be adjust freely, widely used, ease of operation, stable running.
