DPB-80 Pharmaceutical Automatic Water Bindered Pills Capsule Blister Packaging Machine

DPB-80 Pharmaceutical Automatic Water Bindered Pills Capsule Blister Packaging Machine photo-1

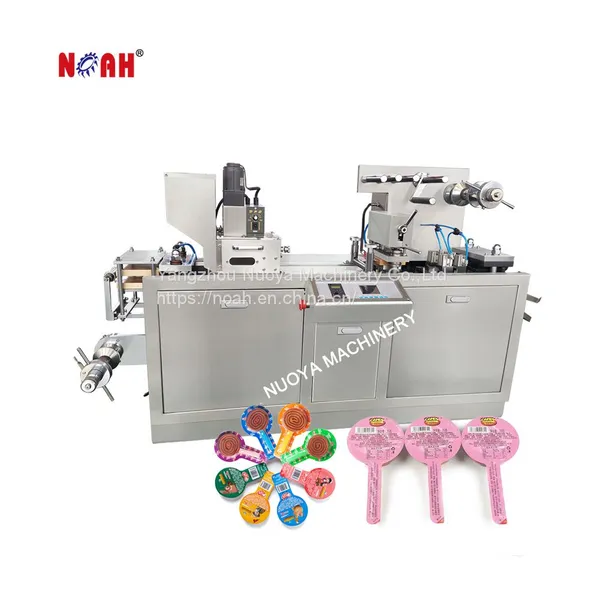

DPB-80 Pharmaceutical Automatic Water Bindered Pills Capsule Blister Packaging Machine photo-2

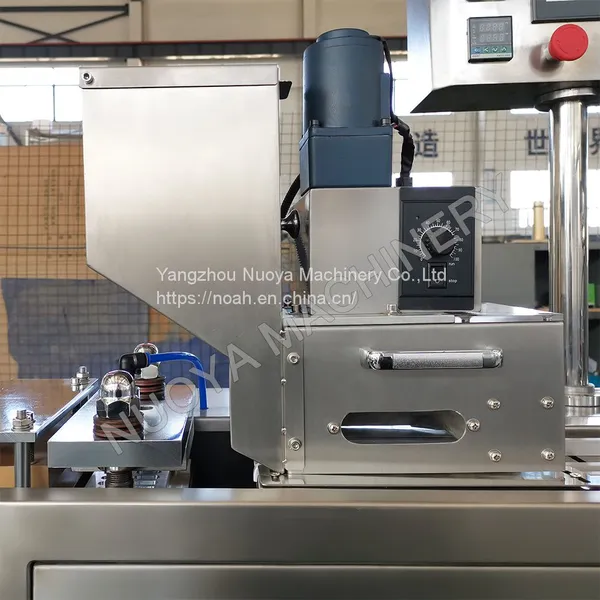

DPB-80 Pharmaceutical Automatic Water Bindered Pills Capsule Blister Packaging Machine photo-3

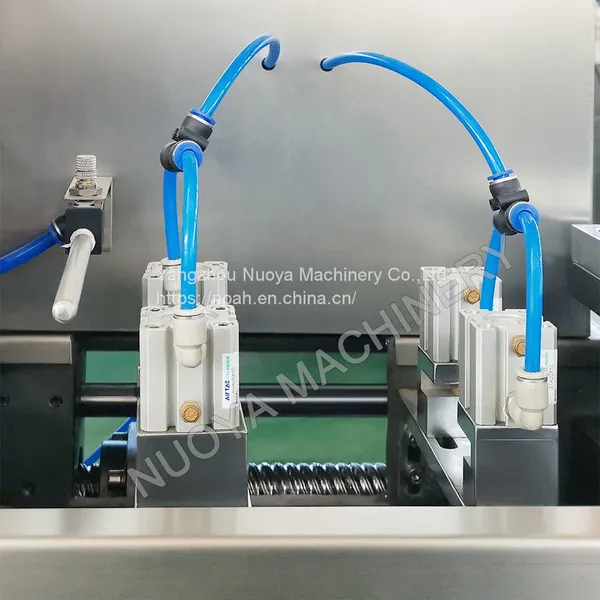

DPB-80 Pharmaceutical Automatic Water Bindered Pills Capsule Blister Packaging Machine photo-4

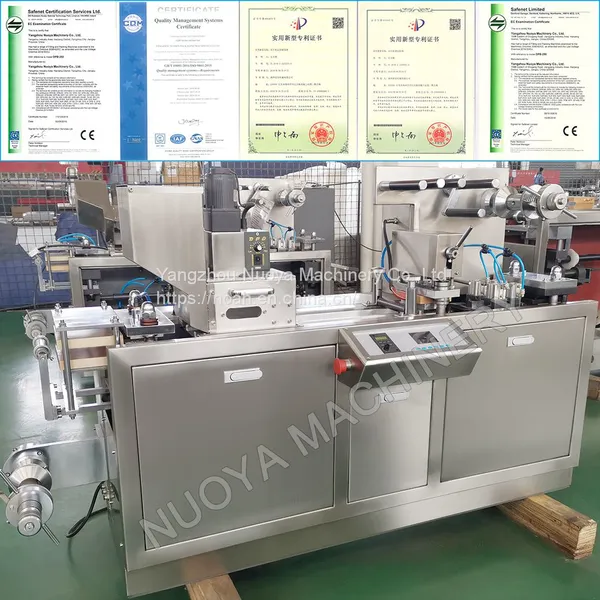

DPB-80 Pharmaceutical Automatic Water Bindered Pills Capsule Blister Packaging Machine photo-5
US$ 2000.0 - 8000.0 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NOAH
Place of Origin:
China
Model Number:
DPB80
Payment & Shipping
Payment Methods:
Port of Shipment:
china shenzhen shanghai
Delivery Detail:
25 days
Brand Name NOAH
Place of Origin China
Model Number DPB80
Certification CE
After-sales Service Provided Overseas service center available
Weight 380 kg
Dimension(L*W*H) 110×60×15 mm
Voltage 380V/220V
Power 0.55 KW
Application Chemical, Food, Machinery & Hardware, Medical
Condition New
Automatic Grade Automatic
DPB-80 Pharmaceutical Automatic Water Bindered Pills Capsule Blister Packaging Machine
Products Description
Applications:The DPB-80 Pharmaceutical Automatic Water Bindered Pills Capsule Blister Packaging Machine is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy operation, stroke adjustable, long durability etc, It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.
Characteristic: 1.The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements. 2.Travel scope can be adjusted. Mould is located by located groove so that it’s easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing. 3.The equipment of trace pressing, batch number printing and scrap-collecting can be chose. 4.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Cutting Frequency
8-35times/min
Capacity
600-2100strip/h
Max shaping areas and depth
110×60×15 mm
Stroke
20-70mm(can be manufactured as user's requirements)
Standard Sheet
80×57,80×35,105×42,105×55 mm
(can be manufactured as user's requirements)
Air Pressure
0.5mpa-0.7mpa0.15m3/min
Total power
380V/220V 50Hz/ 60Hz 1.8kw
Main motor power
0.55 KW
PVC hard pieces
0.15-0.5×80 mm
PTP Aluminum Foil
0.02-0.035×80 mm
Dialysis Paper
50-100g×80 mm
Overall Dimensions
1560×460×890 mm
Weight
380 kg
