DPB-250 Flat Plate Tablet Capsule Liquid Honey Blister Packaging Machine

DPB-250 Flat Plate Tablet Capsule Liquid Honey Blister Packaging Machine photo-1
DPB-250 Flat Plate Tablet Capsule Liquid Honey Blister Packaging Machine photo-2
DPB-250 Flat Plate Tablet Capsule Liquid Honey Blister Packaging Machine photo-3
DPB-250 Flat Plate Tablet Capsule Liquid Honey Blister Packaging Machine photo-4
DPB-250 Flat Plate Tablet Capsule Liquid Honey Blister Packaging Machine photo-5
US$ 5000.0 - 20000.0 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NOAH
Place of Origin:
China
Model Number:
DPB250
Payment & Shipping
Payment Methods:
Port of Shipment:
jiangsu
Delivery Detail:
25 days
Brand Name NOAH
Place of Origin China
Model Number DPB250
Certification CE
After-sales Service Provided Overseas service center available
Warranty 1years
Weight 1600
Dimension(L*W*H) 2710*720*1600
Voltage 380V/220V
Power 380V/220V 50Hz 6kw
Application Chemical, Food, Machinery & Hardware, Medical
Automatic Grade Automatic
Driven Type Other
DPB-250 Flat Plate Tablet Capsule Liquid Honey Blister Packaging Machine
Product Paramenters
Model
DPB-250
Cutting Frequency(times/min)
6-35(I) 20-60(II)
Capacity (strip/h)
8400(I) 12000(II)
Max shaping areas and depth(mm)
240*160*26
Stroke(mm)
20-120(can be manufactured as user`s requirements)
Standard Sheet(mm)
80*57(can be manufactured as user`s requirements)
Air Pressure(kw)
0.4-0.6
Total power
380V/220V 50Hz 6kw
Pressure(kw)
1.5
PVC hard pieces(mm)
0.15-0.5*250
PTP Aluminum Foil(mm)
0.02-0.035*250
Dialysis Paper(mm)
50-100g*250
Mould Cooling
tap water or back water
Overall Dimensions(mm)
2710*720*1600
Weight(kg)
1600

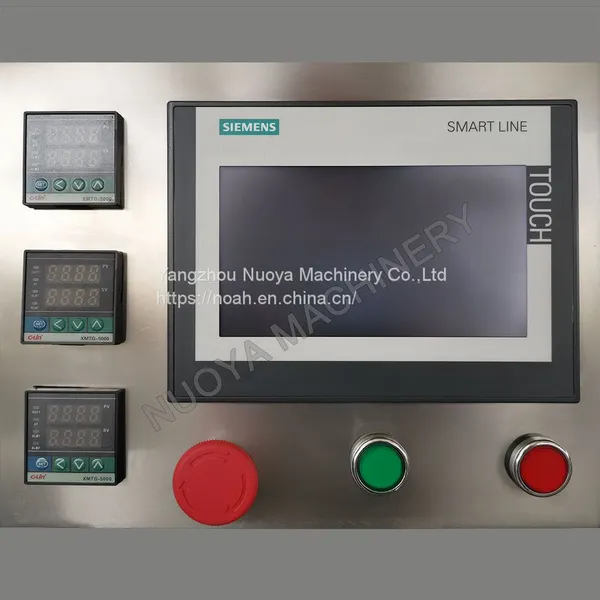

DPB-250 Flat Plate Tablet Capsule Liquid Honey Blister Packaging Machine is a latest high-precision medicine packing machine in current pharmacy industry. This machine is widely used for capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry, for injector, syringes, pins, small component etc. In electron or hardware industry as all kind of shapes of ALU-ALU, ALU-plastic, paper-plastic combined sealing packing. Applications: 1. The key electric appliance of his machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer`s requirement. 2. Machine-tool track type of casting machine-base, taken these processing like backfire, maturing, high benchmark and without distortion. 3. Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving. 4. Stroke can be adjust freely, widely used, ease of operation, stable running. 5. It adapts up and down net pattern concavo-convex to conjugate, multi-step air cylinder, double-heat sealing, quality sealing.
Details Images
Packaging & Shipping
Company Profile


Product Tags: Blister Packaging Machine , Blister Packing Machine , Packaging Machine , Liquid Honey Blister Packaging Machine , Tablet Capsule Blister Packaging Machine , Flat Plate Tablet Blister Packaging Machine
