ZPW21A Automatic Herbal Rotary Medical Tablet Press Machine

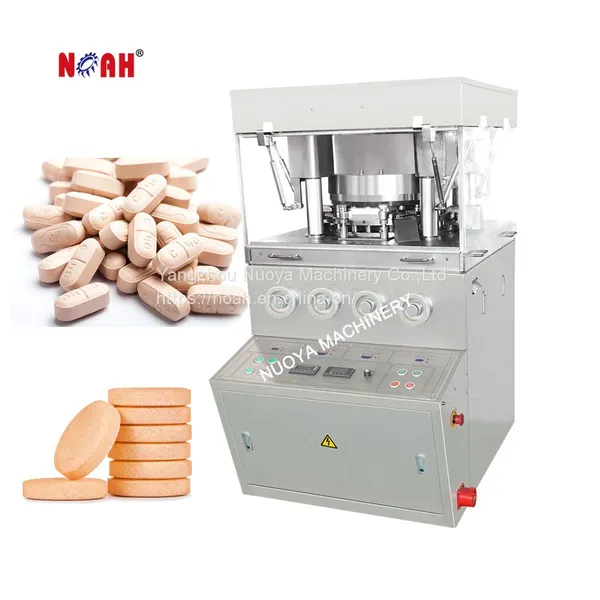

ZPW21A Automatic Herbal Rotary Medical Tablet Press Machine photo-1

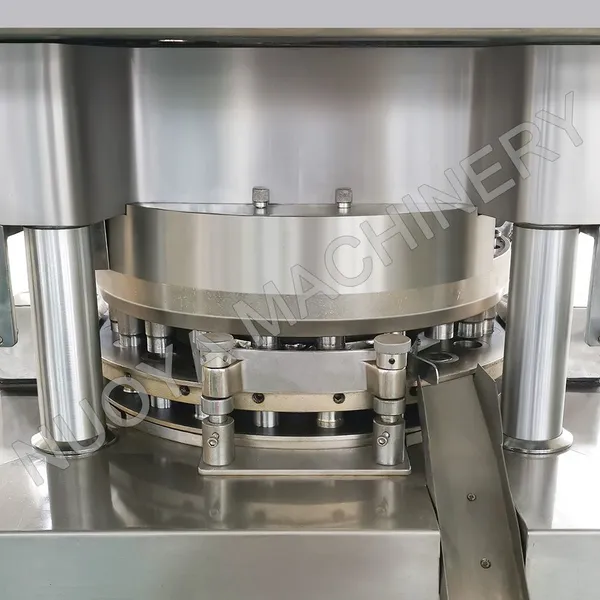

ZPW21A Automatic Herbal Rotary Medical Tablet Press Machine photo-2

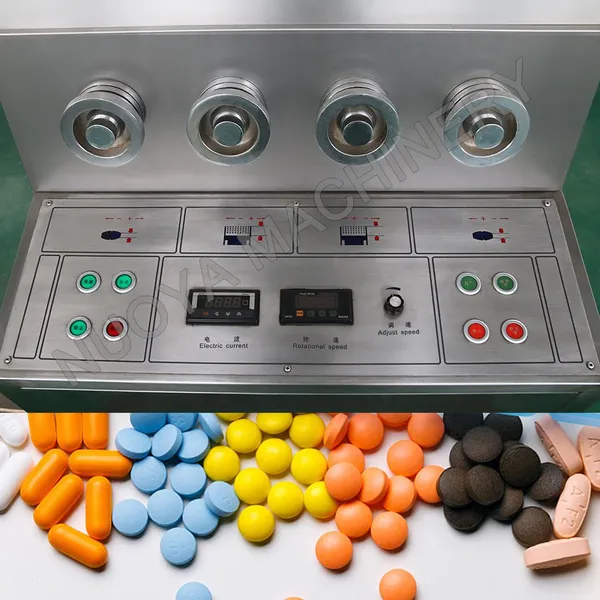

ZPW21A Automatic Herbal Rotary Medical Tablet Press Machine photo-3

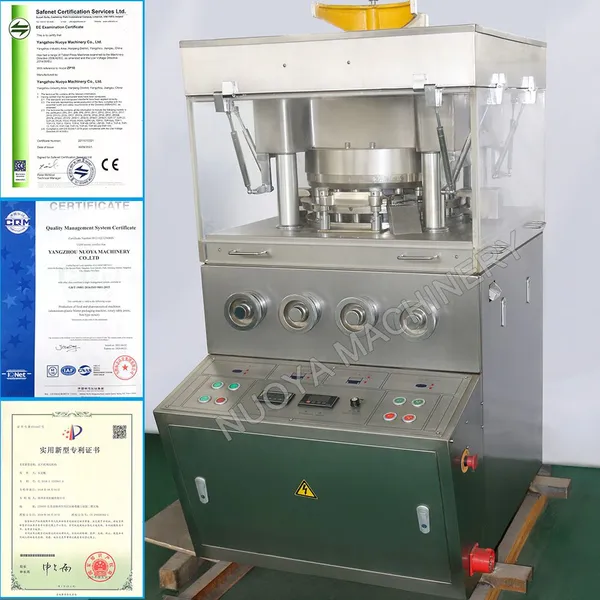

ZPW21A Automatic Herbal Rotary Medical Tablet Press Machine photo-4

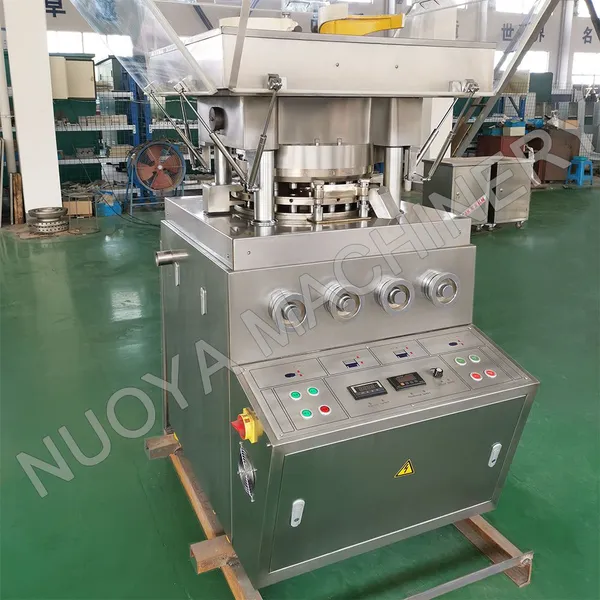

ZPW21A Automatic Herbal Rotary Medical Tablet Press Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
ZPW21A Automatic Herbal Rotary Medical Tablet Press Machine
Products Description
Model
ZPW21A
ZPW21B
Dies
21SET
21SET
Max.Pressure
100KN
100KN
Max.Dia of Tablet
25mm
30mm
Max.Depth of Fill
18mm
29mm
Max. Thickness of Tablet
8mm
14m
Turret Speed
39 r/min
25 r/min
Max.Production Capacity
55000-90000pcs/h
45000-63000pcs/h
Power
7.5kw
11kw
Overall Size
1200*1000*1600mm
1200*1000*1600mm
Net Weight
1800KG
1800KG
ZPW21A Automatic Herbal Rotary Medical Tablet Press Machine is used to make different kinds of granular materials compressed into flake, the advantage is not only can suppress the shaped pieces of various geometric shapes, double-layer tablets, ring-chip and double lettering pieces but also can suppress the round-chip piece. During operation, the depth of filling material and the thickness of the tablets can be adjusted. When overload occurs, the machine stop automatically.ZPW21 is designed to meet GMP standard. The pressing area of an improved type of ZPW21 is sealed with four polymethyl methacrylate doors to be isolated with outside environment. The parts contacting the materials are made of stainless steel or their surface is well antisepticized to avoid pollution.
