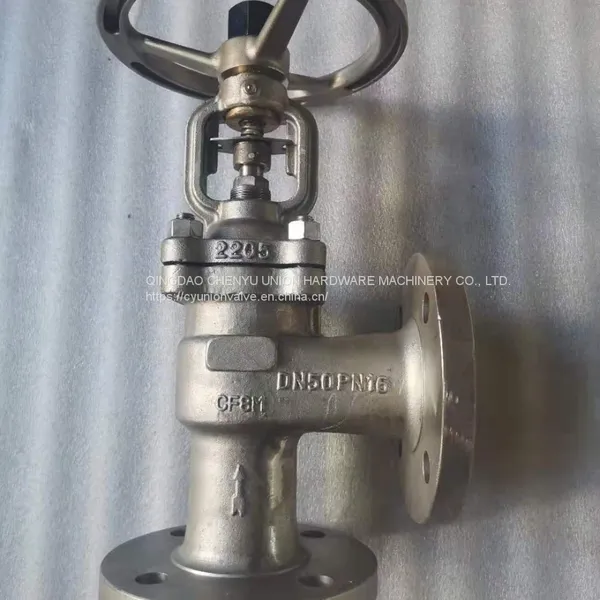

DIN Standard PN16/40 ss BELLOW SEAL ANGLE VALVE

DIN Standard PN16/40 ss BELLOW SEAL ANGLE VALVE thumbnail-1
DIN Standard PN16/40 ss BELLOW SEAL ANGLE VALVE photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
without brand or OEM
Material:
Casting
Structure:
Stop
Contact Supplier Request Quote Chat Now
Qingdao Chenyu Union Hardware Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name without brand or OEM
Material Casting
Structure Stop
Standard or Nonstandard Standard
Pressure High Pressure
Power Other
Media Oil
Temperature of Media High Temperature
ITEM PART NAME  MATERIALS ITEM PART NAME  MATERIALS
1 BODY  1.4408 11 HANDWHEEL C.S
2 DISC  1.4401 12 HANDWHEEL NUT  S.S
3 SPLIT RING  1.4401 13 SHIM  S.S
4 DISC SCREW 1.4401 14 LOCKING SCREW S.S
5 STEM  1.4401 15 EYE BOLT  A193-B8M
6 GASKET  SS316+GRAPHITE 16 NUT  A194-8M
7 BONNET  1.4408 17 PIN  2CR13
8 PACKING  GRAPHITE 18 BOLT  A193-B8M
9 GLAND 1.4408 19 NUT  A194-8M
10 YOKE NUT  COPPER ALLOY


DN  L PN16
D D1 D2 B f N-φ
 H W
15 90 95 65 45 16 2 4-14 210 140
20 95 105 75 58 18 2 4-14 210 140
25 100 115 85 68 18 2 4-14 215 140
32 105 140 100 78 18 2 4-18 215 140
40 115 150 110 88 18 3 4-18 240 160
50 125 165 125 102 20 3 4-18 240 160
65 145 185 145 122 20 3 4-18 255 180
80 155 200 160 138 20 3 8-18 280 200
100 175 220 180 158 20 3 8-18 370 250
125 200 250 210 188 22 3 8-18 390 280
150 225 285 240 212 22 3 8-22 420 300
200 275 340 295 268 24 3 12-22 590 400
250 325 405 355 320 26 3 12-26 730 500
300 375 460 410 378 28 4 12-26 840 500


if you are interested in our product,kindly contact me:

Wechat:cy-unionvalve

info@cyunionvalve.com


Product Tags: BELLOW SEAL ANGLE VALVE , angle valve , din standard , certificate approval valve , pn16 , pn40
