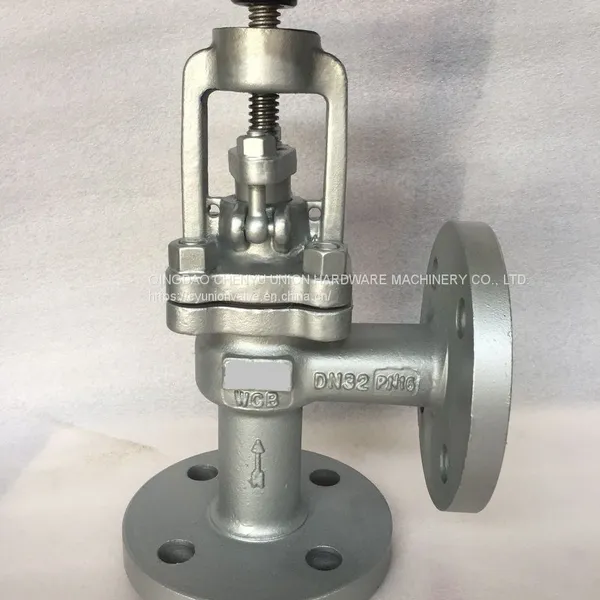

CAST STEEL GLOBE ANGLE VALVE DIN Standard PN16

CAST STEEL GLOBE ANGLE VALVE DIN Standard PN16 thumbnail-1
CAST STEEL GLOBE ANGLE VALVE DIN Standard PN16 photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
without brand or OEM
Material:
Casting
Structure:
Stop
Contact Supplier Request Quote Chat Now
Qingdao Chenyu Union Hardware Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name without brand or OEM
Material Casting
Structure Stop
Standard or Nonstandard Standard
Pressure High Pressure
Power Other
Media Oil
Temperature of Media High Temperature
ITEM PART NAME  MATERIALS ITEM PART NAME  MATERIALS
1 BODY  GS-C25+13CR 11 HANDWHEEL C.S
2 DISC  C22.8+13CR 12 HANDWHEEL NUT C.S
3 SPLIT RING  13CR 13 SHIM  S.S
4 DISC SCREW C22.8+13CR 14 LOCKING SCREW S.S
5 STEM  2CR13 15 EYE BOLT  A193-B7
6 GASKET  SS304+GRAPHITE 16 NUT  A194-2H
7 BONNET  GS-C25+13CR 17 PIN  C.S
8 PACKING  GRAPHITE 18 BOLT  A193-B7
9 GLAND GS-C25 19 NUT  A194-2H
10 YOKE NUT  GGG40.3


DN  L PN16
D D1 D2 B f N-φ
 H W
15 90 95 65 45 16 2 4-14 190 140
20 95 105 75 58 18 2 4-14 190 140
25 100 115 85 68 18 2 4-14 205 160
32 105 140 100 78 18 2 4-18 205 160
40 115 150 110 88 18 3 4-18 245 180
50 125 165 125 102 20 3 4-18 250 180
65 145 185 145 122 20 3 4-18 270 200
80 155 200 160 138 20 3 8-18 315 250
100 175 220 180 158 20 3 8-18 370 300
125 200 250 210 188 22 3 8-18 430 350
150 225 285 240 212 22 3 8-22 470 400


if you are interested in our product,kindly contact me:

Wechat:cy-unionvalve

info@cyunionvalve.com


Product Tags: cast steel globe valve , globe angle valve , din standard , certificate approval valve , pn16
