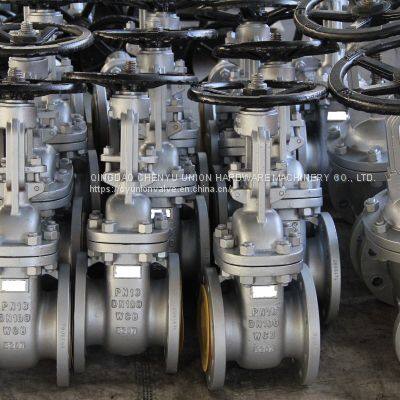

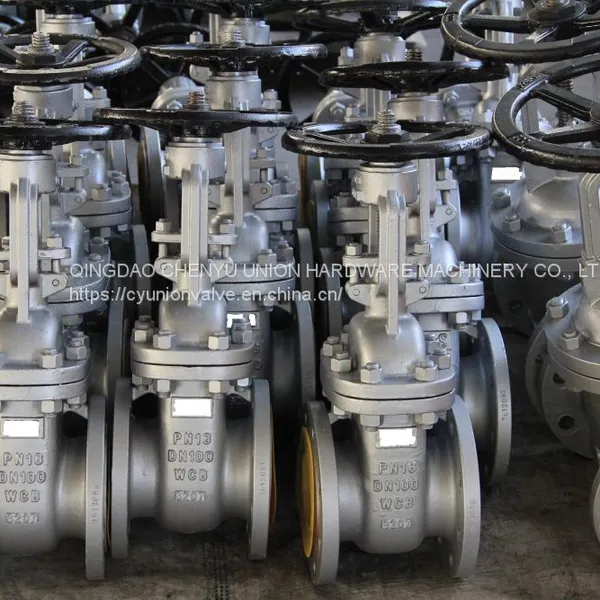

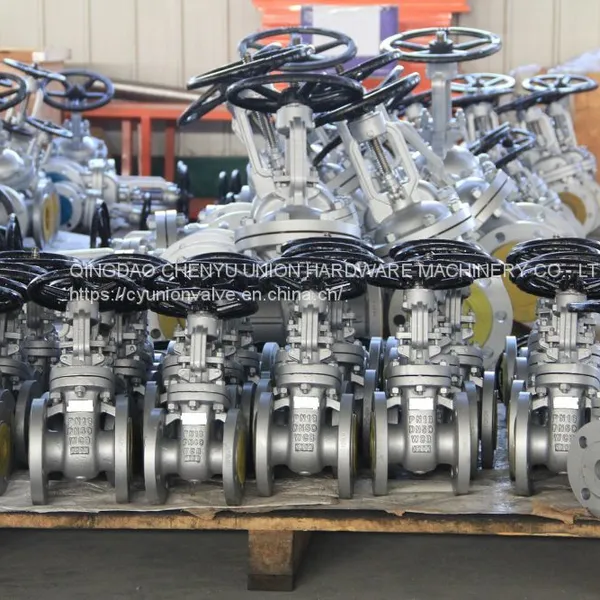

Help CenterRISING STEM GATE VALVE DIN Type
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
without brand or OEM
Material:
Casting
Structure:
Gate
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIN RISING STEM GATE VALVE PN25NegotiableMOQ: 20 Pieces -
DIN/BS/ANSI Standard Carbon Steel Gate ValveNegotiableMOQ: 20 Pieces
-
Carbon Steel Rising Stem Gate Valve DIN/BS/ANSI StandardNegotiableMOQ: 20 Pieces
-
150LB GATE VALVENegotiableMOQ: 20 Pieces
-
ANSI WCB GATE VALVENegotiableMOQ: 20 Pieces
Brand Name
without brand or OEM
Material
Casting
Structure
Gate
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Other
Media
Oil
Temperature of Media
High Temperature
technical information:
1. DESIGN AND MANUFACTURE:API 600
2. FACE TO FACE DIMENSIONS:ASME B16.10
3. END FLANGE DIMENSIONS:ASME B16.5
material table:
| ITEM | PART NAME | MATERIALS | ITEM | PART NAME | MATERIALS |
| 1 | BODY | ASTM A216 WCB | 12 | RERANING NUT | STEEL |
| 2 | BONNET | ASTM A216 WCB | 13 | GREASE NIPPLE | ASSEMBLE |
| 3 | BONNET BOLT | ASTM A193 B7 | 14 | GLAND FLANGE | ASTM A216 WCB |
| 4 | BONNET NUT | ASTM A194 2H | 15 | GLAND | 2CR13 |
| 5 | GLAND EYE BOLT | ASTM A193 B7 | 16 | PACKING | GRAPHITE |
| 6 | GLAND NUT | ASTM A194 2H | 17 | BACKSET BUSHING | 2CR13 |
| 7 | WASHER | STEEL | 18 | STEM | 2CR13 |
| 8 | PIN | STEEL | 19 | GASKET | SS304+GRAPHITE |
| 9 | HANDWHEEL | DUCTILE IRON | 20 | DISC | ASTM A216 WCB+13CR |
| 10 | HANDWHEEL NUT | STEEL | 21 | SEAT | ASTM A105+13CR |
| 11 | STEM NUT | DUCTILE IRON |
dimension:
| NB | d | L | D | W | R | t | f | D0 | H | N-φh |
| 2" | 50.8 | 178 | 150 | 120.7 | 92.1 | 14.3 | 2 | 200 | 395 | 4-19 |
| 2-1/2" | 63.5 | 190 | 180 | 139.7 | 104.8 | 15.9 | 2 | 200 | 437 | 4-19 |
| 3" | 76.2 | 203 | 190 | 152.4 | 127 | 17.5 | 2 | 250 | 465 | 4-19 |
| 4" | 101.6 | 229 | 230 | 190.5 | 157.2 | 22.3 | 2 | 280 | 560 | 8-19 |
| 5" | 127 | 254 | 255 | 215.9 | 185.7 | 22.3 | 2 | 280 | 661 | 8-22 |
| 6" | 152.4 | 267 | 280 | 241.3 | 215.9 | 23.9 | 2 | 315 | 759 | 8-22 |
| 8" | 203.2 | 292 | 345 | 298.5 | 269.9 | 27 | 2 | 350 | 960 | 8-23 |
| 10" | 254 | 330 | 405 | 362 | 323.8 | 28.6 | 2 | 400 | 1155 | 12-26 |
| 12" | 304.8 | 356 | 485 | 431.8 | 381 | 30.2 | 2 | 450 | 1357 | 12-26 |
| 14 | 336.6 | 381 | 535 | 476.3 | 412.8 | 33.4 | 2 | 500 | 1500 | 12-29 |
| 16 | 387.4 | 406 | 595 | 539.8 | 469.9 | 35 | 2 | 560 | 1698 | 16-29 |
| 18 | 438.2 | 432 | 635 | 577.9 | 533.4 | 38.1 | 2 | 600 | 1980 | 16-32 |
| 20 | 489 | 457 | 700 | 635 | 584.2 | 41.3 | 2 | 700 | 2220 | 20-32 |
| 24 | 590.6 | 508 | 815 | 749.3 | 692.2 | 46.1 | 2 | 800 | 2610 | 20-35 |
