Lug /semi Lug Butterfly Valves With EPDM PTFE PFA Rubber Lining API/ANSI/DIN/JIS/ASME/Awwa

Qingdao Chenyu Union Hardware Machinery Co., Ltd.
Lug /semi Lug Butterfly Valves With EPDM PTFE PFA Rubber Lining API/ANSI/DIN/JIS/ASME/Awwa thumbnail-1
Lug /semi Lug Butterfly Valves With EPDM PTFE PFA Rubber Lining API/ANSI/DIN/JIS/ASME/Awwa thumbnail-2
Lug /semi Lug Butterfly Valves With EPDM PTFE PFA Rubber Lining API/ANSI/DIN/JIS/ASME/Awwa thumbnail-3
Lug /semi Lug Butterfly Valves With EPDM PTFE PFA Rubber Lining API/ANSI/DIN/JIS/ASME/Awwa photo-1

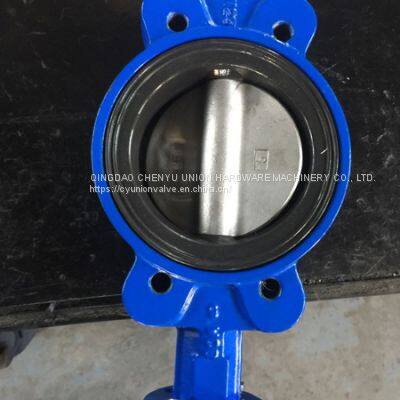

Lug /semi Lug Butterfly Valves With EPDM PTFE PFA Rubber Lining API/ANSI/DIN/JIS/ASME/Awwa photo-2

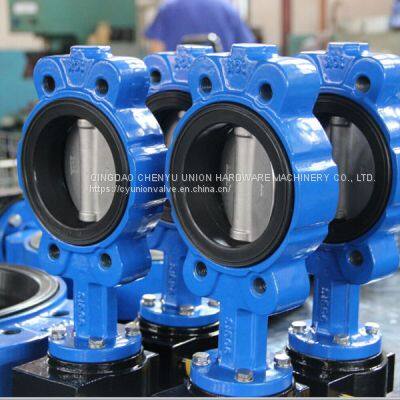

Lug /semi Lug Butterfly Valves With EPDM PTFE PFA Rubber Lining API/ANSI/DIN/JIS/ASME/Awwa photo-3
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
without brand or OEM
Material:
Casting
Structure:
Butterfly
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name without brand or OEM
Material Casting
Structure Butterfly
Standard or Nonstandard Standard
Pressure High Pressure
Power Other
Media Oil
Temperature of Media High Temperature

Main Material:

NameMaterial
BodyCast Iron  Ductile Iron  Carbon Steel  Stainless Steel  AL-Bronze
DiscDuctile Iron  Carbon Steel Stainless Steel  AL-Bronze
ShaftStainless Steel  Monel K500
SeatBUNA  NBR  EPDM  VITON  PTFE  HEPDM  Neoprene  Hypalon Natural rubber


Technical Parameters:


SizeDN32-DN600DN650-DN2000
Working pressure16Bar10Bar
Shell24Bar15Bar
Seal(Air)6Bar6Bar
Operating Temperature-45ºC~+150ºC
Operating EnvironmentBallast and bilge system          Chemical processing

Desalination plants   Drilling rigs    Drinking water

Dry powder     Food and beverage     Gas plants

HAVC  Mining industry  Paper industry    Sand handling     Seawater    Sugar industry

Thermo technical water treatment   Waste water
Driving  methodHand  Lever  Worm Gear  Electric  Pneumatic
























































































































































































































































































DIMENSIONS









Unit:mm
DNABC2ISO5211D2D3n-1D1n-&H
mmin
502140804212.6F0565504-81204-159011
652 1/21508944.712.6F0565504-81404-159011
8031589545.212.6F0565504-81504-199011
100417611452.115.77F0790704-101754-194511
125619012754.418.92F0790704-102104-194514
150620113955.818.92F0790704-102404-194514
200823517560.622.1F101251024-122904-234517
2501026520365.628.45F101251024-123554-233022
3001230524276.931.6F101251024-124004-233022
3501436826776.531.6F101251024-124454-253022
4001640030985.733.15F141751404-185104-2522.527
45018422328104.637.95F141751404-185654-2522.527
50020480361130.2841.12F141751404-186204-251836
60024562459151.3650.62F253002548-187304-271836



Product Tags: lug /semi lug Butterfly Valves , concentric butterfly valve , rubber lining butterfly valve
