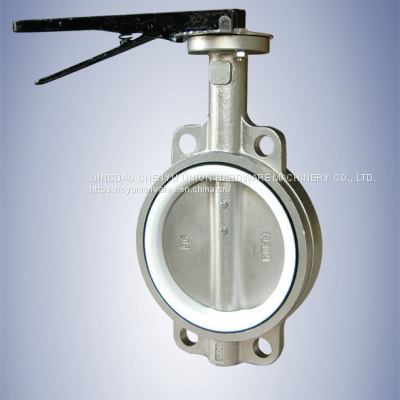

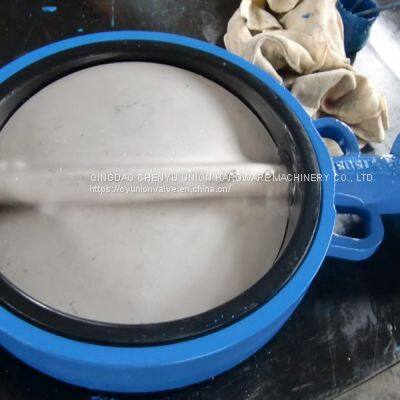

Resilient Seated Double Flanged Eccentric Butterfly Valve
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
without brand or OEM
Material:
Casting
Structure:
Butterfly
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lug /semi Lug Butterfly Valves With EPDM PTFE PFA Rubber Lining API/ANSI/DIN/JIS/ASME/AwwaNegotiableMOQ: 20 Pieces -
Resilient Seated Concentric Type Ductile Cast Iron Industrial Control Lug Butterfly Valves With EPDM PTFE PFA Rubber Lining API/ANSI/DIN/JIS/ASME/AwwaNegotiableMOQ: 20 Pieces
-
Resilient Seated Concentric Type Ductile Cast Iron Industrial Control Wafer Butterfly Valves With EPDM PTFE PFA Rubber Lining API/ANSI/DIN/JIS/ASME/AwwaNegotiableMOQ: 20 Pieces
-
150LB GATE VALVENegotiableMOQ: 20 Pieces
-
ANSI WCB GATE VALVENegotiableMOQ: 20 Pieces
Brand Name
without brand or OEM
Material
Casting
Structure
Butterfly
Standard or Nonstandard
Standard
Pressure
High Pressure
Media
Water
Temperature of Media
Low Temperature
Main Material:
| Name | Material |
| Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
| Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
| Shaft | Stainless Steel Monel K500 |
| Seat | BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber |
Technical Parameters:
| Size | DN32-DN600 | DN650-DN2000 |
| Working pressure | 16Bar | 10Bar |
| Shell | 24Bar | 15Bar |
| Seal(Air) | 6Bar | 6Bar |
| Operating Temperature | -45ºC~+150ºC | |
| Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |
| Driving method | Hand Lever Worm Gear Electric Pneumatic | |
Dimension
| Size | A | B | C | ΦF | ΦD | 4-ΦN | Φd | H | M1 | ANSI 150 | ||
| ΦJ | Φk | n-Φk1 | ||||||||||
| 3" | 146 | 89 | 127 | 90 | 70 | 10 | 12.7 | 32 | 3.18 | 191 | 152.5 | 4-19 |
| 4" | 177 | 112 | 127 | 90 | 70 | 10 | 15.9 | 32 | 4.78 | 229 | 190.5 | 8-19 |
| 6" | 203 | 140 | 127 | 90 | 70 | 10 | 25.4 | 32 | 7.94 | 279 | 241.5 | 8-22 |
| 8" | 235.5 | 170 | 152 | 125 | 102 | 12 | 28.6 | 45 | 7.94 | 343 | 298.5 | 8-22 |
| 10" | 267 | 200 | 203 | 125 | 102 | 12 | 34.9 | 45 | 12.7 | 406 | 362 | 12-25 |
| 12" | 312 | 230 | 203 | 150 | 125 | 14 | 38.1 | 45 | 12.7 | 483 | 432 | 12-25 |
| 14" | 343 | 256 | 203 | 150 | 125 | 14 | 44.5 | 45 | 12.7 | 533 | 476 | 12-29 |
| 16" | 372 | 299 | 203 | 210 | 165 | 23 | 50.8 | 50 | 12.7 | 597 | 539.5 | 16-29 |
| 18" | 402 | 327 | 203 | 210 | 165 | 23 | 57.2 | 50 | 15.88 | 635 | 578 | 16-32 |
| 20" | 437 | 352 | 203 | 210 | 165 | 23 | 63.5 | 60 | 15.88 | 699 | 635 | 20-32 |
| 24" | 498.5 | 420 | 203 | 210 | 165 | 23 | 76.2 | 70 | 15.88 | 813 | 749.5 | 20-35 |
