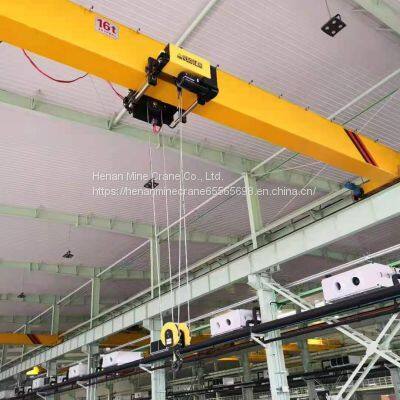

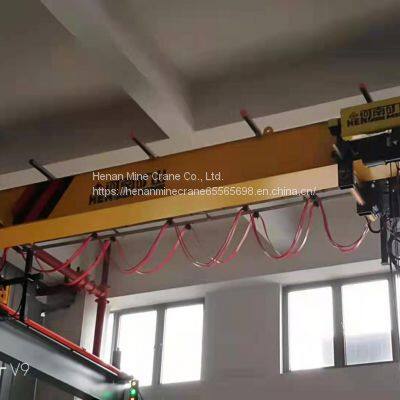

Top Quality Remote Control Single Beam European Style E0T Crane
Product Description：
European single girder overhead crane based on bringing in and assimilating foreign advanced technology, this type of crane takes modular design theories as guidance, uses modern computer technology as means, introduces optimized and reliable design methods, Which is a new type of crane made by employing import configuration, new material and technology and has features in light-weight, generalizing energy-conservation and environmental protection, maintenance-free and high technology content design, production, and inspection carry out the last issued relevant national standard, equivalently adopts some foreign criteria including FEM, DIN and IEC.
Parameter:
European type single girder overhead crane | |||||||
Lifting capacity |
1 ton |
2 ton |
3 ton |
5 ton |
10 ton |
16 ton |
20 ton |
Span |
7m-31.5m |
||||||
Lifting height |
6/9/12/18/24/30m |
||||||
Lifting speed |
0.8/5 m/min |
0.8/5 m/min |
0.8/5 m/min |
0.8/5 m/min |
0.8/5 m/min |
0.66/4 m/min |
0.66/4 m/min |
Traveling speed |
2-20 m/min |
2-20 m/min |
2-20 m/min |
2-20 m/min |
2-20 m/min |
2-20 m/min |
2-20 m/min |
Total power |
4.58KW |
4.58-4.94KW |
7.84-8.24KW |
12.66KW |
19.48-20.28KW |
19.48-20.28KW |
|
Total weight |
958-3774kg |
1625-4016kg |
1802-4855kg |
2318-5754kg |
3260-7975kg |
4284-10065kg |
4944-8500kg |
Working class |
A5 |
A5 |
A5 |
A5 |
A5 |
A5 |
A5 |
Mechanical parts
1.Single welding box girder, beam deflection with DIN/FEM standard
2.Steel Material: Chinese standard Q235B and Q345B
3.Trolley rail is made of high strength hot rolled flat steel (16 Mn)
4.Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster
5.The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine
6.The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate
Safety system
1.Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible
2.Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device
3.Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling
4.All movements can be switched off by actuating the emergency-off switch at the control station via a main contact
5.High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling
6.Safety hook latch used for avoiding the lifted material out off from the hook
Design standard
1.Design rules for cranes GB/T3811-2008
2.Safety rules for lifting appliances GB6067.1-2010
3.General Bridge Crane GB/T14405-2011
4.General Gantry Crane GB/T14406-2011
5.Overhead crane and gantry crane manufacturing and tolerances of rail installation GB/T10183-2005
6.Crane test specification and procedures GB/T5905-1986
