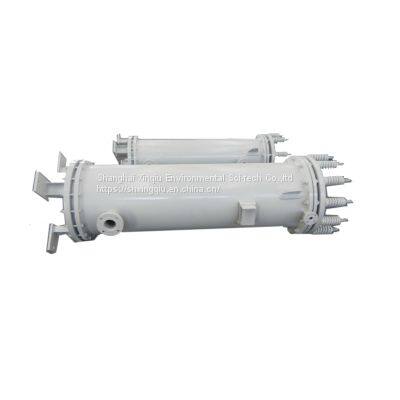

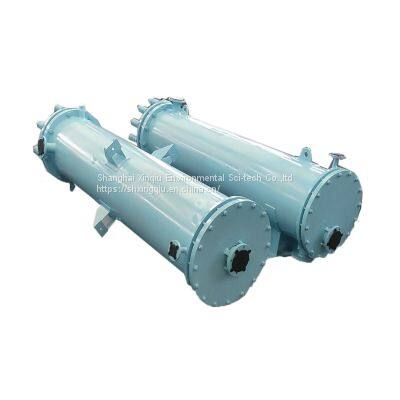

Graphite Shell and Tube Heat Exchange
US$ 300 - 500
MOQ: 10 Square Meters
Key Specifications
Get Latest Price
Brand Name:
XQ
Place of Origin:
China
Model Number:
GH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days
Related Products
-
Graphite Block Heat ExchangeUS$ 300 - 500MOQ: 10 Square Meters -
Hydrochloric Acid Synthesis FurnaceUS$ 50000 - 550000MOQ: 1 Set
-
Graphite Sulfuric Acid DiluteUS$ 30000 - 500000MOQ: 1 Set
-
Graphite Rectangle Heat ExchangeUS$ 300 - 500MOQ: 10 Square Meters
-
Air Conditioning Heat ExchangerNegotiableMOQ: 10 Pieces
Brand Name
XQ
Place of Origin
China
Model Number
GH
Type
Heat Exchanger
Certification
ASME
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 months
Weight
1000-500000kg
Dimension(L*W*H)
1000x1000x6000mm
Condition
New
Product Type
Other
Graphite shell and tube heat exchange
STRUCTURE FEATURES
This product is mainly composed of the upper and lower shell covers,fixed tube sheet, floating tube sheet, phenolic resin extruded heat exchange tube, shell,etc. And has advantages of compact structure and small fluid resistance; however, It is slightly superior to block-hole type in the aspect of temperature resistance and withstand voltage. It applies to smaller vibration occasions without strong shock. It is widely used in phosphoric acid, phosphate and compound fertilizer, acetate fiber, steel and other industries and can be used for heating, cooling and condensation.
TECHNICAL CHARACTERISTIC
| Name | Process side | Service side |
| Operation pressure | 0.6MPa | 0.6MPa |
| Max operating Temp | 130℃ | 130℃ |
| Heating exchanger area | 2-1500m2 | |
| Tube diameter | Φ50/Φ36, Φ37/Φ25, Φ32/Φ22 |
