Graphite block heat exchange
Structure Features

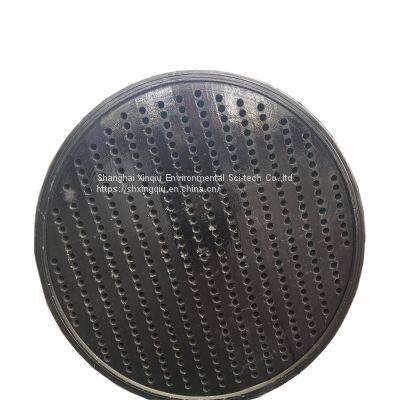

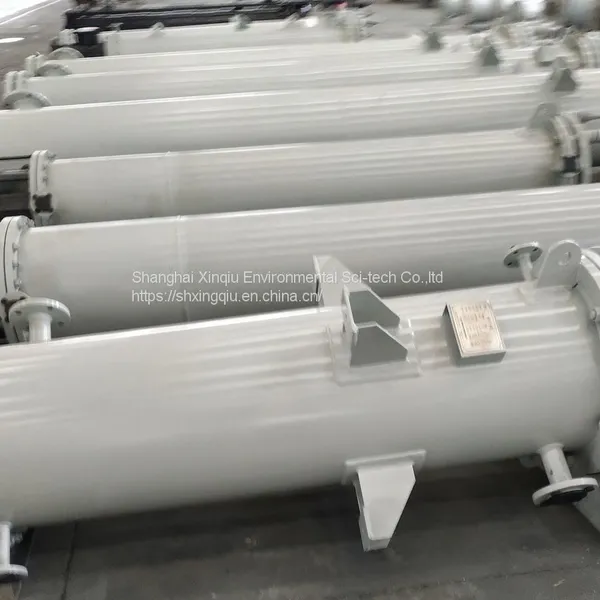

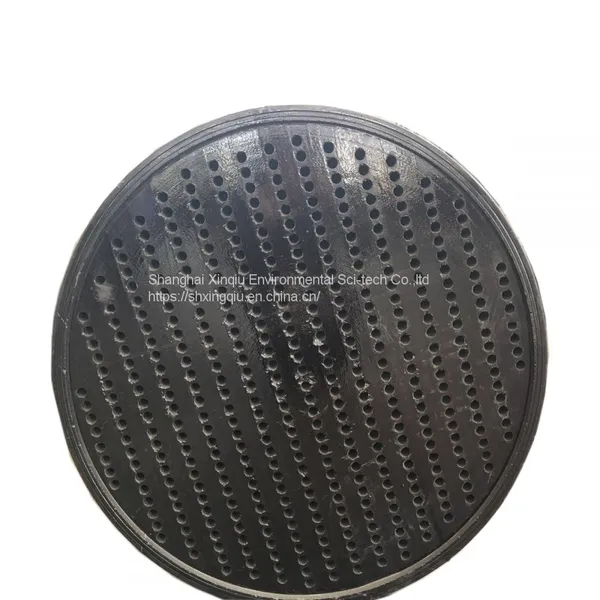

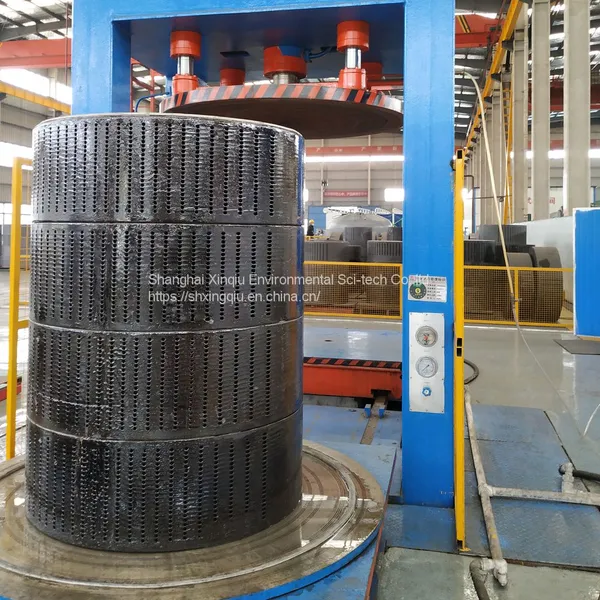

It’s mainly used to me round blocks and top & bottom heads .Between each block is anti-corrosive gasket(O-ring PTFE rubber or PTFE gasket) The metal shell and graphite head is sealed by O ring, which allows free slide between
steel shell and graphite. Changes in length due to thermal expansion or contraction are compensated for by helical springs. Axial direction and radical direction round hole passages are distributed in the heat
exchanger.If the medium in tube pass is corrosive medium, the steel shell must be painted or lined with an anti-corrosive layer.When vapor medium is condensing, add one gas-liquid separator must be added on
the bottom of equipment to separate gas and liquid.The material of gas-liquid separator: graphite, steel lined or PTFE. Different separator can be chosen by different working condition.
TECHNICAL CHARACTERISTIC
| Name | Process side | Service side |
| Operation pressure | -0.1-1.0MPa | -0.1-1.0MPa |
| Max operating Temp | 220℃ | 220℃ |
| Medium | Corrosive medium | Water, Steam, Conduction Oil |
| Heating exchanger area | 2-1000m2 | |
| Hole diameter | 10,12,16,18,20 or larger |
