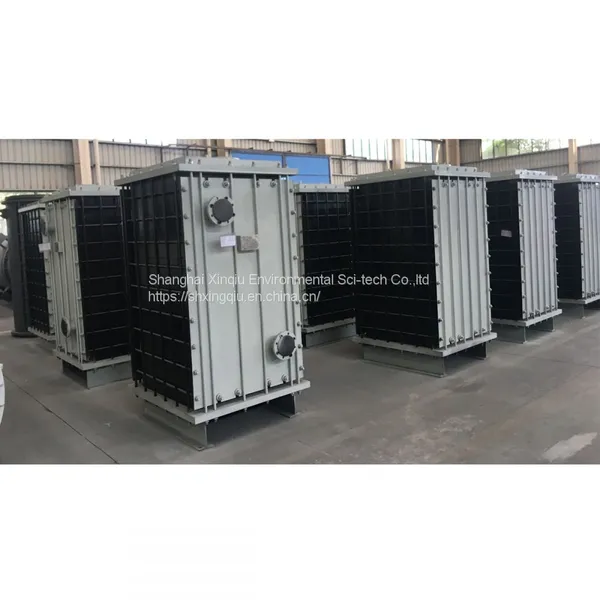

Graphite Rectangle Heat Exchange
US$ 300 - 500
MOQ: 10 Square Meters
Key Specifications
Get Latest Price
Brand Name:
XQ
Place of Origin:
China
Model Number:
JSK
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Graphite Shell and Tube Heat ExchangeUS$ 300 - 500MOQ: 10 Square Meters -
Graphite Block Heat ExchangeUS$ 300 - 500MOQ: 10 Square Meters
-
Hydrochloric Acid Synthesis FurnaceUS$ 50000 - 550000MOQ: 1 Set
-
Graphite Sulfuric Acid DiluteUS$ 30000 - 500000MOQ: 1 Set
-
Hastelloy B-3 for Hydrochloric Acid and Strong Acid Industrial ApplicationsUS$ 28.5 - 68.8MOQ: 100 Kilograms
Brand Name
XQ
Place of Origin
China
Model Number
JSK
Type
Heat Exchanger
Certification
ASME
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 months
Weight
1000kg-4000kg
Dimension(L*W*H)
1000*1000*1300
Condition
New
Product Type
Other, chemical equipment
Graphite rectangle heat exchange
Structure Features
It is composed of graphite heads, graphite heat exchanging blocks,gaskets, metal cover and side plates, which are fixed together with enforced sealing structure. The advantage: simple and compact structure; excellent resistance to thermal shock; nice anti-corrosive resistance; good thermal conductivity and convenient maintenance.
Advantage
Modular design
Good thermal conductivity
Excellent resistance to thermal shock
Convenient maintenance
Multi-flow proceed design
Used in fine chemical, pesticide industries
TECHNICAL CHARACTERISTIC
| Name | Process side | Service side |
| Operation pressure | 0-0.45MPa | 0-0.5MPa |
| Max operating Temp | 200℃ | 200℃ |
| Medium Corrosive medium | Corrosive medium | Corrosive medium |
| Heating exchanger area | 5-180m2 |
