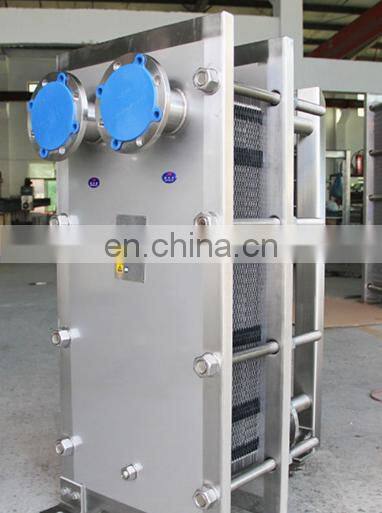

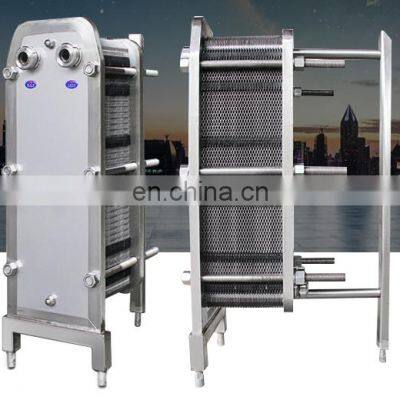

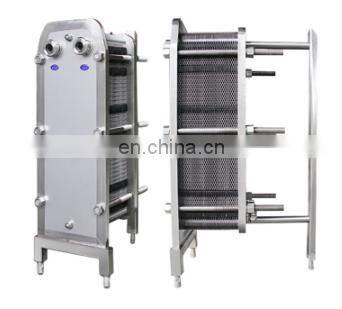

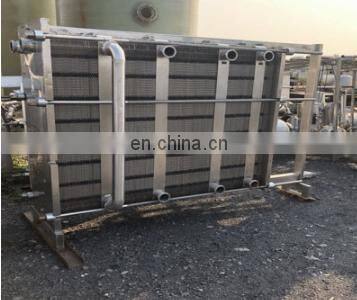

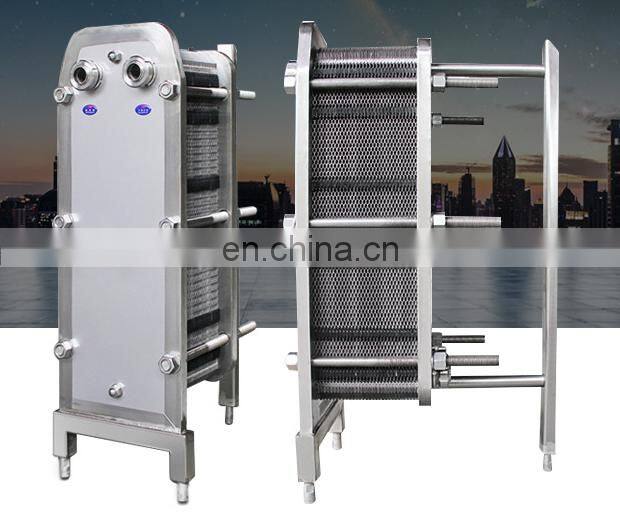

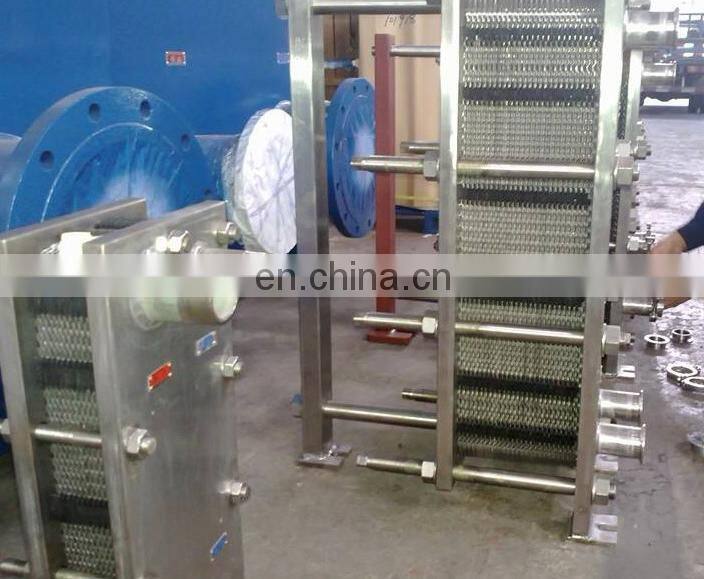

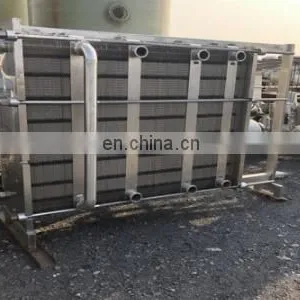

Stainless Steel Plate Heat Exchanger Food Heating Heat Exchanger Plate Hot Water Circulation Cooler
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Ice Cream Production LineNegotiableMOQ: 1 Set -
Margarine Shortening Ghee Production LineNegotiableMOQ: 1 Set
-
Factory Margarine Shortening Ghee Production Line Processing Plant Ghee Making Machine PriceNegotiableMOQ: 1 Set
-
Factory Margarine Shortening Ghee Making Machine Processing Plant Production LineNegotiableMOQ: 1 Set
-
Milk Cream Seperation MachineNegotiableMOQ: 1 Set

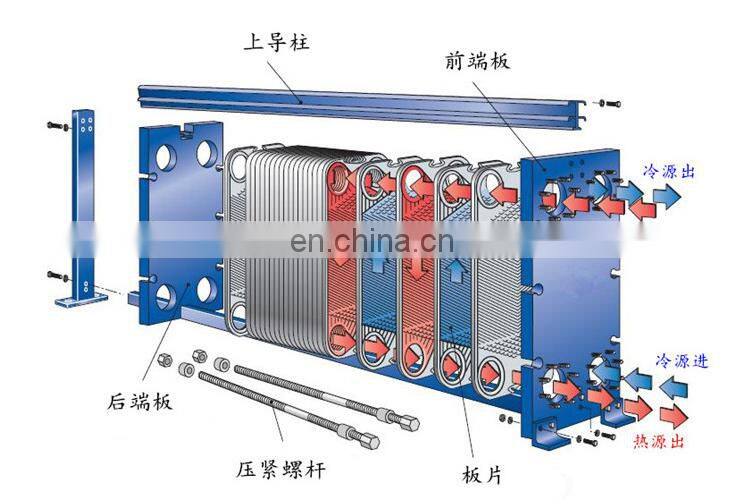

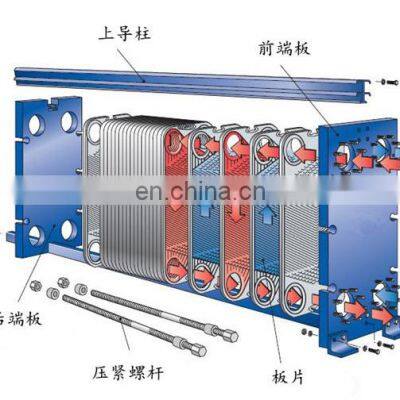

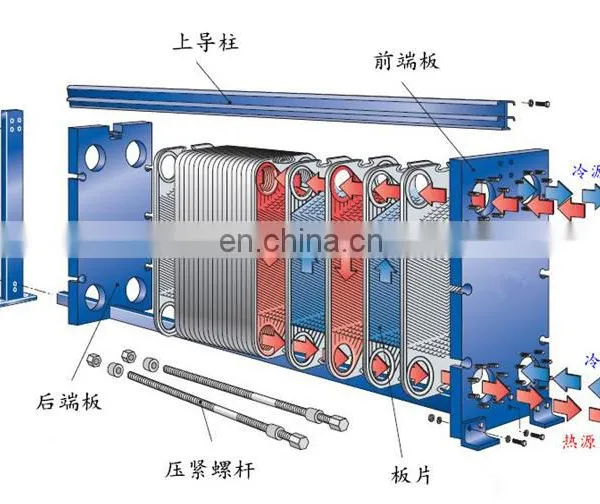

1. Various designs of wide and narrow channels and large and small angles are adopt
ed. Under the given pressure drop, through the accurate calculation of fluid flow and
viscosity, the optimal combination mode of plates is obtained to achieve the best NTU
value.
2. The optimized design of the diversion area can effectively prevent the generation of
inefficient heat exchange area, ensure that the fluid can be evenly distributed in the
heat exchange area, minimize the resistance in the diversion area, and use the higher
resistance in the heat exchange area to bring higher effective heat exchange to the
heat exchange area.
3.Different versions are stamped with different pressure levels, combined with excel
lent molds to ensure minimum mechanical damage and thinning.
ed. Under the given pressure drop, through the accurate calculation of fluid flow and
viscosity, the optimal combination mode of plates is obtained to achieve the best NTU
value.
2. The optimized design of the diversion area can effectively prevent the generation of
inefficient heat exchange area, ensure that the fluid can be evenly distributed in the
heat exchange area, minimize the resistance in the diversion area, and use the higher
resistance in the heat exchange area to bring higher effective heat exchange to the
heat exchange area.
3.Different versions are stamped with different pressure levels, combined with excel
lent molds to ensure minimum mechanical damage and thinning.
4.All plates are subject to PT testing to ensure that each plate has the highest reliability
Plate materials
| Plate material | Medium |
| Hastelloy C276/D205/B2G | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Titanium (Ti) | Sea water, salt water, salt |
| Ni | High temperature, high concentration caustic soda |
| 20Cr,254SMO | Dilute sulfuric acid, inorganic aqueous solution, sparse salt solution |
| SS316L | Water, steam, lubricating oil |
| SS304 | Water, steam, lubricating oil |
Gasket materials
| Gasket Material | Temperature Range(ºC) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc. |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid, Glycoletc. |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High Tempearture Water |
| FPM | -55 to 220 | 80+/-5 | High Temperature Oil |
