Graphite Sulfuric Acid Dilute
US$ 30000 - 500000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XQ
Place of Origin:
China
Model Number:
YKCH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days
Related Products
-
Graphite Rectangle Heat ExchangeUS$ 300 - 500MOQ: 10 Square Meters -
Graphite Shell and Tube Heat ExchangeUS$ 300 - 500MOQ: 10 Square Meters
-
Graphite Block Heat ExchangeUS$ 300 - 500MOQ: 10 Square Meters
-
Hydrochloric Acid Synthesis FurnaceUS$ 50000 - 550000MOQ: 1 Set
-
Graphite Sulfuric Acid DiluteUS$ 30000 - 500000MOQ: 1 Set
Brand Name
XQ
Place of Origin
China
Model Number
YKCH
Type
Tubular Reactor
Certification
ASME
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 months
Weight
1000-50000kg
Dimension(L*W*H)
1000x1000x4000mm
Condition
New
Automatic Grade
Automatic

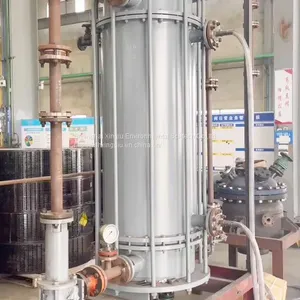

Graphite sulfuric acid dilute
STRUCTURE FEATURES
H2SO4 diluter is a special equipment, which is used to dilute concentrated H2SO4 to 30~60% weak H2SO4 and reach to required temperature. It’s composed of mixing chamber, cooling block and shell and sealed by Treechanges in length due to thermal expansion or contraction are compensated for by helical springs. The advantage: good thermal
conductivity; excellent resistance to thermal shock; convenient maintenance.
TECHNICAL CHARACTERISTIC
| Name | Process side | Service side |
| Operation pressure | 0-0.4MPa | 0-0.8MPa |
| Max operating Temp | 180℃ | 60℃ |
| Medium | Corrosive medium H2SO4 | Cooling water |
| Heating exchanger area | 2-500m2 | |
| Hole diameter | 10,12,16,18,20 or larger |
