Home > Products > Turbine Oil/ Lube Oil Purification Machine > Coalescence Separation Fuel Oil Purifier for Low Viscosity Lubricating Oil
Coalescence Separation Fuel Oil Purifier for Low Viscosity Lubricating Oil
- 50 Set / Sets per Month
- CHONGQING
- T/T L/C
- 15 days
- Waste Oil Regenerating Equipment for Various Dielectric Oils
- BZ Transformer oil regeneration Equipment
- Transformer OLTC On-load Tap Changer Oil Purifier//separator/Regeneration/Dehydration Machine
- Insulation Oil Regeneration Machine
- On-load Tap Changer Oil Filter Oil Filtration Machine Oil Decanter
- Specilize Model BZ Transformer Oil Regeneration Unit
Product Details
Brand Name: | Assen | Place of Origin: | China | Model Number: | TYL |
Certification: | New | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 1550kg |
Dimension(L*W*H): | 1800*1400*1850mm | Voltage: | 380v | Usage: | Lubricant Oil |
Condition: | New | Working Pressure: | 0.6Mpa | Flow: | 30-400L/m |
Product Description

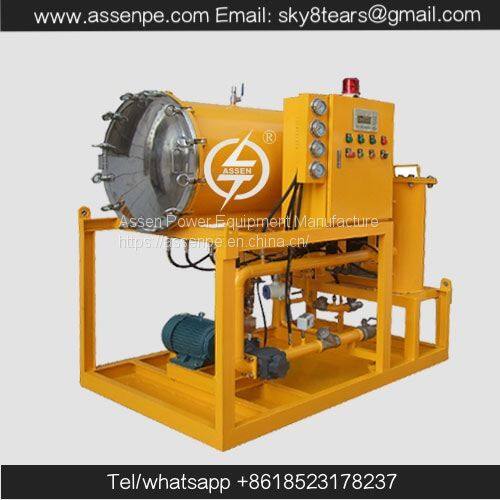

ASSEN Coalescence Separation Fuel Oil Purifier for Low Viscosity Lubricating Oil
Product Application
Series TYL Coalescence-separation oil purifier adopts advanced polymer fibre as the filter medium combined with the special oil-water separating device to make TYL is good at breaking emulsion and filtering. It can effectively separate water from oil. Series TYL can work online with turbine system for breaking emulsion and filtering, also it can separate particles and mass water from light oil. Series TYL works without heating and vacuum source, less power consumption, low operation cost. Series TYL use of trolley structure, light weight, easy operation.
It is applicable for the filtration and dehydration system of turbine oil. It has two functions of good filtration and dehydration, which can effectively remove impurities, emulsified water and free water from oil. It can improve oil quality, reduce cost of reprocessing and pollution, and reduce cost of maintenance and operation.
Product Features
1) filtration and dehydration function to remove emulsified water, free water and impurities.
2) It can be used as oil filling machine only to remove impurities from oil. Its work theory: oil goes through specially made filter from outside to inside, by this direction, the hole of filter layer is smaller and smaller, different layer can prevent different size of impurities. This design improved lifetime and efficiency of filter.
3) There is inner circulation so that operator can replace coalescence and separation filter.
Model | TYL-30 | TYL-50 | TYL-100 | TYL-150 | TYL-200 | TYL-400 |
Rated flow(L/min) | 30L/min | 50L/min | 100L/min | 150L/min | 200L/min | 400L/min |
Temperature | 25-80°C | |||||
Recommended viscosity | 10-120Cst | |||||
Rated pressure | 0.6MPa | |||||
The original pressure loss | ≤0.01MPa | |||||
First class filtration accuracy | 100um | |||||
Secondary precision filtration accuracy | 10, 20, 40um | |||||
Third precision filtration accuracy | 3, 5, 10, 20um | |||||
Voltage(V) | Three-phase AC380V(or as your needs) | |||||
Motor Power | 0.75KW | 1.1KW | 2.2KW | 4KW | 5.5KW | 13KW |
Weight | 150KG | 200KG | 300KG | 520KG | 860KG | 2860KG |
Sizes(CM) | 120x82x125 | 135x82x140 | 174x98x145 | 180x100x154 | 184x105x178 | 318x160x20 |
Packaging & Shipping
Our factory and visitors
Our Services
Your inquiry related to our products or prices will be replied to in 24 hours.
Well-trained and experienced staff to answer all your inquiries in fluent English.
Professional service from the well-trained and experienced staff is customers' best choice to secure good communication, on-time delivery, reliable warranty, etc.
OEM is available for Anern Products.
Protection of your sales area, ideas of design, and all your private information.
FAQ
Q: How to Select and Service Turbine Oils?
A: The question "How long will this turbine oil last?" should be answered with the sound engineering response of "it depends." Turbine oil suppliers can give fairly wide-ranging estimates, say 5 to 15 years, in gas turbine applications. Any attempt to create a more exact estimate requires consideration of so many variables that it becomes somewhat useless. Water, heat, contamination, operating hours, and maintenance practices will have a significant impact on turbine oil longevity. There is no denying that properly tested and maintained, higher quality turbine oils will provide longer life than poorly tested and maintained, lower quality products. Following is a discussion of new turbine oil performance characteristics that will promote longer, trouble-free service.
Company Information
Chongqing Assen Power Equipment Co., LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff, professional workers and High-quality sales and service teams

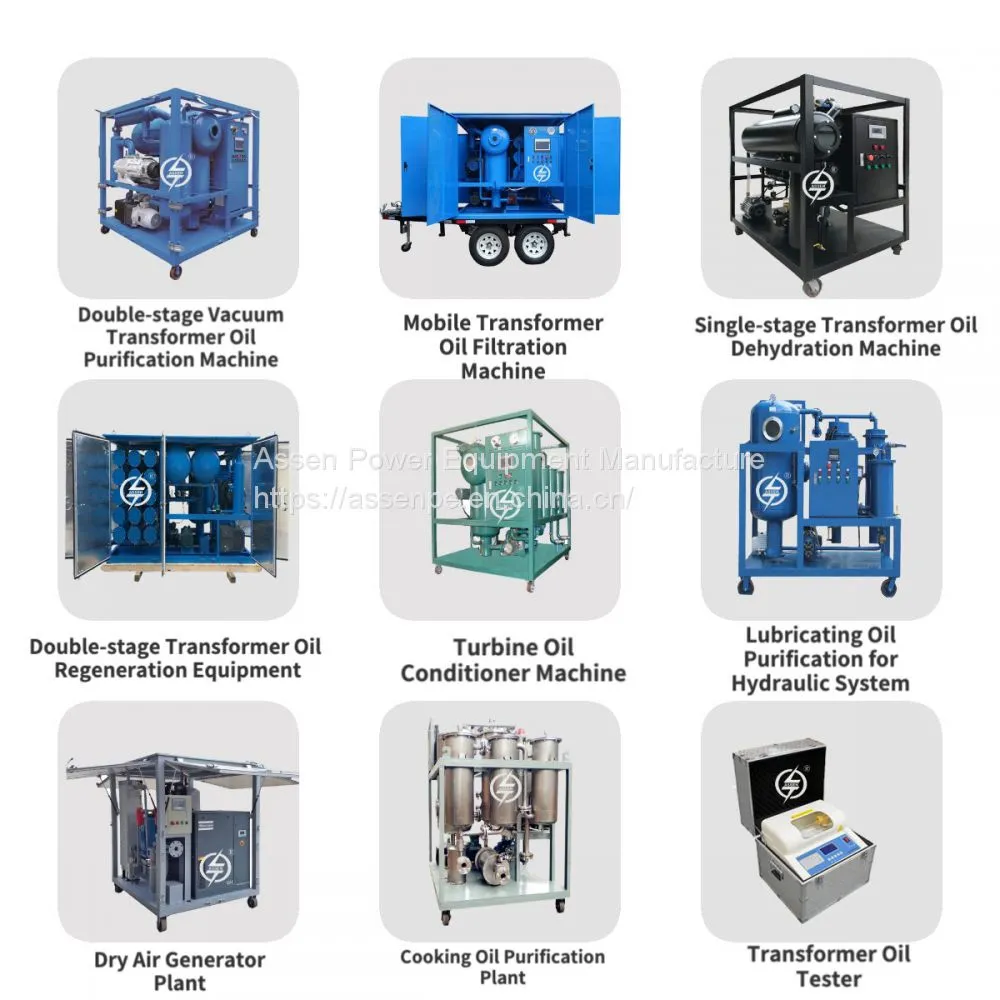

Our Product: Double Stage Transformer Oil Purification System, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Filtration, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipment operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
