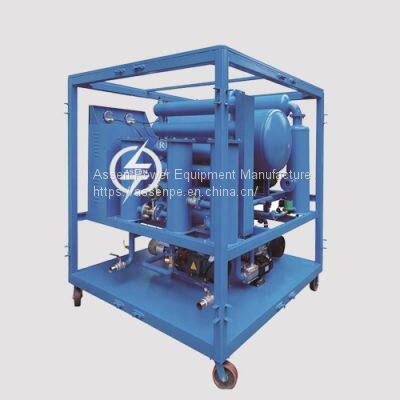

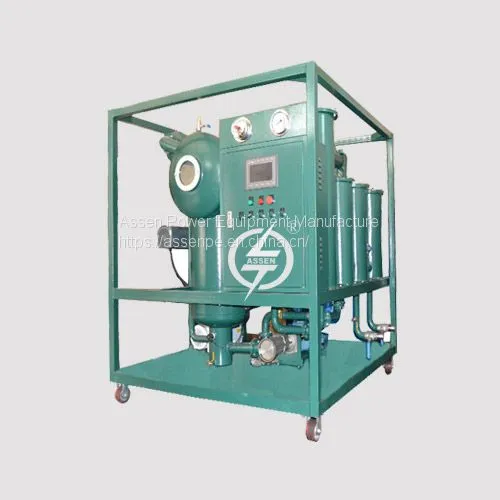

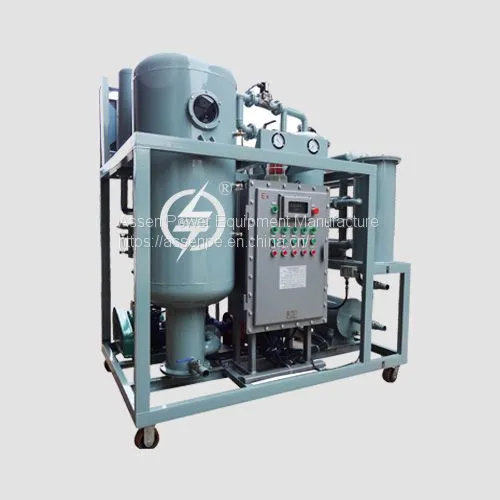

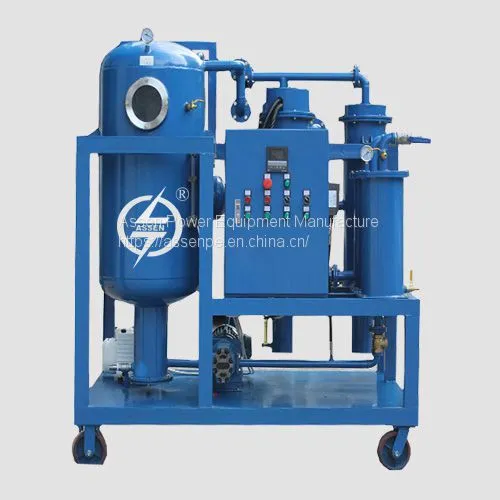

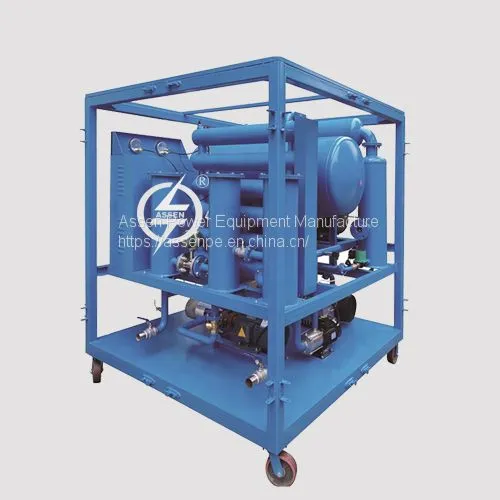

CE Qualified Turbine Oil Purification Machine, Lube Oil Filtration Equipment
Application
CE Qualified Turbine Oil Purification Machine is designed to purify lube oil, turbine oil, shipping oil, fuel oil, mineral oil, engine oil, etc. After de-emulsification by this machine, the oil is hard to be emulsified again. The dehydration volume is larger and the water can be drained off on line. TY series turbine oil purifier machine can effectively extend oil's life and protect turbine and lubrication system from damage.
Features
Breaking emulsification thoroughly with high- molecule polymeric material.
2. Dewatering very effectively with once and for two steps dehydrating method. It can thoroughly clear away the liquid water, free water and 80% dissolved water.
3. With distinctive removing impurities technique filtering through double FH trapezoidal network and absorbing by high polymer material, this machine can make the equal or surpass 200 and make the cleanness lower grade 6(NAS1638).
4. With the trapezoidal, spiral, automatic back flushing system.
5. With the advanced dielectric condensation devices.
6. On-line oil purification can be carried out with turbine or water turbine automatically without any person.
Item |
Unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
TY-300 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Vacuum Degree |
MPa |
-0.06 ～ -0.095 |
||||||||
Working Pressure |
MPa |
≤0.3 |
||||||||
Temperature Range |
℃ |
40 ～ 70 |
||||||||
Heating Power |
kW |
12 |
15 |
18 |
24 |
45 |
60 |
72 |
84 |
|
Total Power |
kW |
14 |
17 |
20 |
27 |
48 |
66 |
81 |
97 |
|
Inlet/outlet Caliber |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
|
Weight |
kg |
400 |
450 |
500 |
600 |
700 |
900 |
1050 |
1550 |
|
Dimension |
Length |
mm |
1280 |
1350 |
1350 |
1400 |
1500 |
1500 |
1600 |
1800 |
Width |
mm |
750 |
900 |
950 |
950 |
1000 |
1200 |
1350 |
1400 |
|
Height |
mm |
1450 |
1450 |
1500 |
1600 |
1650 |
1800 |
1800 |
1850 |
|
water content will less than 50ppm
gas content will less than 0.2%
kinematic viscosity (40°C):28.8-35.2 mm²/s
flash point ( open cup) > 190°C
acid value ≤ 0.2 mgKOH/g ( without antirust in your oil)
demulsibility≤60 min
filtration accuracy ≤ 5 micron
oil appearance: transparent
cleanness: ≤NAS grade 6
