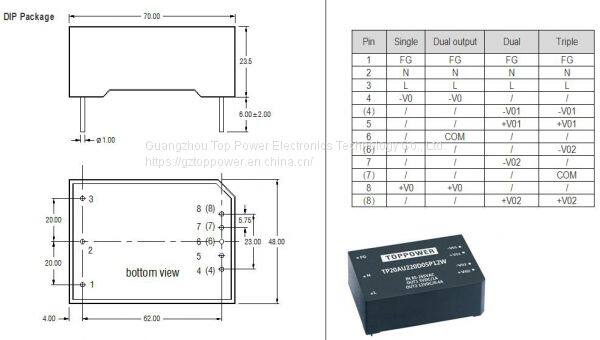

3KV Isolation AC/DC Converters 70x48mm Isolation Power Supply

25~30W 3KVAC Isolation Wide Input AC/DC Converters

Part Number Input Voltage Output Efficiency (Typ. )% Recommend output external capacitor（A） C1、C2、C3 C4 C5、C6TP25AU220S03W 220(4:1) 85-265 3.3 5.0 72 0.1uF/25V 2200uF/16V /TP25AU220S05W 220(4:1) 85-265 5 5.0 76 0.1uF/25V 2200uF/16V /TP25AU220S12W 220(4:1) 85-265 12 2.08 77 0.1uF/25V 680uF/25V /

TP25AU220S15W 220(4:1) 85-265 15 1.67 78 0.1uF/25V 680uF/25V /TP25AU220S24W 220(4:1) 85-265 24 1.04 78 0.1uF/25V 470uF/35V /

TP25AU220S48W 220(4:1) 85-265 48 0.5 80 0.1uF/25V 470uF/35V /

TP25AU220D05W 220(4:1) 85-265 ±5 ±2.5 77 0.1uF/25V 2200uF/16V 2200uF/16V

TP25AU220D12W 220(4:1) 85-265 ±12 ±1.04 79 0.1uF/25V 680uF/25V 680uF/25V

TP25AU220D15W 220(4:1) 85-265 ±15 ±0.83 79 0.1uF/25V 680uF/25V 680uF/25V

TP25AU220D05P03W 220(4:1) 85-265 +5/+3.3 4.9/0.1 75 0.1uF/25V 1000uF/16V 1000uF/16V

TP25AU220D05P05W 220(4:1) 85-265 +5/+5 4.9/0.1 75 0.1uF/25V 1000uF/16V 1000uF/16V

TP25AU220D05P12W 220(4:1) 85-265 +5/+12 4.8/0.1 76 0.1uF/25V 1000uF/16V 470uF/25V

TP25AU220D05P15W 220(4:1) 85-265 +5/+15 4.7/0.1 76 0.1uF/25V 1000uF/16V 470uF/25V

TP25AU220D05P24W 220(4:1) 85-265 +5/+24 4.5/0.1 76 0.1uF/25V 1000uF/16V 220uF/35V

TP25U220T05D05W 220(4:1) 85-265 +5/±5 4.8/±0.1 75 0.1uF/25V 2200uF/16V 330uF/16V

TP25AU220T05D12W 220(4:1) 85-265 +5/±12 4.5/±0.1 76 0.1uF/25V 2200uF/16V 220uF/25V

TP25AU220T05D15W 220(4:1) 85-265 +5/±15 4.4/±0.1 76 0.1uF/25V 2200uF/16VV 220uF/25V

TP30AU220S05W 220(4:1) 85-265 5 6.0 76 0.1uF/25V 2200uF/16V  /

TP30AU220S12W 220(4:1) 85-265 12 2.5 77 0.1uF/25V 680uF/25V /

TP30AU220S15W 220(4:1) 85-265 15 2 78 0.1uF/25V 680uF/25V /

TP30AU220S24W 220(4:1) 85-265 24 1.25 78 0.1uF/25V 470uF/35V /

TP30AU220D05W 220(4:1) 85-265 ±5 ±3 77 0.1uF/25V 2200uF/16V 2200uF/16V

TP30AU220D12W 220(4:1) 85-265 ±12 ±1.25 79 0.1uF/25V 680uF/25V 680uF/25V

TP30AU220D15W 220(4:1) 85-265 ±15 ±1 79 0.1uF/25V 680uF/25V 680uF/25V

TP30AU220D05P05 220(2:1) 165-265 +5/+5 5.2/0.8 75 0.1uF/25V 1000uF/16V 1000uF/16V

TP30AU220D05P12 220(2:1) 165-265 +5/+12 4.0/0.8 76 0.1uF/25V 1000uF/16V 470uF/25V

TP30AU220D05P15 220(2:1) 165-265 +5/+15 3.6/0.8 76 0.1uF/25V 1000uF/16V 470uF/25V

TP30AU220D05P24 220(2:1) 165-265 +5/+24 3.6/0.8 76 0.1uF/25V 1000uF/16V 220uF/35V

TP30AU220D05P05W 220(4:1) 85-265 +5/+5 5.2/0.8 75 0.1uF/25V 1000uF/16V 1000uF/16V

TP30AU220D05P12W 220(4:1) 85-265 +5/+12 4.0/0.8 76 0.1uF/25V 1000uF/16V 470uF/25V

TP30AU220D05P15W 220(4:1) 85-265 +5/+15 3.6/0.8 76 0.1uF/25V 1000uF/16V 470uF/25V

TP30AU220D05P24W 220(4:1) 85-265 +5/+24 3.6/0.8 76 0.1uF/25V 1000uF/16V 220uF/35V

TP30AU220T05D12W 220(4:1) 85-265 +5/±12 4.4/±0.34 75 0.1uF/25V 2200uF/16V 220uF/25V

TP30AU220T05D15W 220(4:1) 85-265 +5/±15 4.4/±0.27 76 0.1uF/25V 2200uF/16V 220uF/25V

TP30AU220T05D24W 220(4:1) 85-265 +5/±24 4.4/±0.17 77 0.1uF/25V 2200uF/16V 200uF/35V

30W 3KVAC Isolation Wide Input AC/DC Converters
The rated output power of TP25AU~TP30AU converters is 25~30W with wide input voltage range, for both AC input and DC input application. High reliability, precision, large power density, ultra-small size, no external heat sink required, stable output voltage and etc, with over current protection, EMI filter circuit, the rectifier filter circuit, 3000V isolation voltage, short circuit, overload, internal thermal protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control and other electronic systems.
