konwertery dc / dc
|
2W Isolated Wide Input Single Output DC/DC Converters power supply module The TP2L is a series of high performance miniature DC/DC converters having regulated outputs over the wide temperature range of -40C to 85C. The input voltage range is 2:1 isolation is 1kVDC. Continuous short circuit protection, external control and extremely small SIP packaging. | |||||||||||||
| Basic Terms: | |||||||||||||
| 1 | Type | TP2L-2W Series | |||||||||||
| 2 | Efficiency | To 83% | |||||||||||
| 3 | Input range | 2:1 Wide range voltage input | |||||||||||
| 4 | Power density | 0.91W/cm3 | |||||||||||
| 5 | Related certificate | RoHS compliant | |||||||||||
| 6 | Isolation voltage | 1.5kVDC isolation | |||||||||||
| 7 | Iutput voltage | 5V, 12V, 24V, 48V | |||||||||||
| 8 | Output voltage | 5V, 9V, 12V, 15V | |||||||||||

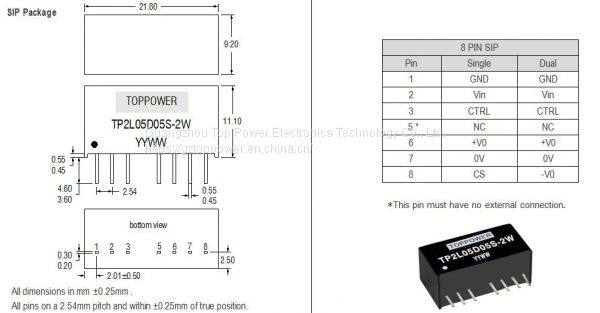

| 9 | Pin connection | 1(-Vin),2(-Vin),3(CTRL),6(+Vout),7(-Vout),8(Cs) | |||||||||||
| 10 | Operating temperature range | -40ºC to 85ºC | |||||||||||
| 11 | MOQ | 1 pc (no ltimited for considered the long coorperation relations) | |||||||||||
| 12 | Terms of payment | Western Union,T/T | |||||||||||
| 13 | Terms of delivery | DHL / UPS / EMS / TNT | |||||||||||
| 14 | Delivery time | 7-12 working days | |||||||||||
TP2L-2W series are a range of isolated 2 Watt converters in a SIP package, 2:1 wide input range and tightly regulated output voltage qualifies these converters for many cost critical applications in industrial and consumer electronics. Operating temperature range from -40 ºC to 85 ºC .
Part Number |
Input |
Output |
Efficiency (Typ.) |
||||
Voltage(VDC) |
Voltage (VDC) |
Current(mA) |
|||||
Rated |
Range values |
Max* |
VDC |
Max. |
Min. |
% |
|
TP2L05D05S-2W |
5 (2:1) |
4.5-9 |
11 |
±5 |
±200 |
±20 |
67 |
TP2L05D09S-2W |
5 (2:1) |
4.5-9 |
11 |
±9 |
±111 |
±11 |
71 |
TP2L05D12S-2W |
5 (2:1) |
4.5-9 |
11 |
±12 |
±83 |
±8 |
72 |
TP2L05D15S-2W |
5 (2:1) |
4.5-9 |
11 |
±15 |
±67 |
±7 |
73 |
TP2L05D24S-2W |
5 (2:1) |
4.5-9 |
11 |
±24 |
±42 |
±4 |
72 |
TP2L05S03S-2W |
5 (2:1) |
4.5-9 |
11 |
3.3 |
500 |
50 |
64 |
TP2L05S05S-2W |
5 (2:1) |
4.5-9 |
11 |
5 |
400 |
40 |
67 |
TP2L05S09S-2W |
5 (2:1) |
4.5-9 |
11 |
9 |
222 |
22 |
72 |
TP2L05S12S-2W |
5 (2:1) |
4.5-9 |
11 |
12 |
167 |
16 |
73 |
TP2L05S15S-2W |
5 (2:1) |
4.5-9 |
11 |
15 |
133 |
13 |
72 |
TP2L05S24S-2W |
5 (2:1) |
4.5-9 |
11 |
24 |
80 |
8 |
71 |
TP2L12D05S-2W |
12 (2:1) |
9-18 |
22 |
±5 |
±200 |
±20 |
73 |
TP2L12D09S-2W |
12 (2:1) |
9-18 |
22 |
±9 |
±111 |
±11 |
74 |
TP2L12D12S-2W |
12 (2:1) |
9-18 |
22 |
±12 |
±83 |
±8 |
78 |
TP2L12D15S-2W |
12 (2:1) |
9-18 |
22 |
±15 |
±67 |
±7 |
77 |
TP2L12S03S-2W |
12 (2:1) |
9-18 |
22 |
3.3 |
500 |
50 |
68 |
TP2L12S05S-2W |
12 (2:1) |
9-18 |
22 |
5 |
400 |
40 |
75 |
TP2L12S09S-2W |
12 (2:1) |
9-18 |
22 |
9 |
222 |
22 |
77 |
TP2L12S12S-2W |
12 (2:1) |
9-18 |
22 |
12 |
167 |
16 |
79 |
TP2L12S15S-2W |
12 (2:1) |
9-18 |
22 |
15 |
133 |
13 |
80 |
TP2L12S24S-2W |
12 (2:1) |
9-18 |
22 |
24 |
80 |
8 |
78 |
TP2L24D05S-2W |
24 (2:1) |
18-36 |
40 |
±5 |
±200 |
±20 |
76 |
TP2L24D09S-2W |
24 (2:1) |
18-36 |
40 |
±9 |
±111 |
±11 |
78 |
TP2L24D12S-2W |
24 (2:1) |
18-36 |
40 |
±12 |
±83 |
±8 |
79 |
TP2L24D15S-2W |
24 (2:1) |
18-36 |
40 |
±15 |
±67 |
±7 |
78 |
TP2L24S03S-2W |
24 (2:1) |
18-36 |
40 |
3.3 |
500 |
50 |
67 |
TP2L24S05S-2W |
24 (2:1) |
18-36 |
40 |
5 |
400 |
40 |
77 |
TP2L24S09S-2W |
24 (2:1) |
18-36 |
40 |
9 |
222 |
22 |
79 |
TP2L24S12S-2W |
24 (2:1) |
18-36 |
40 |
12 |
167 |
16 |
80 |
TP2L24S15S-2W |
24 (2:1) |
18-36 |
40 |
15 |
133 |
13 |
80 |
TP2L24S24S-2W |
24 (2:1) |
18-36 |
40 |
24 |
80 |
8 |
80 |
TP2L48D05S-2W |
48 (2:1) |
36-72 |
80 |
±5 |
±200 |
±20 |
75 |
TP2L48D09S-2W |
48 (2:1) |
36-72 |
80 |
±9 |
±111 |
±11 |
78 |
TP2L48D12S-2W |
48 (2:1) |
36-72 |
80 |
±12 |
±83 |
±8 |
79 |
TP2L48D15S-2W |
48 (2:1) |
36-72 |
80 |
±15 |
±67 |
±7 |
79 |
TP2L48S03S-2W |
48 (2:1) |
36-72 |
80 |
3.3 |
500 |
50 |
71 |
TP2L48S05S-2W |
48 (2:1) |
36-72 |
80 |
5 |
400 |
40 |
75 |
TP2L48S09S-2W |
48 (2:1) |
36-72 |
80 |
9 |
222 |
22 |
76 |
TP2L48S12S-2W |
48 (2:1) |
36-72 |
80 |
12 |
167 |
16 |
78 |
TP2L48S15S-2W |
48 (2:1) |
36-72 |
80 |
15 |
133 |
13 |
78 |
TP2L48S24S-2W |
48 (2:1) |
36-72 |
80 |
24 |
80 |
8 |
80 |
