Home > Electrical & Electronics > Inverter > Power Inverter > Single Output DC-DC Converter / TPE / 1W / 1KVDC Isolation / DIP or SIP
Single Output DC-DC Converter / TPE / 1W / 1KVDC Isolation / DIP or SIP
US$ 0.33
≥8888899999999 Pieces
Key Specifications
Get Latest Price
Brand Name:
TOPPOWER
Place of Origin:
China
Model Number:
TPE Series
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
7 days
Related Products
-
1W DC/DC Converter DC dc Power Supply Module Convertisseur DC/DC AbaisseurUS$ 0.33MOQ: 2147483647 Pieces -
SMD DC-DC Converter / TPTE / 1W / 1KVDC Isolation / Single OutputUS$ 0.39MOQ: 2147483647 Pieces
-
TPV DC/DC Converters Power Supply ModuleUS$ 0.39MOQ: 2147483647 Pieces
-
TPV 24V & 48V Series DC/DC Converter Power Supply ModuleUS$ 0.4MOQ: 2147483647 Pieces
-
Sell DC/DC Converters TP2D2412-3W Power Supply ModuleUS$ 0.39MOQ: 2147483647 Pieces
Brand Name
TOPPOWER
Place of Origin
China
Model Number
TPE Series
Type
DC/DC Converters
Size
11.48*6*10
Weight
1.4G
Output Power
1 - 50W
Output Type
Multiple
Output Current
MA
Output Frequency
hz
Output Voltage
VDC
Input Voltage
VDC
| Basic Information: | ||
| 1 | Model No.: | TPE Series |
| 2 | Trademark: | TOPPOWER or ODM |
| 3 | Standard: | RoHS, UL, CE, FCC |
| 4 | Origin: | Guangzhou, China |
| 5 | Production Capacity: | 100,000pcs |
| Trade Information: | ||
| 1 | Min. order: | N/A |
| 2 | Terms of delivery: | FOB |
| 3 | Payment Terms: | T/T, Western Union, Paypal |
| 4 | Terms of shipment: | DHL / UPS / EMS / TNT |
| 5 | Delivery time: | 7-12 working days |
| 6 | Price: | Negotiable |
| Functional Specification: | ||
| 1 | Model NO.: | TPE Series |
| 2 | Power(Watts): | 1W |
| 3 | Isolation Voltage: | 1KVDC |
| 4 | Package: | DIP / SIP |
| 5 | Input(VDC): | 5V, 12V, 24V, 48V |
| 6 | Output(VDC): | 5V, 9V, 12V ,15V |
| 7 | Temperature: | -40ºC to 85ºC |
| 8.1 | Dimensions (mm): | DIP(L/W/H): 11.5*9.8*6.8 |

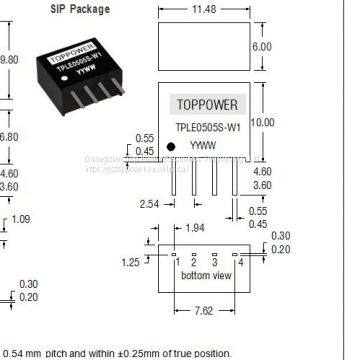

| 8.2 | Dimensions (mm): | SIP(L/W/H): 11.48*6*10 |
| 9.1 | PIN Connection: | DIP: 1(-Vin),4(+Vin),5(+Vout),7(-Vout) |
| 9.2 | PIN Connection: | SIP: 1(-Vin),2(+Vin),3(-Vout),4(+Vout) |
| Features: | |
| 1 | 1KVDC isolation |
| 2 | Isolated Single Output |
| 3 | RoHS Complaint |
| 4 | UL 94V-0 package material |
| 5 | Custom solutions available |
| 6 | Wide operating temperature range |
| 7 | High efficiency for low power applications |
| 8 | Miniature design make it possible for many space critical applications for board level power distribution. |
| 9 | The internal SMD construction with leadframe technology makes it possible to offer a product with high performance at low cost |
| Selection Guide: | ||||||
| No. | Part Number | Input Voltage (V) |
Output Voltage (V) |
Output Current (mA) |
Efficiency (%) |
Package Style |
| 1 | TPE0505D | 5 | 5 | 200 | 68 | DIP |
| 2 | TPE0509D | 5 | 9 | 110 | 78 | DIP |
| 3 | TPE0512D | 5 | 12 | 83 | 77 | DIP |
| 4 | TPE0515D | 5 | 15 | 66 | 81 | DIP |
| 5 | TPE0524D | 5 | 24 | 42 | 80 | DIP |
| 6 | TPE0505S | 5 | 5 | 200 | 70 | SIP |
| 7 | TPE0509S | 5 | 9 | 110 | 78 | SIP |
| 8 | TPE0512S | 5 | 12 | 83 | 78 | SIP |
| 9 | TPE0515S | 5 | 15 | 66 | 80 | SIP |
| 10 | TPE0524S | 5 | 24 | 42 | 79 | SIP |
| 11 | TPE1205D | 12 | 5 | 200 | 69 | DIP |
| 12 | TPE1209D | 12 | 9 | 110 | 74 | DIP |
| 13 | TPE1212D | 12 | 12 | 83 | 76 | DIP |
| 14 | TPE1215D | 12 | 15 | 66 | 75 | DIP |
| 15 | TPE1205S | 12 | 5 | 200 | 71 | SIP |
| 16 | TPE1209S | 12 | 9 | 110 | 73 | SIP |
| 17 | TPE1212S | 12 | 12 | 83 | 76 | SIP |
| 18 | TPE1215S | 12 | 15 | 66 | 74 | SIP |
| 19 | TPE2405D | 24 | 5 | 200 | 70 | DIP |
| 20 | TPE2409D | 24 | 9 | 111 | 75 | DIP |
| 21 | TPE2412D | 24 | 12 | 83 | 81 | DIP |
| 22 | TPE2415D | 24 | 15 | 66 | 81 | DIP |
| 23 | TPE2405S | 24 | 5 | 200 | 71 | SIP |
| 24 | TPE2409S | 24 | 9 | 111 | 75 | SIP |
| 25 | TPE2412S | 24 | 12 | 83 | 80 | SIP |
| 26 | TPE2415S | 24 | 15 | 66 | 80 | SIP |
| 27 | TPE4805D | 48 | 5 | 200 | 70 | DIP |
| 28 | TPE4809D | 48 | 9 | 111 | 75 | DIP |
| 29 | TPE4812D | 48 | 12 | 83 | 80 | DIP |
| 30 | TPE4815D | 48 | 15 | 66 | 80 | DIP |
| 31 | TPE4805S | 48 | 5 | 200 | 70 | SIP |
| 32 | TPE4809S | 48 | 9 | 111 | 75 | SIP |
| 33 | TPE4812S | 48 | 12 | 83 | 81 | SIP |
| 34 | TPE4815S | 48 | 15 | 66 | 81 | SIP |
| * For more information, please visit: |
