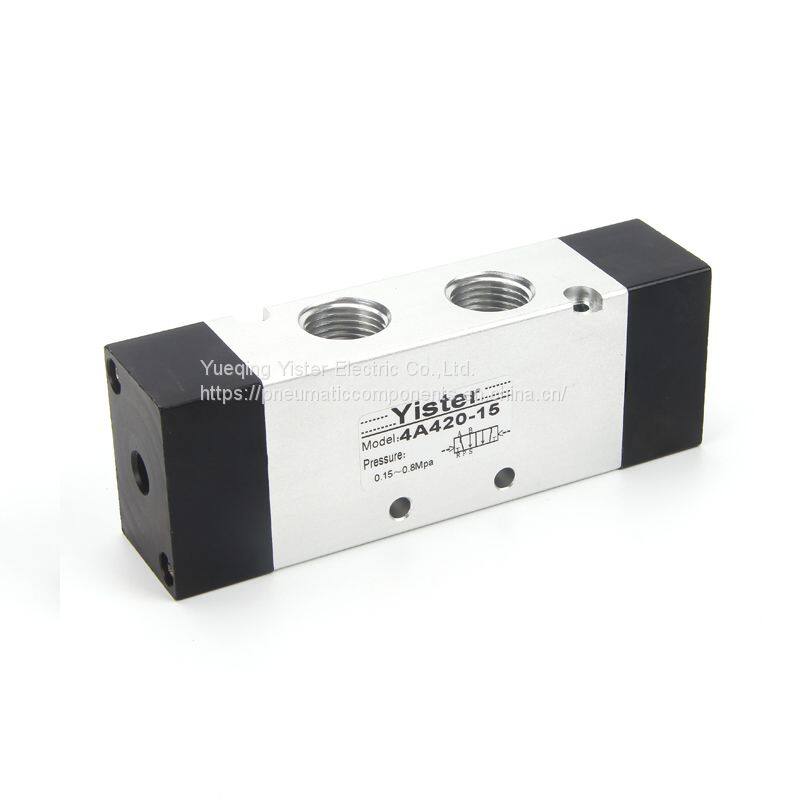

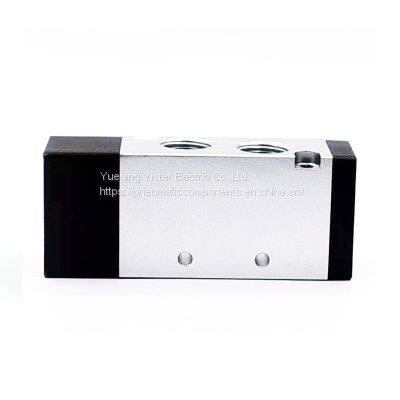

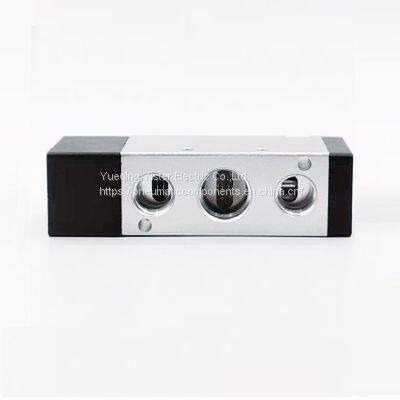

High-speed Five-way Pneumatic Directional Air Pilot Valve
US$ 1 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yister
Place of Origin:
China
Model Number:
4A420-15
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
2 days
Related Products
-
G3/8" 5 Port 3 Position Closed Center Air Control Valve 4A430-15US$ 1 - 10MOQ: 1 Piece -
5/2 Way 4A110-M5/06 Air Flow Control ValveUS$ 1 - 10MOQ: 1 Piece
-
4A120-06 5 Port 2 Position Airtac Type Pneumatic Flow Control ValveUS$ 1 - 10MOQ: 1 Piece
-
1/8 Inch 3-way Pneumatic Control Valve 4A130-M5/06US$ 1 - 10MOQ: 1 Piece
-
1/8" 5 Way Pneumatic Air Control Valve for Air CompressorUS$ 1 - 10MOQ: 1 Piece
Brand Name
Yister
Place of Origin
China
Model Number
4A420-15
Material
Alloy
Application
Other, Air control valve
Structure
Control
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Pneumatic
Port Size
G3/8
Media
Other, air control valves
Temperature of Media
Normal Temperature
High-speed five-way Pneumatic Directional Air Pilot Valve

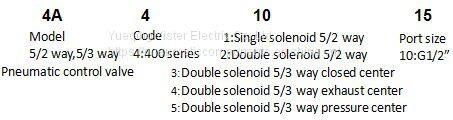

Order code

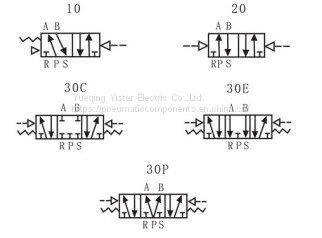

Symbol
Technical parameter
Model |
4A410-15 |
4A420-15 |
4A430C-15 |
4A430E-15 |
4A430P-15 |
||
Fluid |
Air |
||||||
Acting |
Exterior control |
||||||
Valve type |
5/2 way |
5/3 way |
|||||
Orifice size |
50mm2 |
30mm2 |
|||||
Lubrication |
No required |
||||||
Port size |
In=out=Exhaust=G1/4” |
In=out=Exhaust=G3/8” |
|||||
Protective class |
IP65 |
||||||
Pressure range |
0.15-0.8MPa |
||||||
Proof pressure |
1.2MPa |
||||||
Material of body |
Aluminum Alloy |
||||||
Temperature |
-5℃~60℃ |
||||||
|
Response speed |
|||||||

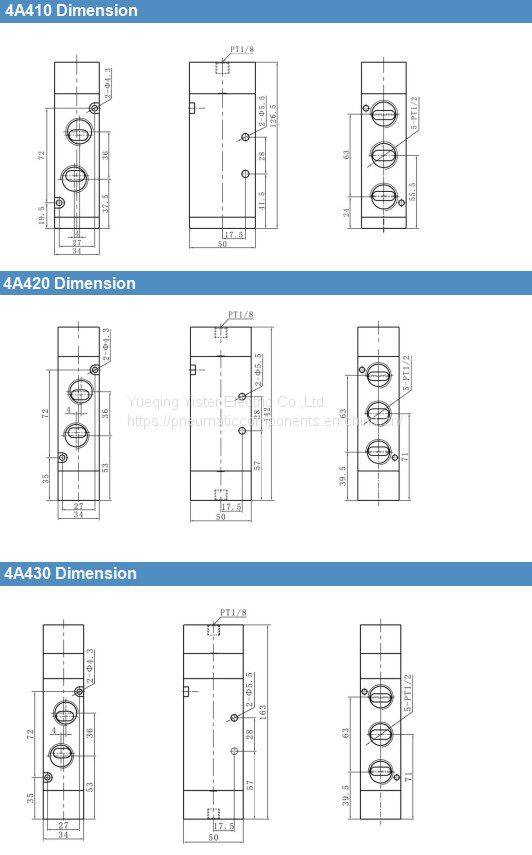

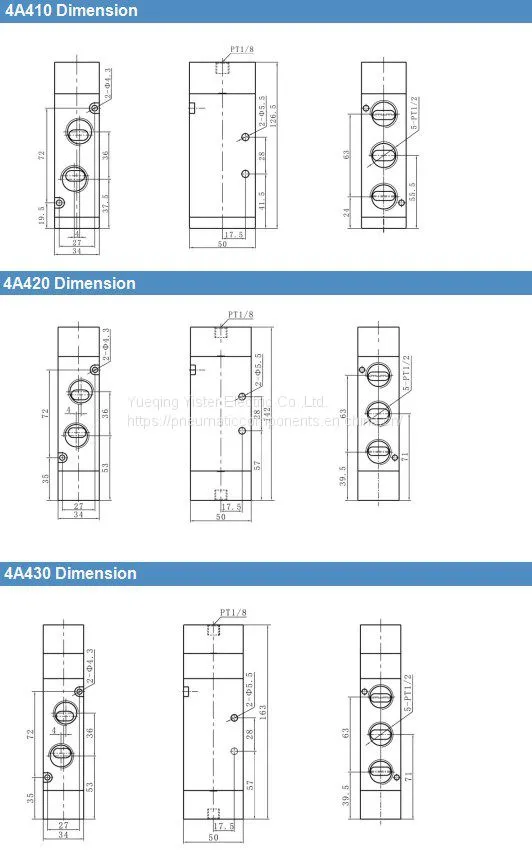

Dimension
Feature
4A420-15 normally closed pneumatic-operated Control Valve
1.Normally Closed, Aluminum body
2.All size can be customized.
3.Spare parts can supply
4.Structure type: guiding valve type
5.Level of protection: IP54
6.Normally Closed,Air operated Control Valve 4A420-15
