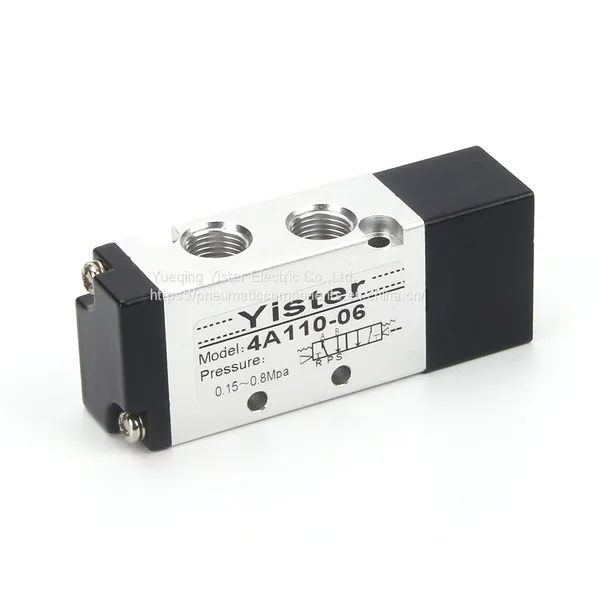

5/2 Way 4A110-M5/06 Air Flow Control Valve
5/2 way 4A110-M5/06 air flow control valve

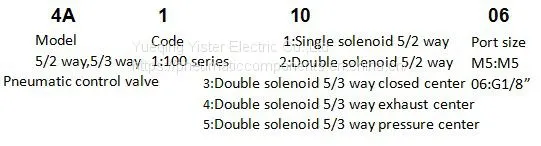

Order code
Symbol
Technical parameter
Model |
4A110-M5 |
4A120-M5 |
4A130C-M5 |
4A130E-M5 |
4A130P-M5 |
4A110-06 |
4A120-06 |
4A130C-06 |
4A130E-06 |
4A130P-06 |
Fluid |
Air |
|||||||||
Acting |
Exterior control |
|||||||||
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
||||||
Orifice size |
5.5mm2 |
5mm2 |
12mm2 |
50mm2 |
||||||
Lubrication |
No required |
|||||||||
Port size |
In=out=Exhaust=M5 |
In=out=Exhaust=G1/8” |
||||||||
Protective class |
IP65 |
|||||||||
Pressure range |
0.15-0.8MPa |
|||||||||
Proof pressure |
1.2MPa |
|||||||||
Material of body |
Aluminum Alloy |
|||||||||
Temperature |
-5℃~60℃ |
|||||||||
|
Response speed |
||||||||||

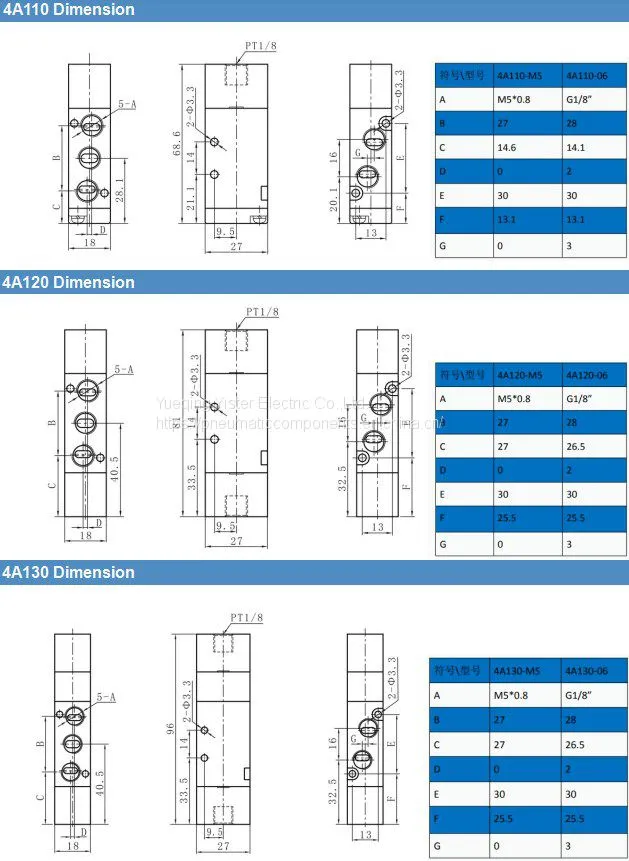

Dimension
Feature

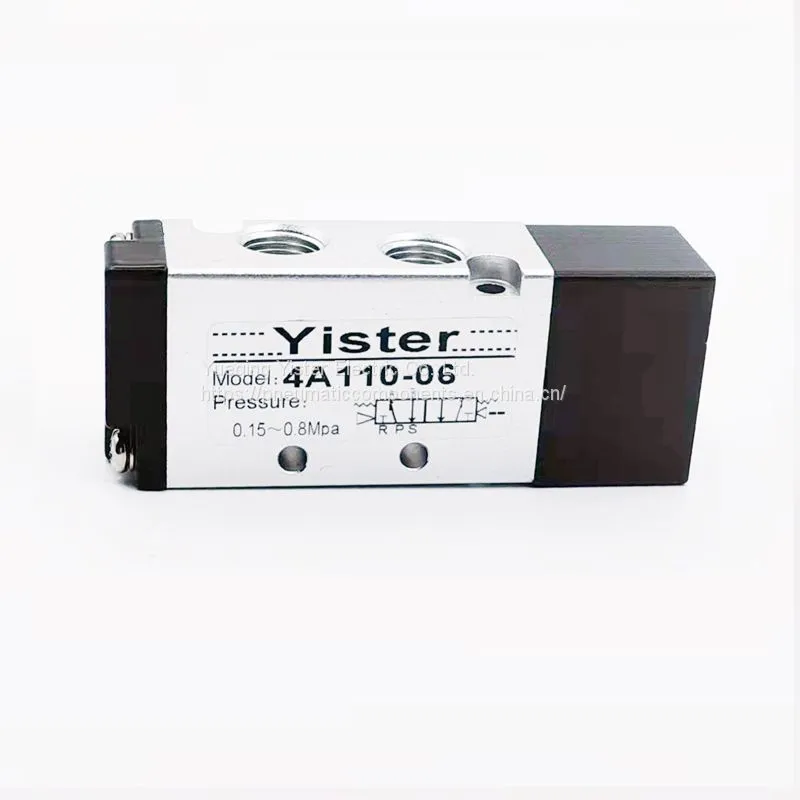

Model: 4A110-06 4A120-06 4A130-06
Working Medium: Air
Action Mode: External air control
Operating Pressure: 0.15~0.8Mpa
Maximum Pressure Resistance: 1.0Mpa
Number of Position & Way: 2 Position 5 Way
Port Size: Air Inlet = Air Outlet = Exhaust = PT1/8
Effective Area: 12mm2 (CV=0.67)
Operating Temperature: 0~60°C
