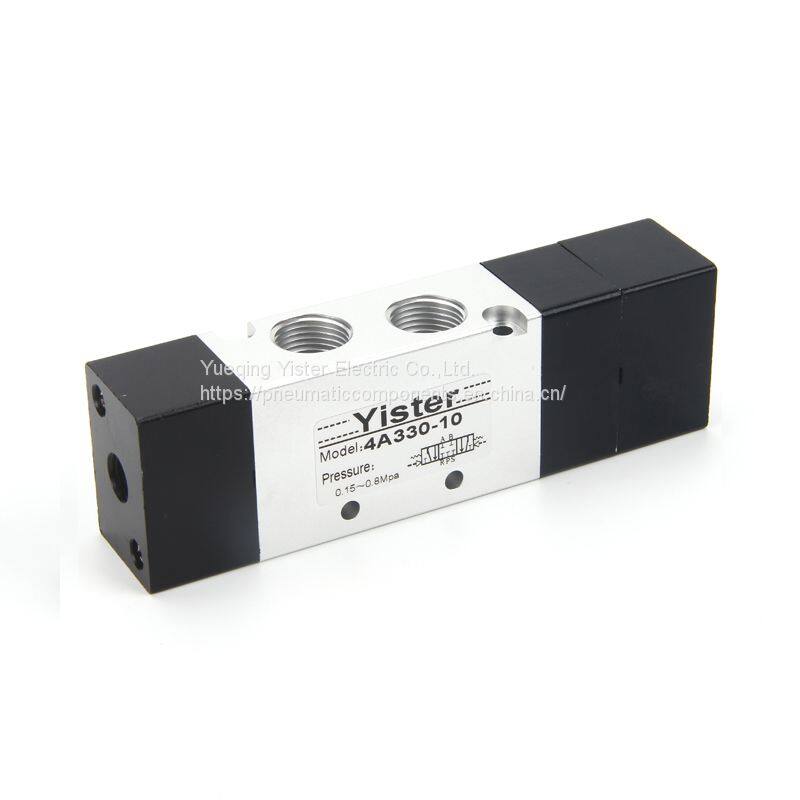

3/8 inch 2 way Pneumatic manual air control valve 4A330-10

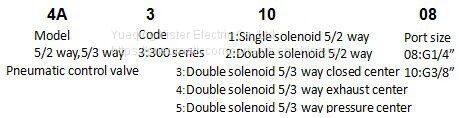

Order code
Symbol
Technical parameter
Model |
4A310-08 |
4A320-08 |
4A330C-08 |
4A330E-08 |
4A330P-08 |
4A310-10 |
4A320-10 |
4A330C-10 |
4A330E-10 |
4A330P-10 |
|
Fluid |
Air |
||||||||||
Acting |
Exterior control |
||||||||||
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
|||||||
Orifice size |
25mm2 |
18mm2 |
30mm2 |
18mm2 |
|||||||
Lubrication |
No required |
||||||||||
Port size |
In=out=Exhaust=G1/4” |
In=out=Exhaust=G3/8” |
|||||||||
Protective class |
IP65 |
||||||||||
Pressure range |
0.15-0.8MPa |
||||||||||
Proof pressure |
1.2MPa |
||||||||||
Material of body |
Aluminum Alloy |
||||||||||
Temperature |
-5℃~60℃ |
||||||||||
|
Response speed |
|||||||||||

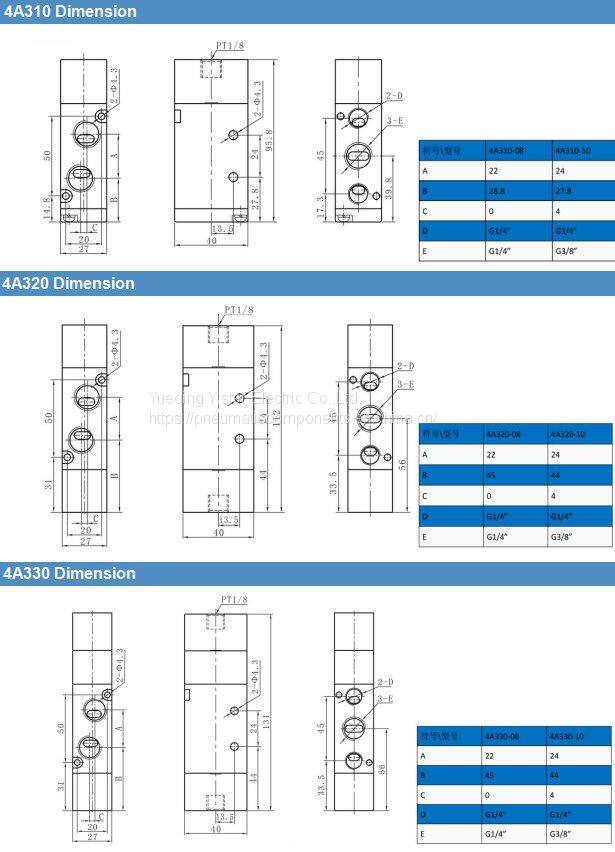

Dimension
Feature
1.Structure in sliding column mode: good tightness and sensitive reaction.
2.4A330-10 Double directional air control valves have memory function.
3.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
4.No need to add oil for lubrication.
5.Multi-mounting helps to install and apply.
6.Integrate with the manifold to save installation space
