Electric System of Span 31.5m IP54 5T A5~A7 QZ Double Girder Overhead Crane with Grab:
1. Control panel protection degree is IP54;
2. Reasonable components installation, convenient for check and maintenance;
Safety Protection Devices of Span 31.5m IP54 5T A5~A7 QZ Double Girder Overhead Crane with Grab:
Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.

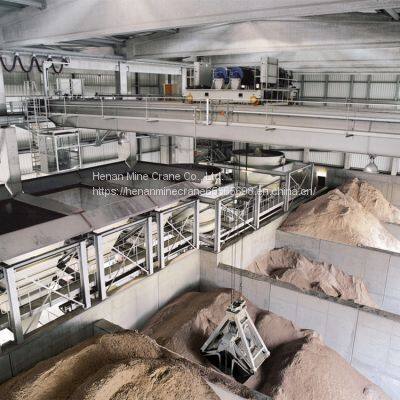

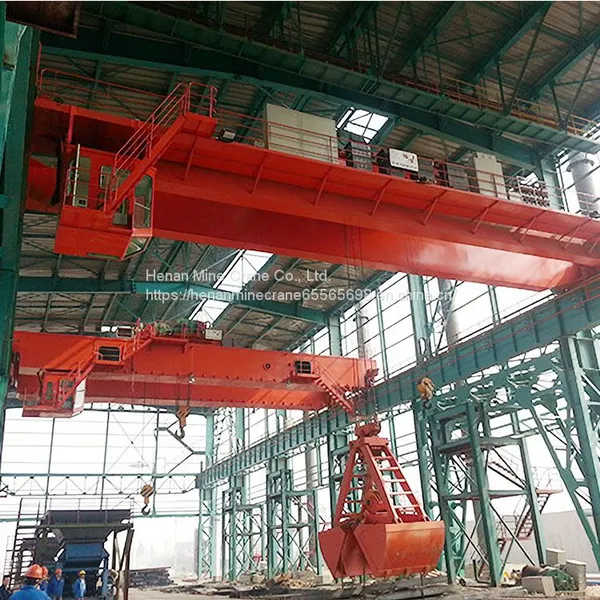

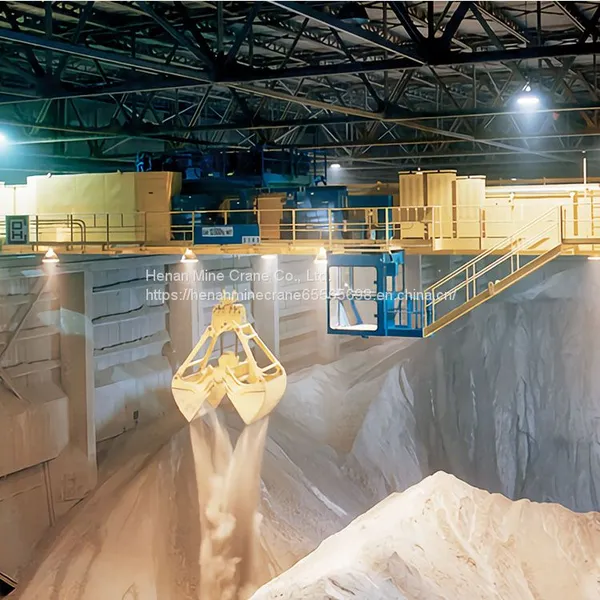

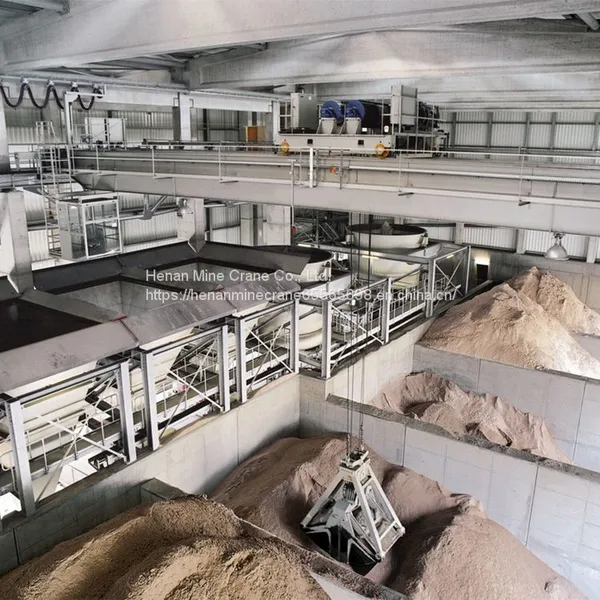

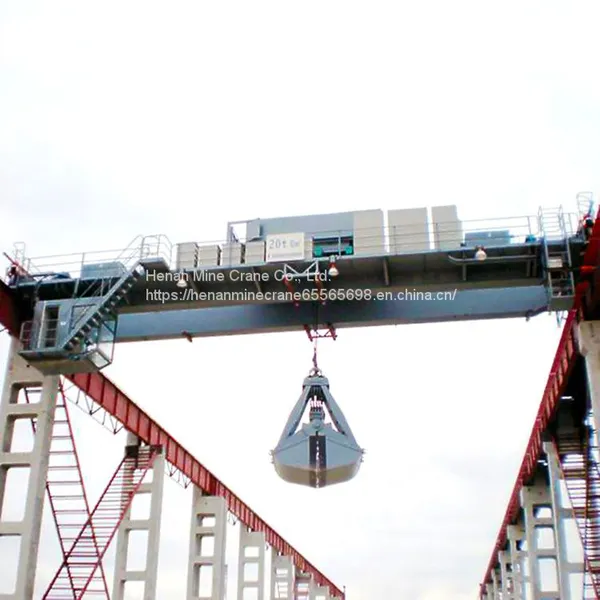

Span 31.5m IP54 5T A5~A7 QZ Double Girder Overhead Crane with Grab is widely used in loading goods in port,factory,workshop, power plant, steel melting plant,cement plant,waste renewable energy industry.The working duty is heavy.The group classification of the crane is A6,A7,A8.
The direction of platform overhead to the driver’s cap is:side,end and top.
The lifting capacity includes the weight of the grab.
The open direction of the grab includes paralleling with the beam and plumbing with the beam,this design is the plumbing type.
The grab overhead crane includes main beam, lifting trolley, wheel, hook, pulley, electrics, grab.
| Lifting Capacity | T | 5t | 10t | 16t | 20t | |
| Span | m | 10.5-31.5m | ||||
| Speed | Lifting | m/min | 40.1 | 40.7 | 41.8 | 48.6 |
| Traveling of Trolley | 44.6 | 45.6 | 43.2 | |||
| Traveling of Crane | 93.7/86.4 | 76/89 | 89/87.3 | 87.3 | ||
| Operational Model | Cabin; remote control | |||||
| Working Duty | A6 | |||||
| Steel track recommended | 43kg/m or QU70 | |||||
| Power Supply | Three-phase A.C. 380V, 50Hz | |||||
Main Features of QZ model Crane:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
Attention:
Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).Safety system:
1. All the cranes are equipped with overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system and so on.
2. All operations are controlled by central control system. Excellent After Sales Service
3. The whole machines would be guaranteed for one year from the test run date.
4. Low charge for continue maintenance when warranty is expired.
Main Product:
Henan Mine Crane meet the demand factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane.
