10+10 Ton QL Model Double Beam Overhead Crane with Revolving Electromagnetism Hanger
Product description of QL Type 10+10 Ton Double Beam Revolving Electromagnetism Hanger Overhead Crane for Sale:

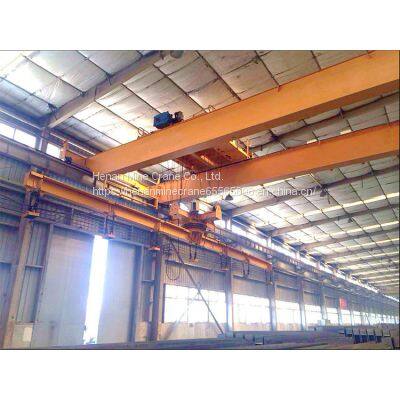

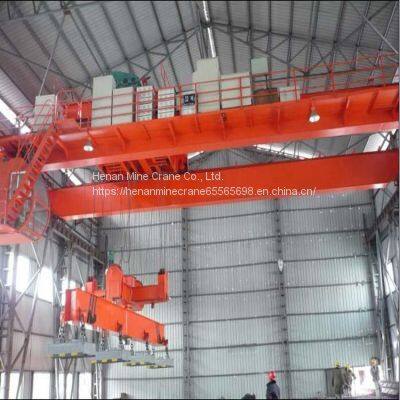

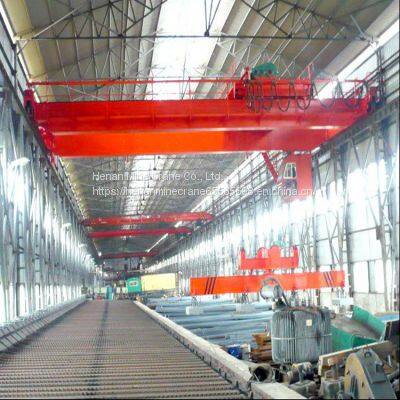

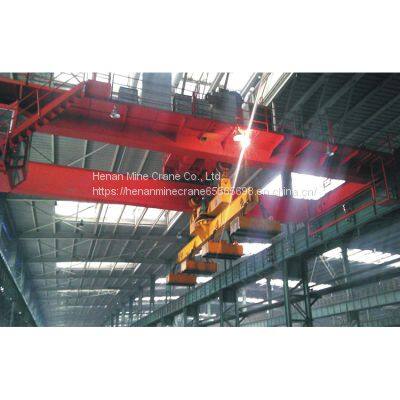

Box Type Double Beam Rotation Type Hanging Beam Magnetic Electric Bridge Crane is one kind of heavy duty overhead crane,it has rotating hanging beam, suitable for handling of steel plate,steel bar,steel billet, it is usually used at steel rolling mill workshop,indoor or outdoor storage yard, warehouse, loading and unloading steel plate, shaped steel, coil and other materials.
The hanging beam adopts rotating structure design which is reliable, safe and has a certain anti swing function. The electromagnetic sucker, clamp and other special sling can be carried under hanging beam.
Main Features of QL Type 10+10 Ton Double Beam Revolving Electromagnetism Hanger Overhead Crane for Sale:
1, This kind of crane is fixed with one pc of rotation type hanging beam which could be rotated to different angle to the main beam direction according to demand.
2, Different type magnetic plate under the hanging beam to handle the steel ingot, billet, rebar and so on.
3, Three lifting points on the rotation type hanging beam to make sure the stable lifting and rotation.
4, Two sets of lifting mechanism to make sure the lifting and traveling very stable.
5, Six action direction with one rotation system on hanging beam to get wider lifting and working area.
6, Working duty from A6 to A7.
7, Soft start, 3-5 speeds to operate, very stable to lift and running.
Safety system of QL Type 10+10 Ton Double Beam Revolving Electromagnetism Hanger Overhead Crane for Sale:
Full safety system as follows:
1.Weight overload protection
2.Emergency stop system
3.Over current protection,Short-circuit protection
4.Phase sequence protection
5.Zero position protection,Voltage loss protection
6.Limit switch and stopper for crane long traveling and cross traveling
7.Lifting overhigh and overlow limit switch
Product technical parameters:
| Lifting weight(T) | 10+10 | 12.5+12.5 | 13.5+13.5 | |
| Span(m) | 28.5 | 28.5 | 31.5 | |
| Max Lifting height(m) | 16 | 10 | 13 | |
| Working class | A6 | A7 | A7 | |
| Speed(m/min) | Hoisting | 11.4 | ||
| Speed(m/min) | Trolley Cross Traveling | 38 | ||
| Speed(m/min) | Crane Long Traveling | 88 | ||
| Motor Type | Electromagnetic brake motor | |||
| Motor (Kw) | Crane Long Traveling | YZR315S-10/55 | YZR315M-10/75 | YZR315M-10/75 |
| Control mode | Pendent line control,Remote control,Cabin control | |||
| Recommended Rail model | QU80 | |||
| Power source | 3Ph A.C 50Hz 380V | |||
Drawings of QL Type 10+10 Ton Double Beam Revolving Electromagnetism Hanger Overhead Crane for Sale:
Sketch of QL Type 10+10 Ton Double Beam Revolving Electromagnetism Hanger Overhead Crane for Sale:
