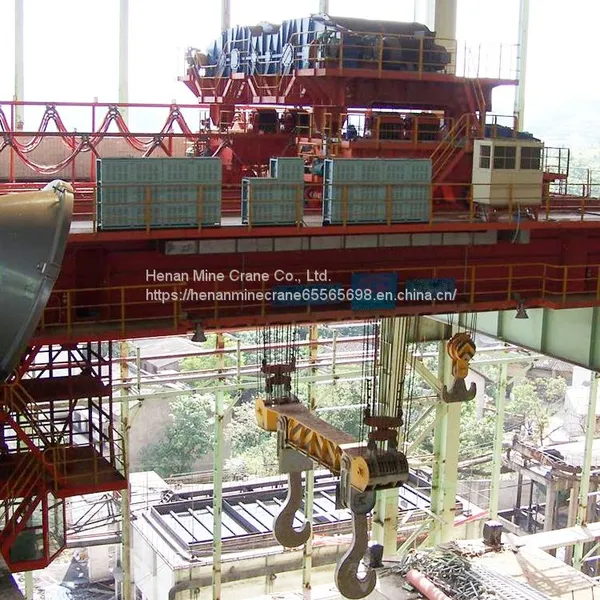

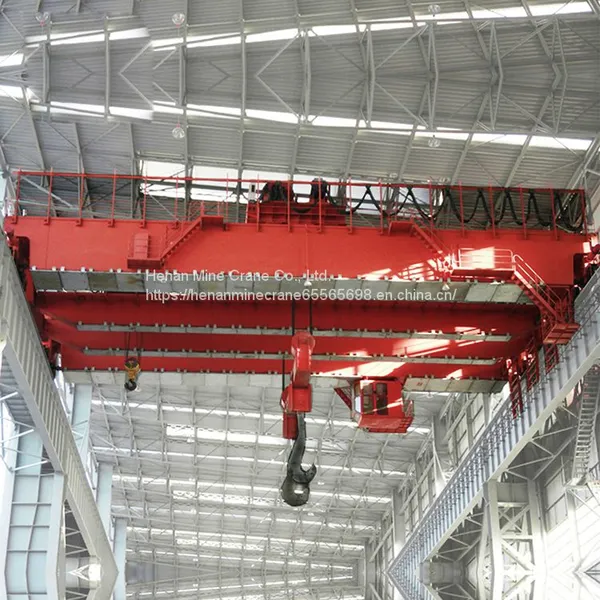

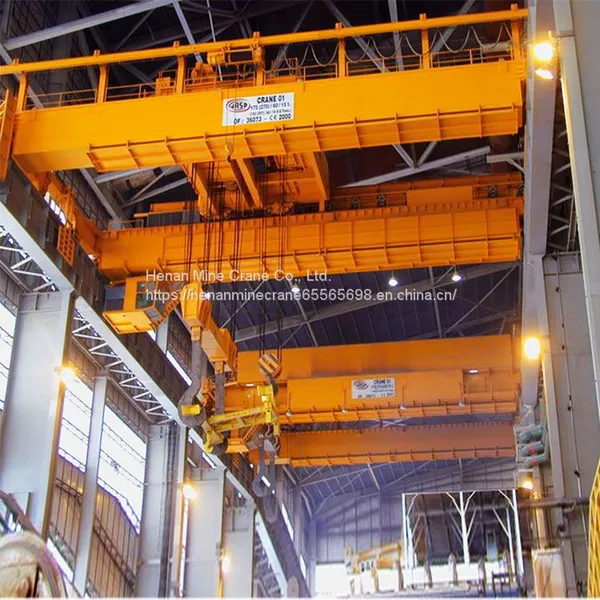

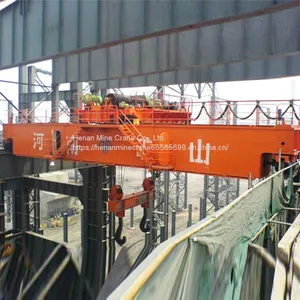

Foundry Crane QDY Model 5ton Double Girder Bridge Crane for Steel Factory
Product Description of Foundry Crane QDY Model 5ton Double Girder Bridge Crane for Steel Factory

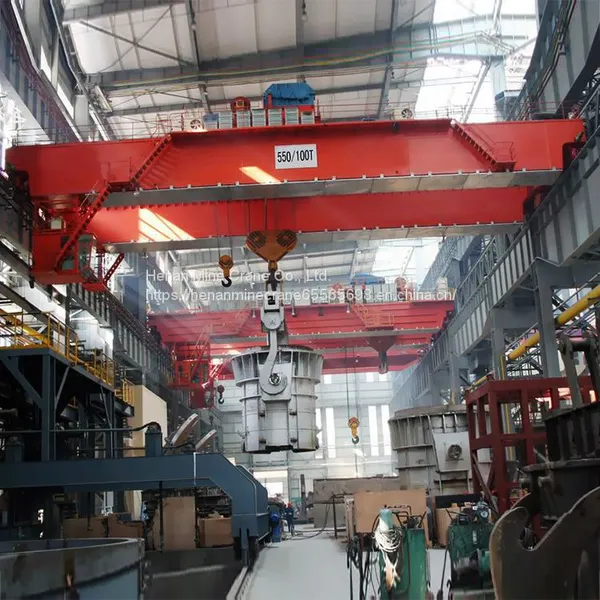

Foundry Crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.Use various speed system with speed ratio as 1:10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.
Product Details of Foundry Crane QDY Model 5ton Double Girder Bridge Crane for Steel Factory
Main Features of Foundry Crane QDY Model 5ton Double Girder Bridge Crane for Steel Factory
Working condition:
1. Working tempreture:-10~+60°C,
2. Work class:A6-A8,
3. Power Source:3ph,380V,50HZ or other under customer requirement.
Safety feature of Foundry Crane QDY Model 5ton Double Girder Bridge Crane for Steel Factory:
1. Weight overload protection device,
2. Top quality long time bearing polyurethane materials buffer,
3. Crane traveling limit switch, Voltage lower protection function,
4. Emergency stop system,
5. Current overload protection system and so on!
Product Structure
| Lifting weight | Primary handcart | T | 100 | |
| Secondary handccart | 30 | |||
| Span | 16 | |||
| Lifting height | Primary handcart | M | 18 | |
| Secondary handccart | 19 | |||
| Working class | A6 | |||
| Speed | Lift | Primary handcart | m/min | 7.54 |
| Secondary handccart | 8.93 | |||
| Travel | Primary handcart | 35.08 | ||
| Secondary handccart | 42.44 | |||
| Motor | Lift | Primary handcart | Type/kw | YZR355M-10/90×2 |
| Secondary handccart | YZR280M-10/55 | |||
| Travel | Primary handcart | YZR160L-8/9×2 | ||
| Secondary handccart | YZR160M1-6/6.3 | |||
| Cart | YZR225M-8/22×4 | |||
| Weight | Primary handcart | T | 66 | |
| Secondary handcart | 10.25 | |||
| Cart | 173 | |||
| Max wheel pressure | KN | 520 | ||
| Steel track | QU120 | |||
| Power supply | 3-phase A.C. 50Hz 380V | |||
