1ton 2ton 3ton 4ton Industrial Energy Saving Wood Chips Coal Fired Steam Boiler for Rice Mill Plant

1ton 2ton 3ton 4ton Industrial Energy Saving Wood Chips Coal Fired Steam Boiler for rice mill plant

Model:DZH Type Moving Grate Stoker Boiler

Structure:WaterTube Fire Tube Three Pass

Rated Steam Capacity:1-20 ton/hr

Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa

Rated Steam Temperature:170/184/194/204/225 C

Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood Processing,Garment and Laundry etc.

DZH series coal/biomass fired steam boiler realizes almost zero pollution with the use of special dust collector solution. This series boiler is single drum horizontal type shell boiler, the combustion equipment is moving grate. The fuel could be II class bituminous coal and biomass fuel, the diameter of coal should be 6-25mm, and ash content should be less than 32.4%, and for the biomass fuel, carbon content should less than 50%, sulphur content less than 0.08%, and ash content less than 3%.

Main Features of Biomass Steam Boiler

1. Moving grate made of cast iron, large furnace design, manual stoker, good applicability of fuel, coal, wood, wood waste, biomass, etc. can be used as fuel.

2. Few moving parts, less investment, low operating costs, low maintenance costs.

3. Forced ventilation, pressure boost fast to make sure enough output.

4. Compact structure, easy to install, reducing the cost of the boiler room and installation cost.

5. Single drum design big water volume, ability to adapt to changes in load.

6. Sufficient combustion, large heating surface, adopt efficient threaded pipe, thermal efficiency higher than the national standard.

Technical specification

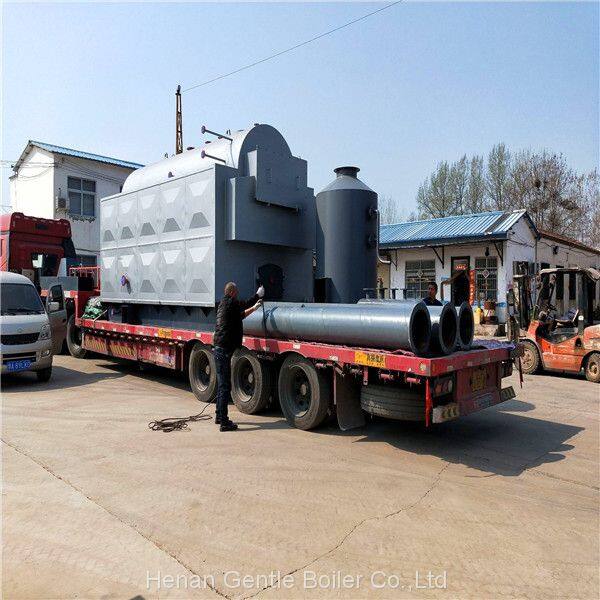

Boiler Picture details

This steam boiler is widely used in different industries such as chemical plant, energy field, food factory, hospital, hotel, laundry, package plant, paper-making mill, pharmaceutical factory, slaughter house, tobacco factory, textiles plant, etc.

For wood steam boiler, we mainly manufacture and supply 1ton/h  2ton /h and 4ton/h with 7bar 10bar 13bar and boiler pressure. our boilers have advantages of high thermal efficiency, energy saving, safety reliable and fully automatic control, and sell well at home and abroad.for foreign market, like Sri Lanka, Bangladesh, Philippines, Vietnam, Laos, Cambodia, India, and other countries.
