300hp 4ton 4000kg/hr Waste Wood fired steam boiler for MDF production plant
Model: 1tons to 15tons/hr steam capacity
Working pressure: 0.7Mpa/1.0Mpa/1.25Mpa working pressure
Degree of automation: 90%, automatic coal feeding/ water feeding/ cinder moving/ over pressure protection.
Application:Food and Beverage,Textile,Plywood,Rice Mill,Chemical,Paper Mill,Rubber Plant etc

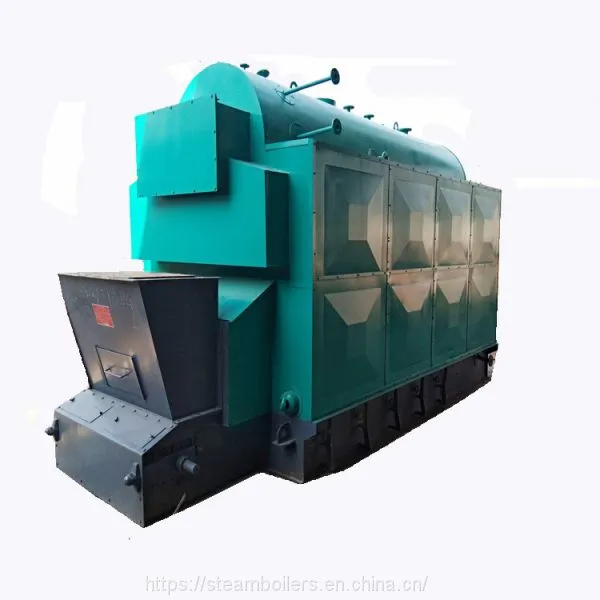

Coal Fired Steam Boiler DZL-Series boiler is horizontal single-drum shell boiler with water-fire tubes. It has chain grate as burning device, upper-in-and-upper-out style natural water circulation with ejection for hot water boiler of this series, the right and left side of furnace as radiant heating surface, two wings of furnace and threaded smoke tubes as convection heating surface and three-dimensional shield shell. Furnace is divided by Smoke baffle wall into combustion chamber (firebox) at front and reburning chamber at back.
Chain Grate Stoker Coal Boiler, Coal Fired Boiler Burning process
Fuel falls from coal hopper onto the front of chain grate, moves along with the chain grate and will be preheated, dried, ignited, burned out. Slag will be discharged by slag remover(eliminator) at any time. Herring bone arch is adopted to improve igniting condition. Smoke forms between front and back arches vortex, completely mix with air, burns out and then goes after each other through smoke flue at two wings, front smoke box, threaded smoke tubes, cast iron economizer(for hot water boiler no cast iron economizer), dust remover, draft fan and will be emitted through chimney.
|
Model Item |
DZL1 | DZL2 | DZL4 | DZL6 | DZL8 | DZL10 (Assembly) |
DZL15 (Assembly) |
DZL20 (Assembly) |
|
| Steam Capacity (t/h) |
1 | 2 | 4 | 6 | 8 | 10 | 15 | 20 | |
| Steam Pressure (MPa) |
0.7/1.0/1.25 | 1.25/1.6 | |||||||
| Steam Temperature (℃) |
170/184/194 | 194/204 | |||||||
| Feed water Temperature(℃) | 20 | 20 | 20 | 20 | 20 | 70 | 70 | 70 | |
| Heating Area(m2) | Body | ~33 | ~50 | ~100 | ~170 | ~200 | ~250 | 316 | 502 |
|
Econom izer |
10.56/20.7 | 27.6 | 52.48/33.12 | 87.2 | 98 | 174 | 351 | 382 | |
| Effective Grate Area(m2) |
2.22 | 2.22 | 4.1 | 5.5 | 7.95 | 9.75 | 11.1 | 23.9 | |
| Fuel Type | II Bituminous Coal, Lower Heating Value Q≈21000KJ/Kg | ||||||||
| Fuel Consumption(kg/h) | ~151 | ~302 | ~600 | ~880 | ~1150 | ~1450 | ~2220 | ~1160 | |
| Exhaust Gas Temperature(℃) | 135-145 | ||||||||
| Thermal Efficiency(%) | 83-85 | ||||||||
| Weight of Biggest Part for Transportation(t) | 17 | 23 | 25 | 35 | 45 | 33(Up Part) 28(Down Part) |
42(Up Part) 35(Down Part) |
50(Up Part) 28(Down Part) |
|
| Overall Dimension of Boiler Assembled L*W*H(m) |
5.1×2.2×3 | 5.5×2.3×3.3 | 6.6×2.6×3.6 | 7.5×2.9×3.8 | 8.1×3.1×3.8 | 7.7×3.2×3.6 8.6×3.0×2.6 |
10×3.24×3.54 12×3.2×3.08 |
11×3.24×3.54 14×3.2×3.08 |
|
Coal steam boiler accessory
Application scope
Industrial users: the pharmaceutical, paper making, tobacco, printing and dyeing, garment and other industries. Civil: catering, laundry room, (hospital) disinfection, sauna, etc.
