Wallys Indoor AP/DR-AP40X9-A Quaclomm IPQ4019/IPQ4029 Support OpenWrt 2.4/5G Dual Bands Wifi6 Router

Wallys indoor AP/DR-AP40X9-A Quaclomm IPQ4019/IPQ4029 support OpenWrt 2.4/5G dual bands wifi6 router

Wallys  has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.

Skype/EMAIL:sales@wallystech.com

APPLICATIONS

+ Profi WiFi hotspot coverage

+ Commercial radio coverage

+ Hotel Wireless application

+ Country coverage

+ Internet for passengers (bus, train, plane, …)

+ Security Surveillance

+ Some special scene application

+ Heavy-duty industrial environment use

Description

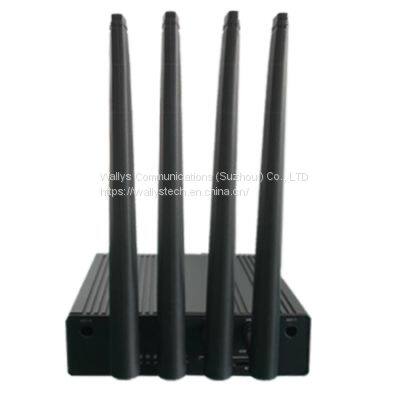

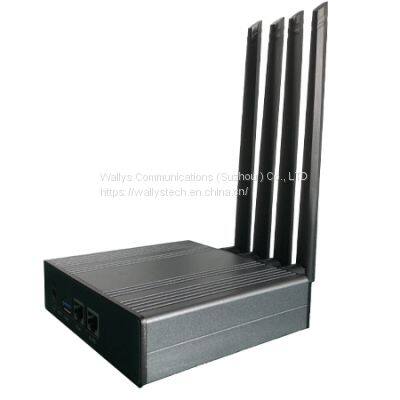

DR-AP40X9-A (Two Versions) is a 2x2 2.4G&5G high power Radio AP Router which including 1x  DR40X9(IPQ4019/IPQ4029) Board;2 x 2.4G&5G dipole Antennas; 1 x PSU(DC power or PoE);

1 x Enclosure.

 Dipole antenna

■  2 x 2.4G&5G Antenna

■  5dBi 2.4GHz/5Ghz

■ SMA Plug interface

■ Plastic rod of black

■ RoHS compliance

Enclosure

■  Dimension: 132x 119 x 34 mm

■  Aluminum alloy material

■  Support Wallys’ PCBA Mainboard

Absolute Maximum Rating




Parameter	Rating	Unit
Supply Voltage	24V~48	V
Operating Temperature Range	-40 to +70	ºC
Storage Temperature Range	-45 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%




Hardware Specifications




Symbol	Parameter
CPU	IPQ4029/IPQ4019（Quad core ARM Cortex A7 at 716.8 MHz）
Antenna Connector	2 x 5G MMCX connectors;2x2.4G MMCX
10/100/1000Mbps Gigabit Ethernet	2xRJ45
SFP connector	1xSFP fiber module connector (optional)
3G/4G connector	1xminipcie 3G/4G connector support with two sim card
USB connector	1xUSB 3.0 connector
POE	24V~48V passive POE
DC Jack	24V~48V power supply
ROHS Compliance	YES
Dimension	115mm x 105mm x 16mm
Max Power	48.1V x 0.180A= 8.658W
Nor Flash	2MB~32MB
Nand Flash	128MB
DDR	256MB~512MB




Radio TX Specifications(5180MHz-5825MHz)




Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
802.11a	6 Mbps	27dBm	30dbm	±2dB
	54 Mbps	23dBm	26dbm	±2dB
802.11n HT20	MCS0, MCS8	26dBm	29dbm	±2dB
	MCS7, MCS15	22dBm	25dbm	±2dB
802.11n HT40	MCS0, MCS8	25dBm	28dbm	±2dB
	MCS7, MCS15	21dBm	24dbm	±2dB
802.11ac	MCS0, MCS10,MCS20	25dBm	28dbm	±2dB
	MCS9,MCS19,MCS29	19dBm	22dbm	±2dB




Radio RX Specifications(5180MHz-5825MHz)

Operating Mode	Data Rate	Sensitivity
802.11a	6 Mbps	-96dBm
	54 Mbps	-78dBm
802.11n HT20	MCS0, MCS8	-93dBm
	MCS7, MCS15	-73dBm
802.11n HT40	MCS0, MCS8	-90dBm
	MCS7, MCS15	-70dBm
802.11AC HT40	MCS0, MCS10,MCS20	-90dBm
	MCS9,MCS19,MCS29	-67dBm
802.11AC HT80	MCS0, MCS10,MCS20	-88dBm
	MCS9,MCS19,MCS29	-62dBm




Radio TX Specifications(2412MHz-2482MHz)




Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
802.11g	6 Mbps	27dbm	30dbm	±2dB
	54 Mbps	25dbm	28dbm	±2dB
802.11n HT20	MCS0, MCS8	26dbm	29dbm	±2dB
	MCS7, MCS15	25dbm	28dbm	±2dB
802.11n HT40	MCS0, MCS8	26dbm	29dbm	±2dB
	MCS7, MCS15	24dbm	27dbm	±2dB
