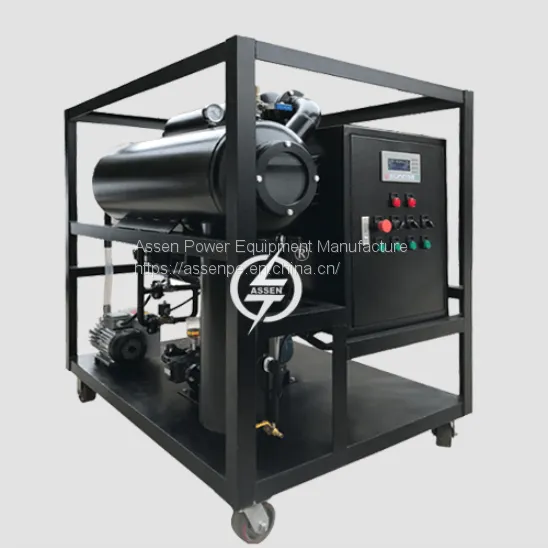

Online Operation ISO Certified Transformer Oil Filtration Machine for Transformer Maintain
ASSEN Online Operation ISO Certified Transformer Oil Filtration Machine is designed for transformer maintenance. It is used in repairing of power transformers and reactors with voltage up to 110 kV inclusively, and for recondition of transformer oils and also at mineral oil facilities in view of further regeneration.
It equips with a two-stage vacuum pumping speed and advaced dewatering and degassing system, which can ensure a perfect vacuum degree and effectively remove water, gas and other impurities in the waste transformer oil. Our large-area three-dimensional flashing technology is designed to remove harmful components such as moisture, impurities, and hydrocarbons in oil quickly and efficiently, amd improve the flashpoint and dielectric strength of insulating oil.
Features
1.Dehydration, degassing, and impurity removal of 110-1100KV main transformer insulation oil.
2.Vacuum drying of 110-1100KV main transformer insulation oil.
3.Enhance the value of breakdown voltage greatly
4.overload stop device
5. low noise oil pumps and friendly to environmental
6. save your human consumption and after treatment, the waste transformer oil can be used as new oil
7. Perfect vacuum degree can ensure the result of treatment
8. reliable, effective and safe to use
Technical Parameters
Parameters Unit ZYD-100 Flow L/Hr 6,000 Working vacuum Mpa -0.08 ～ -0.099 Working Pressure Mpa ≤0.4 Temperature Range ℃ 0 ～ 100 Power 380V,3P,50Hz or as need’s Working hours without Trouble Hour 8000 Continuous Working Hours Hour 360 Working Noise dB（A） 75 Heating Power KW 60 Total Power KW 75 Inlet/Outlet mm Φ40 Weight Kg 750 Overall Length mm 1980 Width mm 1850 Height mm 1850
Details of Main Parts
Assen's Factory and Visitors
Delivery
Assen's Clients
