High Quality Double Stage Vacuum Insulating Oil Regeneration Machine, Transformer Maintenance
Performance
In a single pass through the purifier at a full flow rate:
Water Removal: 50ppm →
Gas Removal: fully saturated with air (10% to 12% by volume) → 0.1% by volume.
Particulate Matter Removal: 98% of particles over 0.5mm or over 1 mm or over 5mm at customers preference.
Dielectric Strength: Improve dielectric strength up to 75-80KV for New oil.
Acid Removal: after treatment, the acid value will down to less than 0.1mgKOH/g
Free Carbon Removal: no free carbon's residue
FEATURES
1.Strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
2. the BDV is 75kv or higher after treatment
3.Double-horizontal film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4.Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5.Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6.Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8.Functions of live line work onsite, vacuum drying and vacuum oiling.
9. the fuller earth filter elements are easy to replace and not cost too much.
10. can be used to purify new transformer oil, light polluted and seriouly aging transformer oil

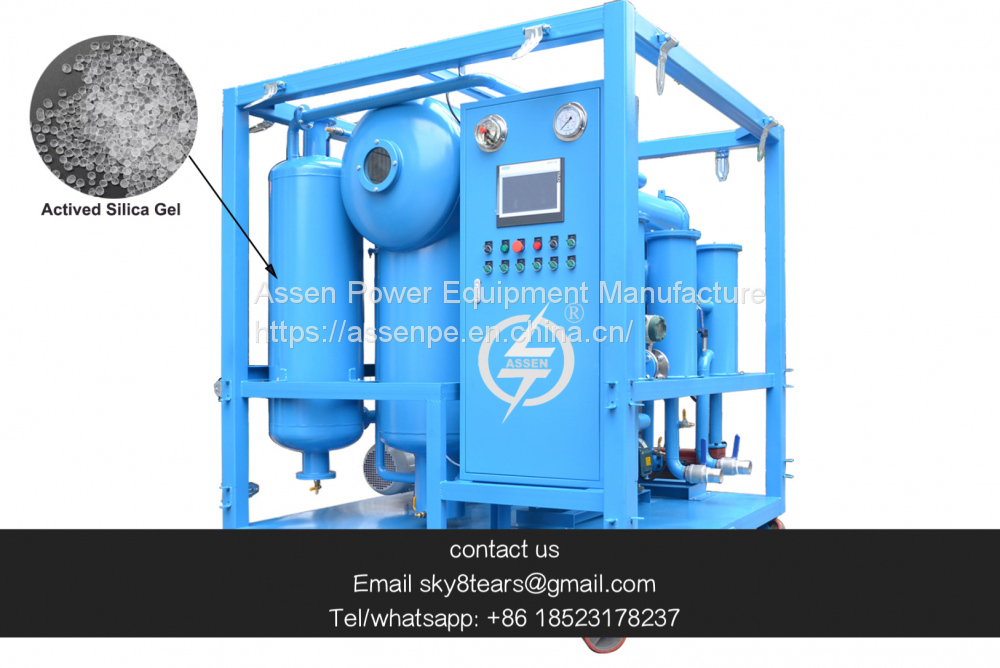

11. Materials in regeneration tank can be replaced easily
Technical Specifications
Parameters |
Unit |
ZYD-I-30 |
ZYD-I-50 |
ZYD-I-100 |
ZYD-I-150 |
ZYD-I-200 |
ZYD-I-250 |
ZYD-I-300 |
|
Flow rate |
L/min |
30 |
50 |
100 |
150 |
200 |
250 |
300 |
|
Working vacuum |
Mpa |
-0.095 ～ -0.099 |
|||||||
Working Pressure |
Mpa |
≤0.5 |
|||||||
Temperature Range |
℃ |
20 ～ 80 |
|||||||
Power supply |
Three Phase 50HZ 380V |
||||||||
Working hours without trouble |
Hr |
≥4000h |
|||||||
Continuous working hours |
Hr |
≥720h |
|||||||
Working Noise |
Db（A） |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
Heating Power |
KW |
30 |
36 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
KW |
35.5 |
41 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
Kg |
420 |
500 |
650 |
950 |
1100 |
1500 |
1850 |
|
Overall |
Length |
mm |
1350 |
1480 |
1890 |
2150 |
2300 |
2550 |
2770 |
Width |
mm |
1050 |
1150 |
1550 |
1750 |
1850 |
2050 |
2200 |
|
Height |
mm |
1300 |
1450 |
1850 |
1950 |
2100 |
2400 |
2700 |
|

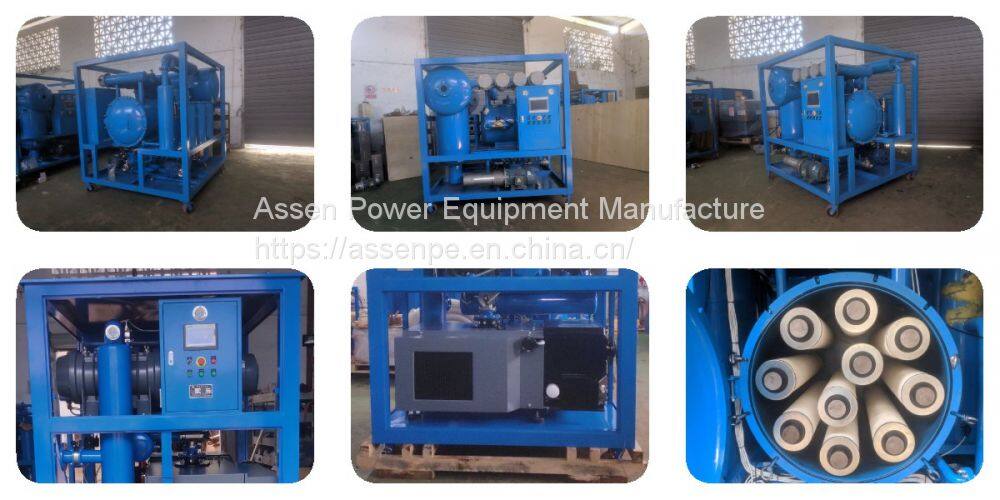

Real Photo
Assen Designed Optional modes for Your Needs
| 1.PLC Mode | Optional P.L.C. intelligent panel control, touch screen operation and dynamic display according to user needs |
|---|---|
| 2.Flow Control Mode | Optional frequency converter, you can adjust the flow according to your needs |
| 3.Online Measuring Mode | Optional Online PPM Meter, Optional flow meter with accumulator function. |
| 4.Variable Mode | The whole structure can be made into mobile, fixed, fully enclosed, concealed, canvas, open type. |
| 5.Double Dehydrating Mode | Optional two high vacuum dehydrating chamber system for higher vacuum degree work |
Assen's Information
Professional
20 years experience of manufacturing and exporting oil purification machines
Reliable
24/7 after service and technical support
Efficient
Customized your waste oil solutions by our team
Assen's Main Products
Assen's Onstie Project
Assen's World Partners
Chongqing Assen Power Equipment Co.,LTD
which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff, professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification System, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Lubricating Oil Purification, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipment operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
ASSEN warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of twenty-six (26) months from the date of shipment or twenty-four (24) months after the start-up of the system. ASSEN's obligation under this warranty is limited to repairing or furnishing, a similar part to replace any part, which was proven to be defective within the warranty period.
1. We customize the machine to your requirements.
2. We have more than 20 years of export experience.
3. We offer our customers high-quality products at a competitive price.
4. We offer our customers excellent after-sales service.
5. We are not satisfied until our customers are satisfied.
