DDS1946 Energy Management ac dc Din Rail Mounted Energy Meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
DDS1946-1p Smart Building High Accuracy Multi Tariff 1P Din Rail Energy Meter
-
DSSF1946 Intelligent Building Automation Power Monitor Din Rail Mounted Kwh Meter
-
DDSF1946-1p Tariff Energy Counter High Accuracy MID Approval 1p Kwh Din Rail Meter
-
DDS1946-1p Smart Building High Accuracy Multi Tariff 1P Din Rail Energy Meter
-
DTSY1946A LCD Display RS485 Remote Monitoring Din Rail Mounted 3 Phase Prepaid Meter
-
PD194Z-E14D Din Rail Digital Voltmeter Lora Rtu Power Factor Meter
Product Description
Product Description

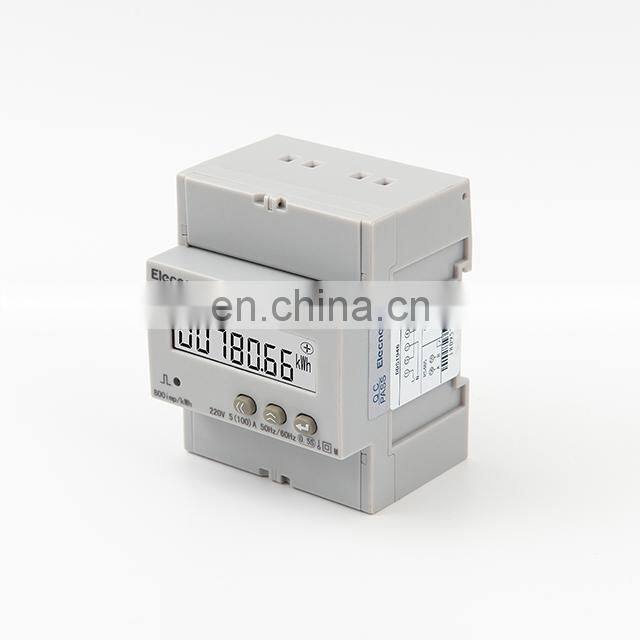

Product Name: DDS1946 energy management ac dc din rail mounted energy meter
The din rail mounted electric energy meter adopts advanced energy metering chip, which is designed and manufactured by digital sampling processing technology and SMT process. The series of electric energy meters adopts a modular structure, which is convenient to install and reliable in operation.
Technical parameters
DDS1946-1P DDSF1946-1P | DDS1946-2P DDSF1946-2P | DDS1946 DDSF1946 | DSS1946 DSSF1946 | DTS1946 DTSF1946 | |||||||
Normal Voltage | 230V | 230V | 230V | 3*400V | 3*230/400V | ||||||
Current | Direct input | 5(40)A | 5(100)A | 5(100)A | 5(100)A | 5(100)A | |||||
Via CT input | - | - | 1.5(6)A | 1.5(6)A | 1.5(6)A | ||||||
Accuracy | Class 1(Optional:Class 0.5S) | ||||||||||
Frequency | 45Hz~65Hz | ||||||||||
Voltage Range | 0.8Un~1.2Un | ||||||||||
Start Current | Direct input | 0.004Ib | |||||||||
Via CT input | 0.002In | ||||||||||
Consumption | <2VA | ||||||||||
Energy Pulse | 1 output, pulse width (80±20%) ms | ||||||||||
RTC Error | ≤0.5s/day | ||||||||||
Communication | RS485, Modbus-RTU, 2-wire, up to 9600bps | ||||||||||
IP Degree | Front: IP51 | ||||||||||
Operating Temperature | -10℃ ~ 55℃ | ||||||||||
Storage Temperature | -25℃ ~ 70℃ | ||||||||||
Relative Humidity | ≤93% | ||||||||||
certificate | CE, CCC,MID | ||||||||||
Recommend Products
Application
■ Energy management
■ Sub-item metering
■ Power monitoring
■ Remote monitoring of electrical equipment
■ Din rail mounted meter
Production Process
SMT
AOI Test
Plug-In Mounting
Wave Soldering
Assembling
Inspection
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
