Product Description
Product Description

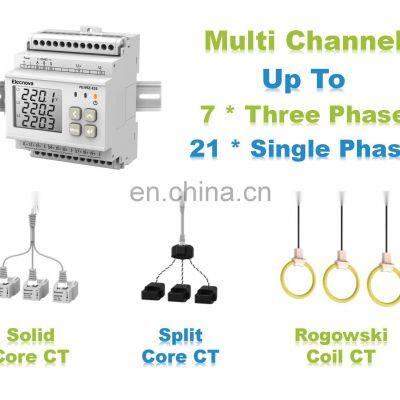

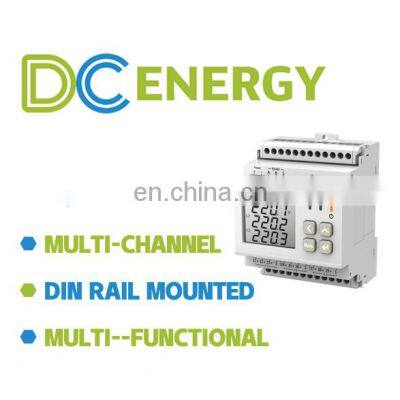

Product Name：DC floor-mounted charging stations components digital multi channel meter power monitoring system
PD195Z-E33 is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
Technical parameters
Display mode | LCD | |
Accuracy | U/I/P | 0.5 Class |
Energy | 1 Class | |
Voltage Input | Rated value | DC 40-1000V direct access |
Overload | Continuous:1.2Vn | |
Power consumption | ≤0.2W | |
Impedance | ≥6MΩ | |

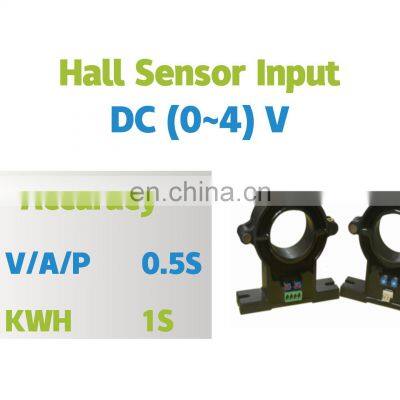

Current Input | Rated value | DC 0-4V(external hall sensor) |
Overload | Continuous:1.2In | |
Power consumption | ≤0.1mW(each channel) | |
Auxiliary Power Supply | Working Range | AC,DC 80~270V, 50/60Hz |
Consumption | ≤5VA | |
Communication | RS485,Modbus-RTU ,2-wire,up to 9600bps | |
Digital input | Optocoupler isolation,dry contact type (optional EK1 module) | |
Relay output | Contact capacity: AC 250V/5A, DC 30V/5A | |
Environment Conditions | Operating temperature | -20℃~70℃ |
Storage temperature | -30℃~80℃ | |
Relative humidity | ≤93% | |
Altitude | ≤2500m | |
Insulation | ≥2kvac |
COMM module selection
Recommend Products
Application
■Wind Power Generation
■Remote Power Monitoring
■Din Rail mounting instrument
■Energy efficiency management
