Product Description
Product Name: MID approved kwh multimeter multitariff din rail digital voltmeter

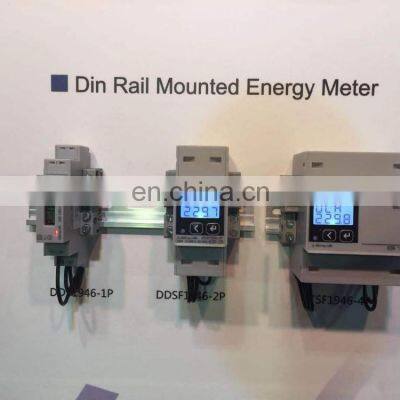

The din rail mounted electric energy meter adopts advanced energy metering chip, which is designed and manufactured by digital sampling processing technology and SMT process. The series of electric energy meters adopts a modular structure, which is convenient to install and reliable in operation.
Technical parameters
DDS1946-1P
DDSF1946-1P
DDS1946-2P
DDSF1946-2P
DDS1946
DDSF1946
DSS1946
DSSF1946
DTS1946
DTSF1946
Normal Voltage
230V
230V
230V
3*400V
3*230/400V
Current
Direct input
5(40)A
5(100)A
5(100)A
5(100)A
5(100)A
Via CT input
-
-
1.5(6)A
1.5(6)A
1.5(6)A
Accuracy
Class 1(Optional:Class 0.5S)
Frequency
45Hz~65Hz
Voltage Range
0.8Un~1.2Un
Start Current
Direct input
0.004Ib
Via CT input
0.002In
Consumption
<2VA
Energy Pulse
1 output, pulse width (80±20%) ms
RTC Error
≤0.5s/day
Communication
RS485, Modbus-RTU, 2-wire, up to 9600bps
IP Degree
Front: IP51
Operating Temperature
-10℃ ~ 55℃
Storage Temperature
-25℃ ~ 70℃
Relative Humidity
≤93%
certificate
CE, CCC,MID
COMM module selection

PD194Z-C10

Communication：LoRa wireless transmission module

S12 Gateway

Communication：Modbus-RTU/DLT645 to Modbus-TCP

S15 Gateway

Communication：2/3/4G, NB-IoT, WiFi, Bluetooth, LoRaWAN, ZigBee
Related Products
Application
■ Energy management

■ Sub-item metering

■ Power monitoring

■ Remote monitoring of electrical equipment

■ Din rail mounted meter
Production Process

                             SMT                                             AOI Test                                  Plug-In Mounting

                Wave Soldering                                  Assembling                                     Inspection

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.


Q: Does your company provide customized manufacturing?

A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.


Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? is it free or extra ?
A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
