Rs485 communication interface iot lora wireless transmission module
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
DTSF1946-4p smart building three phase multifunction din rail mounted kwh meter
-
PD194Z-E14 multi circuit din rail mounted remote management digital power meter
-
PD195Z-E33 DC 3 phase din rail mounted remote power monitoring meter
-
DDS1946-2p smart building digital din rail single phase electric energy meter
-
DDS1946-L cost-effective din rail mounted bi-directional energy meter
-
PD194Z-E14 multifunctional din rail multi channel energy meter
Product Description
Product Description
Product name：Rs485 communication interface iot lora wireless transmission module
PD194Z-C10 wireless transparent transmission module, hereinafter referred to as C10 module, is based on
LoRa wireless modulation method. C10 module supports 433MHz/470MHz frequency spectrum. Its maximum transmission distance is 5kms via LoRa spread spectrum technology in open area. C10 module has strong anti-interference ability and high sensitivity.
LoRa wireless modulation method. C10 module supports 433MHz/470MHz frequency spectrum. Its maximum transmission distance is 5kms via LoRa spread spectrum technology in open area. C10 module has strong anti-interference ability and high sensitivity.
Advantage
■ power supply：by itself
■ Launch frequency：100MW
■ communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters

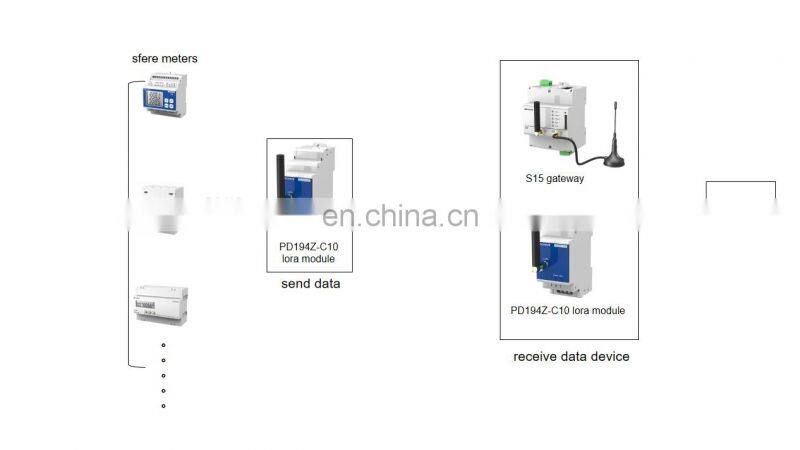

Data flow
Product Paramenters
Item | Parameters | ||
Wireless interface | T/R frequency | 470MHz～510MHz，0.1MHz | |
Modulation method | LORA | ||
Transmitting power | +17.6dBm/100mW | ||
Receiving sensitivity | -139dBm@0.81Kbps | ||
RS485 interface | Communication method | Semi duplex | |
Baud rate | 2400～19200bps, defaulted as 9600bps | ||
Data format | n81/n82/o81/e81, defaulted as n81 | ||
Power supply | Voltage range | PD194Z-C10: AC/DC 80～270V | |
PD194Z-C11: DC24V | |||
Consumption | <2VA | ||
Working environment | -25℃～70℃，≤93%RH | ||
Storage environment | -40℃～85℃，≤93%RH | ||
