Product Description

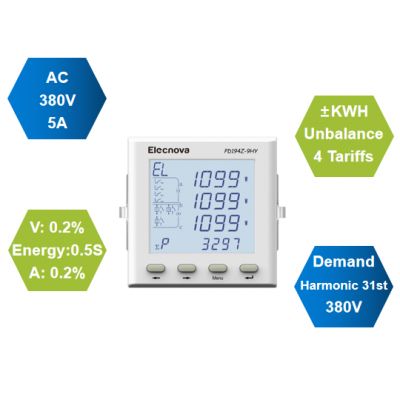

PD194Z-9HY LCD multi function 3 phase power meter RS485 output 4-20mA can measure various common electric parameters such as active/ reactive, harmonic distortion, with functions of digital communication, over-range alarm, switch monitoring status, energy pulse output and analogue transmitting. 9HY series are of high performance-cost ratio，can replace the conventional measuring indicators, power metering device, harmonic measuring meter. As an advanced smart and digital front end data sampling unit, the meters can be used in various control system, energy management system, substation automation, residential power monitoring, industrial automation, smart buildings, smart distributor，and switch gears. They are easy to install, connect, maintain. They need less project cost and field programming on spot for power grid grouping with different PLC and industrial control PC communication software.
Specification
Feature | Parameters | ||||
Accuracy | U, I: 0.2 class, P, Q, PF: 0.5 class, Harmonic: A class, Active energy: 0.5S class, Reactive energy: 2 class, Analog output: 0.5 class | ||||
Display | LCD | ||||
Power Grid | 3 phase 4 wire, 3 phase 3 wire, single phase | ||||
Voltage | Rated Value | AC100V, AC380V | |||
Overload | Sustainable: 1.2 times, Instantaneous: 2 times/10s | ||||
Consumption | <0.1VA(each phase) | ||||
Impedance | >1MΩ | ||||
Rated Value | AC1A, AC5A | ||||
Overload | Sustainable:1.2 times, Instantaneous:10 times/5s | ||||
Consumption | <0.1 VA(each phase) | ||||
Impedance | <20mΩ | ||||
Frequency | （50±5%）（60±5%）Hz, accuracy: ±0.01Hz | ||||
Harmonic | Voltage, current total harmonic distortion and 2-15 times odd harmonic distortion | ||||
Energy | Dual direction active and reactive metering | ||||
Working range | AC, DC: 80V～270V | ||||
Consumption | <5VA | ||||
Energy pulse output | 2 loops energy pulse output, photo coupler relay, constant 5000imp/kWh (kvarh) | ||||
Communication port | 1 loop RS-485，MODBUS-RTU, Baud rate: 2400~9600 | ||||
Digital input | At most 4 loops digital invariables input, dry node connection | ||||
Relay output | At most 3 cycles relay output, AC250V/5A, DC30V/5A | ||||
Analog output | 1 analog output: 0/4～20mA or 0～5/10V | ||||
Operating environment | -20~65℃, humidity ≤93%, no erosion gas, altitude≤2500m | ||||
Storage environment | -25~75℃,humidity≤93% | ||||
Insulation | Signal, power, output terminal to shell resistance>100MΩ | ||||
Withstand voltage | Input and power>2kV, Input and output>1kV, power and output>2kV | ||||
