Product Description

Product Name: Sfere700 series 3 phase remote power monitoring system multi circuit power meter

Sfere700 Multi-circuit power monitoring system is particular for the LV substation system.

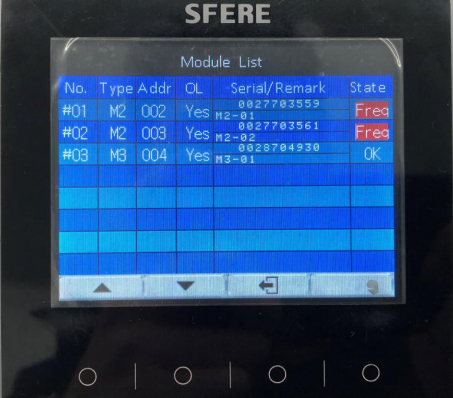

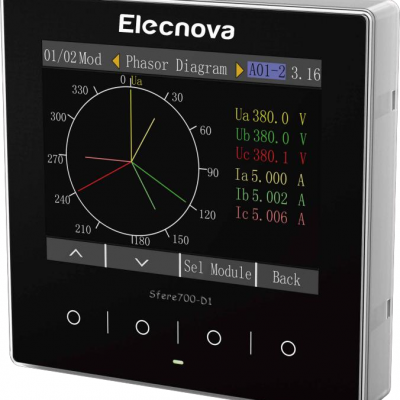

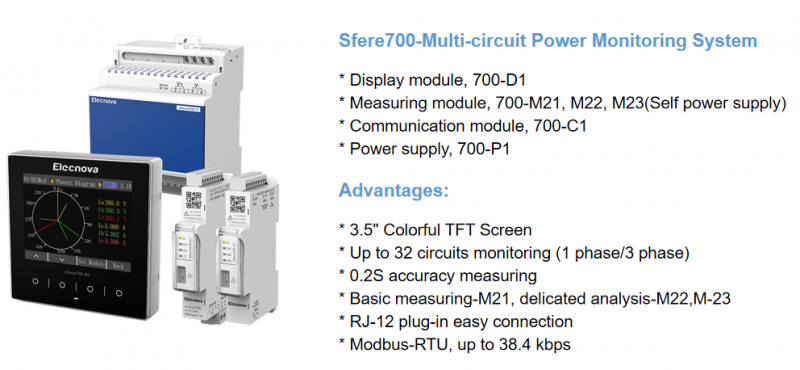

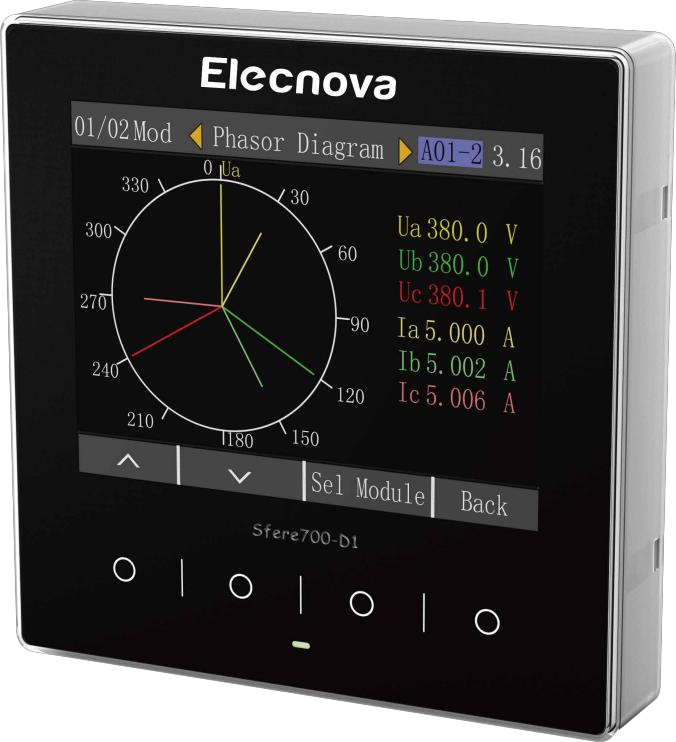

The system combines with the Sfere700-D1 display module, Sfere700-C1 communication module, Sfere700-P1 power supply module and Sfere700-M measuring modules. The measuring modules measures consumption and monitor the system at the closest point to the loads.

Technical Parameter

Model	Sfere700-M1	Sfere700-M2	Sfere700-M3
V/A/F/P/Q/S/PF	■	■	■
Demand	■	■	■

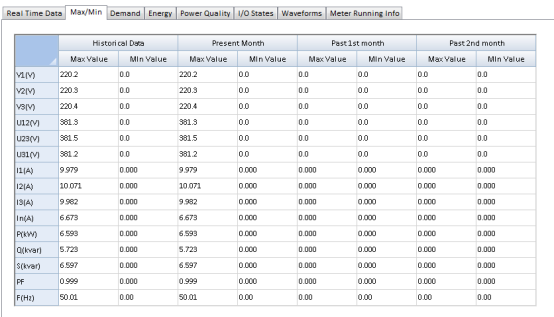

Max./Min./Avg.Value	■	■	■
Fundamental V/A/P/Q/S/PF	-	-	■
±kwh/±kvarh/±kvah	■	■	■
Four-quadrant Reactive Energy	■	■	■
Tariff Energy	-	■	■
Fundamental Energy	-	-	■
THD	■	■	■
Harmonics V/A	-	1st-63rd	1st-63rd
Unbalance	-	■	■
Crest factor/k Factor	-	■	■
Flicker	-	-	■
Transient	-	-	■
Demand Record	-	■	■
Max./Min./Avg.record	-	■	■
Off-limit Record	-	■	■
SOE Record	-	■	■
Digital Input	2	2	2
Relay Output	1	1	1
Note:“■”：Yes “-”：No

Connection	RJ12 cable

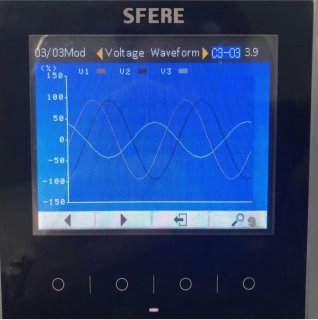

Display	3.5"TFT,320xRGBx240,16.7m colors
Button	4 Capacitive buttons with backlight
Breathing Light	LCD OFF: 1Hz ,Alarm:2Hz
IP Degree	Front:IP67
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
Relative Humidity	≤95%RH
Safe power supply	(24±20%)DC
Consumption	≤2W

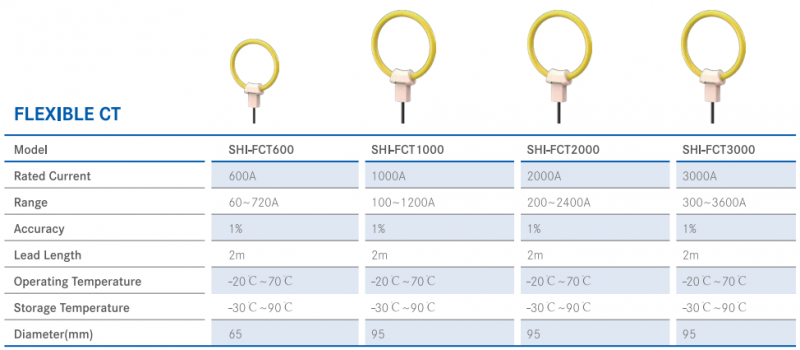

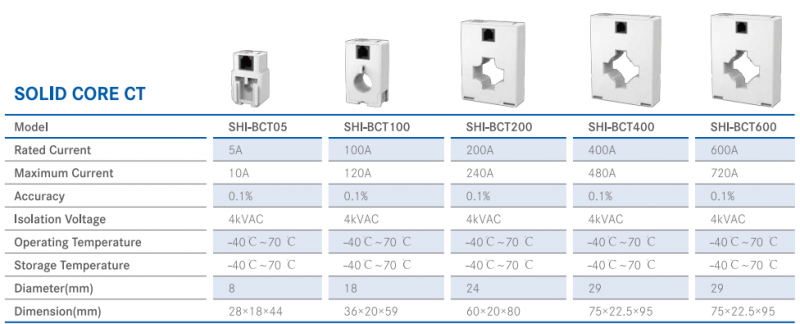

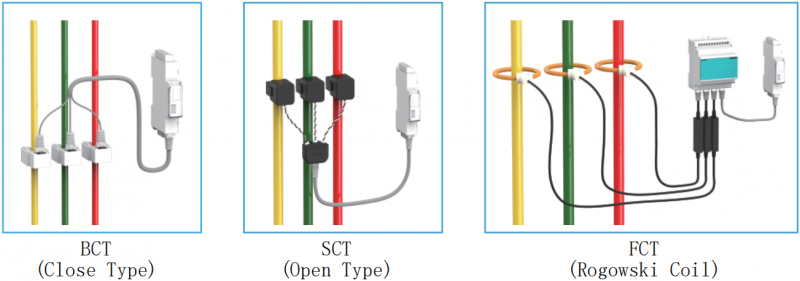

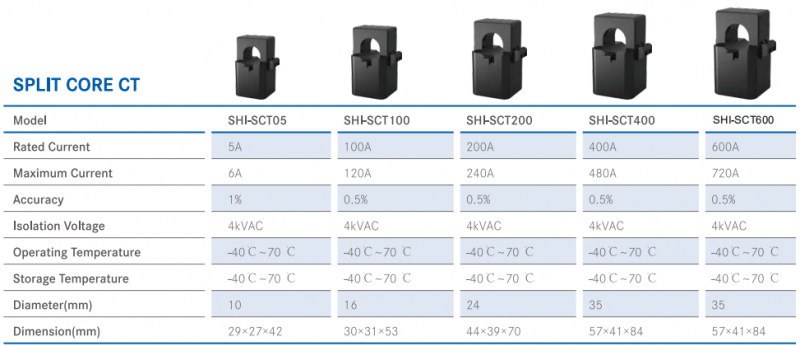

CT Option

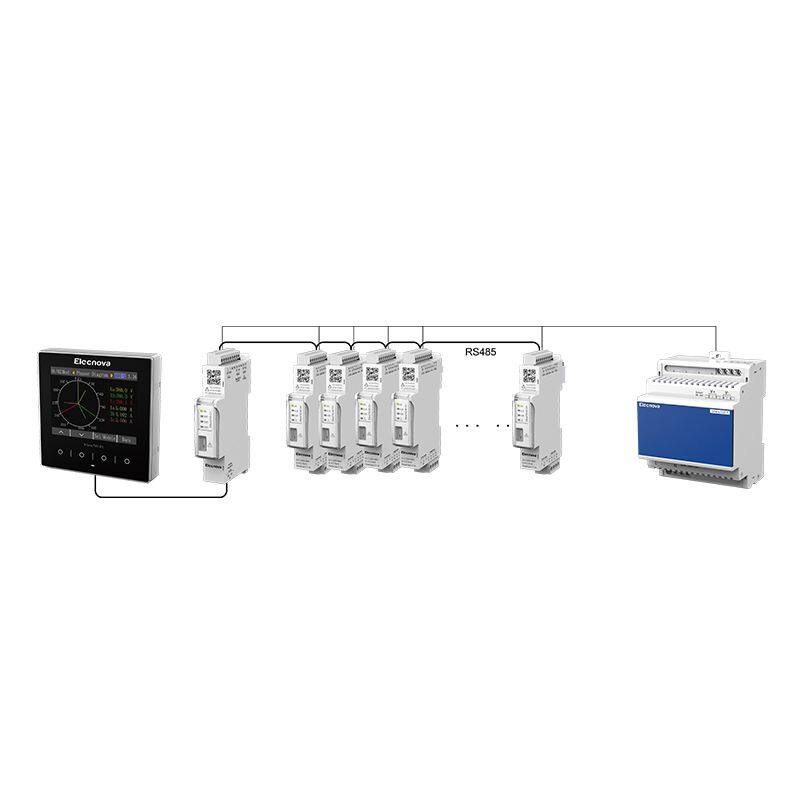

The flexibility of these modules allows the user to allocate the loads to be measured or monitored through independent current input. The system could be configure connected current sensors automatically with the easy plug-in RJ12 connectors. The measuring circuit is available both single-phase and three-phase circuits up to 32 circuits. The system is fully comply to the IEC61557-12 standard. The measuring data could be display on the Sfere700-D1 display module or could be send over RS485 interface to an extend software or PLC.

Functions

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
