PA194I-9K1 96*96mm single phase panel mounted amperemeter analog output RS485
- T/T Credit Card
You May Like
-
SU48Y 48*48mm single phase lcd digital display panel ac mini volt meter
-
S3U96 96*96mm three phase digital LED panel ac economical volt meter
-
S3I96 96*96mm 3 phase digital panel LED ac electric current meter
-
PA194I-AX1 74*74mm single phase LED digital display AC small ammeter
-
PZ194U-9X4 three phase panel mount digital display ac voltmeter
-
PA194I-9K1 96*96mm single phase digital panel ac micro ammeter with analog output RS485
Product Description
single phase amperemeter

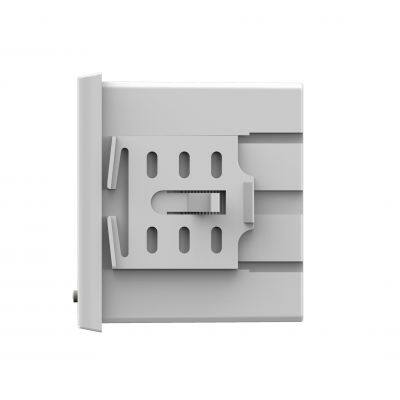

1.Product display
2.Product introduction
PA19 series digital display ammeters are used to measure single phase or three phase AC current in low voltage distribution system. They are equipped with analog output, relay output, digital input and communication supporting Modbus-RTU protocol. Their transmitting ratio also can be changed through programming. There are different choices of outline size for this kind of meters. So they are suitable to replay analog pointer ammeters.
This series digital display AC voltage meters have high environment adaptability because their working temperature range is -40~70℃ and EMC better than III level. They can be applied in control systems, distribution automation systems, industrial automation systems and intelligent buildings.
3.Technical specification
Accuracy | 0.2%, 0.5%(defaulted) | |
Data refresh rate | 1s | |
Input | Rated value | AC 1A, 5A |
| Range | (0.005 ~ 1.2)In |
| Overload | Continuous 1.2In,Instantaneous 10In/5s |
| Frequency | 45~65Hz |
Power supply | Working range | AC 80~270V (50/60Hz), DC 80~270V,DC 24V |
| Consumption | ≤5VA |
Digital input | Dry contact mode | |
Relay output | Contact capacity (resistive):AC 5A/250V, DC 5A/30V | |
Analog output | Current output | DC 4~20mA, 0~20mA etc., load ≤350Ω |
| Voltage output | DC 0~5V, 1~5V etc., load ≥20kΩ |
Communication | RS485 interface,Modbus-RTU protocol,baud rate 2400~9600bps | |
Environment | ||
Protection degree | Panel IP64, case IP20 | |
Working temperature | -40~70℃(LED), -25~70℃(LCD) | |
Storage temperature | -40~85℃ | |
Relative humidity | ≤93%RH | |
Insulating ability | Between power and input or output≥AC2kV, Between input and output≥AC1kV | |
Altitude | 2500m | |
