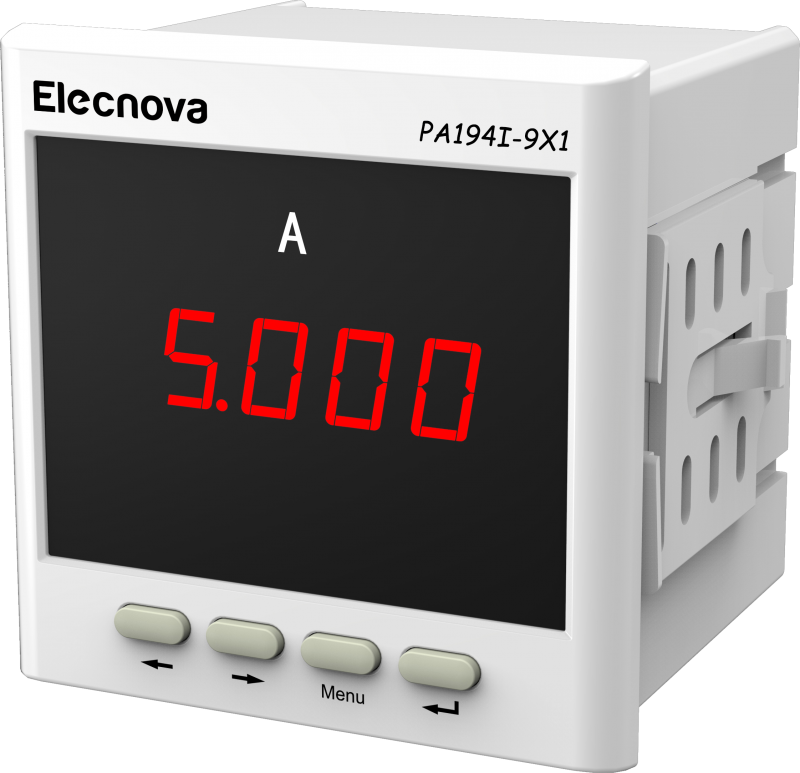

Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter

Jiangsu Sfere Electric Co., Ltd.
Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter thumbnail-1
Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter thumbnail-2
Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter thumbnail-3
Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter thumbnail-4
Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter thumbnail-5
Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter photo-1
Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter photo-2
Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter photo-3
Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter photo-4
Elecnova PA194I-9X1 96*96mm High Precision 1 Phase LED Display 220V AC Digital Ampere Meter photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

This series digital display AC voltage meters have high environment adaptability because their working temperature range is-40~70℃ and EMC better than III level. They can be applied in control systems, distribution automation systems, industrial automation systems and intelligent buildings.

Technical Parameter
Accuracy
0.2%, 0.5%(defaulted)
Data refresh rate
1s


Input
Rated value
AC 1A, 5A
Range
(0.005 ~ 1.2)In
Overload
Continuous 1.2In,Instantaneous 10In/5s
Frequency
45~65Hz

Power supply
Working range
AC 80~270V (50/60Hz), DC 80~270V,DC 24V
Consumption
≤5VA
Digital input
Dry contact mode
Relay output
Contact capacity (resistive):AC 5A/250V, DC 5A/30V
Analog output
Current output
DC 4~20mA, 0~20mA etc., load ≤350Ω
Voltage output
DC 0~5V, 1~5V etc., load ≥20kΩ
Communication
RS485 interface,Modbus-RTU protocol,baud rate 2400~9600bps
Environment
Protection degree
Panel IP64, case IP20
Working temperature
-40~70℃(LED), -25~70℃(LCD)
Storage temperature
-40~85℃
Relative humidity
≤93%RH
Insulating ability
Between power and input or output≥AC2kV,
Between input and output≥AC1kV
Between input and output≥AC1kV
Monitoring Solution

PD194E-2H4 smart energy meter can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.

Recommend Products
Packing & Delivery

1. Bubble film packaging

2. Suitable boxes packaging

3. Carton packaging

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory located in Jiangyin City, Jiangsu province.

Q: How long is your delivery time?

A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.

Q: Do you provide samples ? is it free or extra ?

A: Free sample is available, freight collect.

Q: What is your terms of payment ?

A: Payment<=3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
