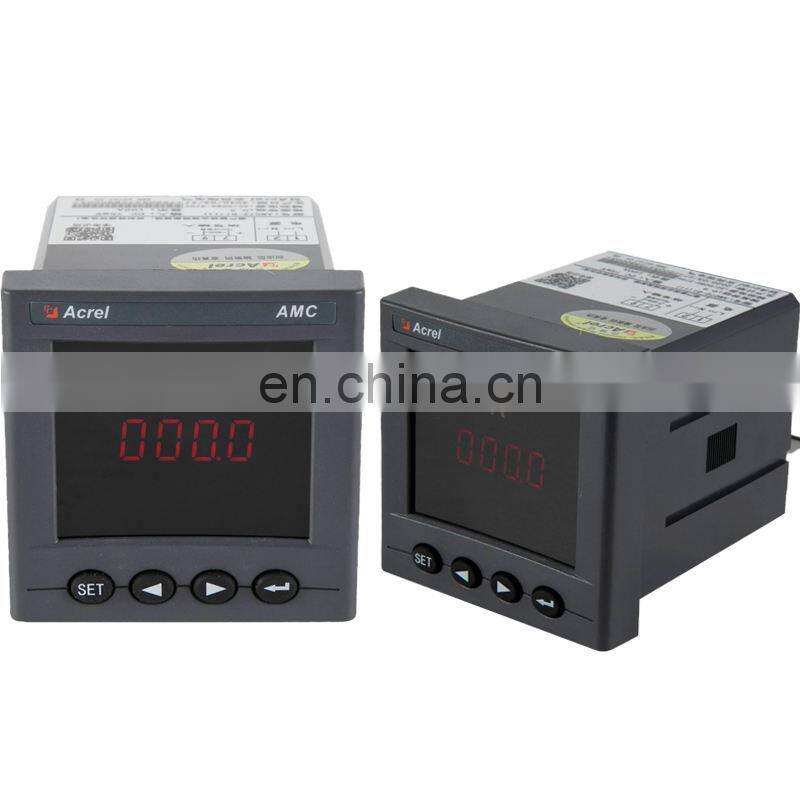

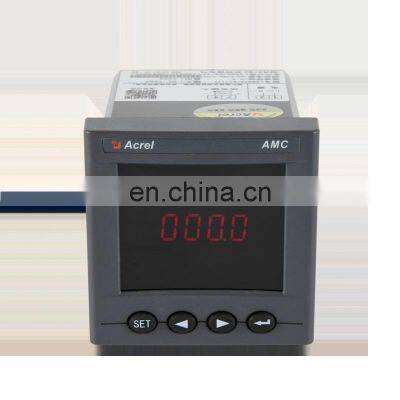

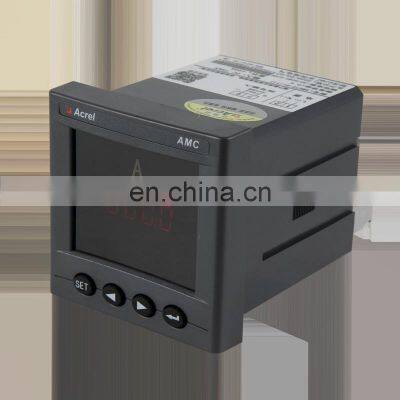

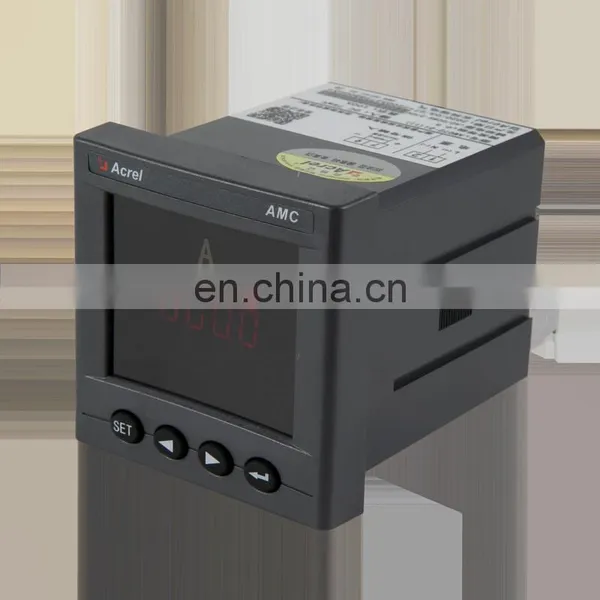

Panel Mountable Type DC Ammeter AMC72-DI/C Input DC0-5A LED Display Digital DC Ammeter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel LCD Display Relay Alarm Output Direct Connect China Solar pv Energy Meters Electronic Measuring InstrumentsNegotiableMOQ: 1 -
LCD Display PZ72L-DE Multi Tariff Energies Optional dc Solar pv Energy Monitor Energy Meter for Solar System Metering SystemNegotiableMOQ: 1
-
Multi Tariff Energies Optional Acrel PZ72L-DE LCD Display Energy Smart Meter for Solar Energy Metering SystemNegotiableMOQ: 1
-
China Manufacturer High Precision PZ72L-DE LCD Display pv Energy Monitor Energy Consumption Electric MeterNegotiableMOQ: 1
-
Acrel China Manufacturer Direct Connect DC Panels dc Solar Energy Meter WithRS485 InterfaceNegotiableMOQ: 1
Product Description
Programmable dc ammeter / amper meter / ammeters with for solar power.
Digital ammeter with the control equipment to regroup measuring and controlling system.
It can be equipped with RS 485 communication under Modbus-RTU protocol;it has options of analog output,relay alarm and switch state.
Digital ammeter with the control equipment to regroup measuring and controlling system.
It can be equipped with RS 485 communication under Modbus-RTU protocol;it has options of analog output,relay alarm and switch state.
Characteristic
Rated I :DC **A/75mV DC **A/5V DC5A
Display: LED display
Option function/C: RS485(Modbus-RTU) Communication
Option function/M: 1channel 4-20mA analog output
Option function/J: 1 channel alarm output
Option function/J: 1 channel alarm output
Option function/K: 2DI/2DO Switching
Accuracy
Class 0.5
Frequency
Range: 45-65Hz
Auxiliary power supply
AC/DC 85-265V
Consumption
Voltage:Power consumption: <0.5VA;
Current:Power consumption:< 0.5VA;
Auxiliary power supply:Consumption<5VA
Frequency
Range: 45-65Hz
Auxiliary power supply
AC/DC 85-265V
Consumption
Voltage:Power consumption: <0.5VA;
Current:Power consumption:< 0.5VA;
Auxiliary power supply:Consumption<5VA

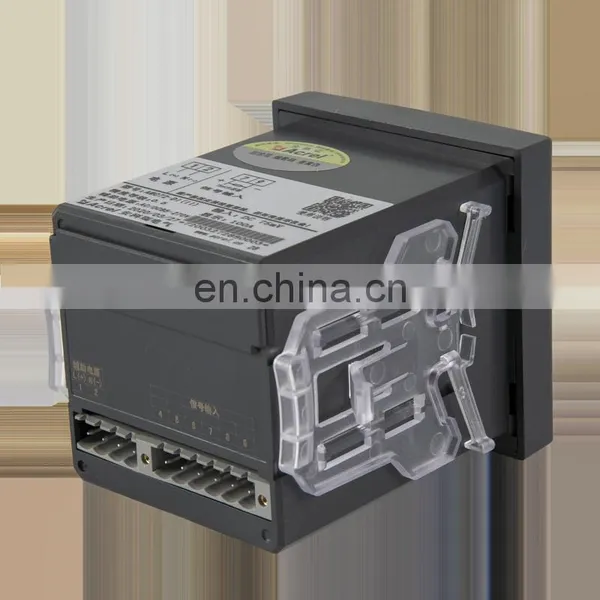

Pannel mounted
Dimension(L*W*H)
Pannel size(L×W):75*75mm
Cutout(L×W):67*67mm
Housing(L×W×H):66*66*94.3mm
Relay
3A/30VDC,3A/250VAC
Humidity
≤93%RH,no condensation
Specification
Specification |
|||||||
Reference voltage |
DC1000V、300V、10V |
||||||
Consumption
|
＜0.5VA |
||||||
Frequency |
45-60Hz |
||||||
Accuracy class |
Error±0.5% |
||||||
Display |
LED |
||||||
Function |
Communication |
RS485, Modbus-RTU compatible protocol |
|||||
Alarm |
1 channel passive relay ,1A/30VDC, 1A/250VAC |
||||||
Analog |
DC4~20mA,DC0~20mA( load1kΩ）etc. |
||||||
Switching |
Dry contact Input, built-in power supply ; optoisolator |
||||||
2 channel switching output, NO relay contact |
|||||||
Power supply |
Voltage range |
AC220V ± 10% |
|||||
consumption |
＜5VA |
||||||
Operation Temperature |
-10 ºC~+55 ºC |
||||||
Storage Temperature |
-25 ºC ~+70 ºC |
||||||
Insulation resistance |
≥100MΩ |
||||||
Power frequency withstand voltage |
Between power supply set of terminals and signal Input, output set of terminals 2kV/1min (RMS) |
||||||
Altitude |
≤ 2500m |
||||||
Relative humidity |
≤93%RH, no condensation, without corrosive gas |
||||||
