Complete Set of Impulse Current Generator

Contact US

Email:coco@launch-electric.com

    Applications

    The impulse current generator is mainly used for tests on impulse current WitlStand Of electrical

equipment. '"dely applied for impulse Current test on Zinc oxide arrester valve. weather lighting. and Other

research tests, etc.

    Performance

    The impulse current generator can generate standard impulse current waveforms of 1/20ps. 4/10gs,

8/20gs, IOf350gs, 18/40gs, 30/30"s. 2000 PS, the technical index meeting the state standards (GB) and

IEC standards. Our Products identified by the ministry of power. main technical performance in the leading

position in China, reached the international advanced technology

    Characteristics

    1,Small dimensions. compact structures, and easy modulated waves

    2, Large Output current (200kA with 4/10"s waveform, 100kA with 8/20"s waveform)

    3,Triggering model selects push of upper ball cylinder. excellent synchronization. and reliable action

    4, The bushing Of each main capacitor connected with a large capacity energy-absorbing non-sense

resistors. to ensure the safety of the main capacitor.

    5,Constant current charge. computer integrated system of measure and control, high degree of

automation, and strong anti-interference abilities.

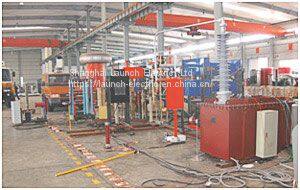

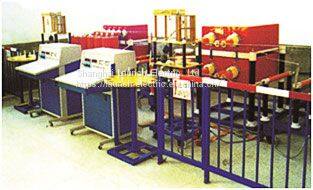

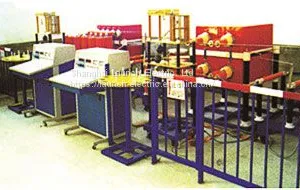

multi-waveform impulse current generator

2mSsquare wave impulse current

for simulating lightning impulse current test

150kVA impulse current generator
