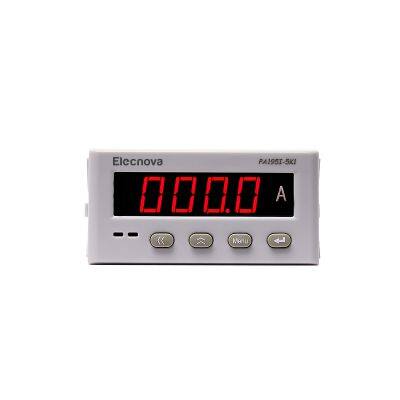

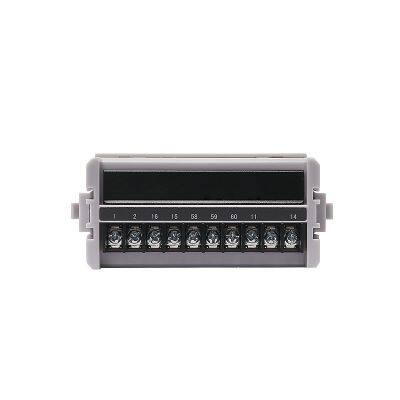

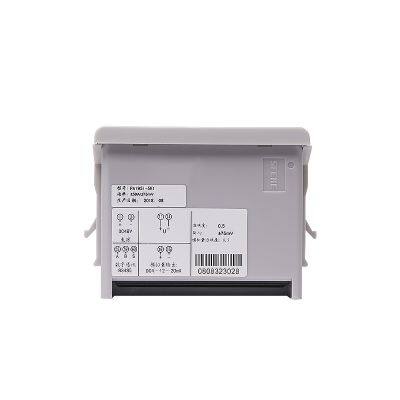

Help CenterElecnova PA195I-5K1 96*48mm 1 Phase Digital LED Panel RS485 DC Ampermeter
Related Products
-
Elecnova PZ195U-DK1B 48*48mm Single Phase LED Panel Analog Output Digital dc MillivoltmeterNegotiableMOQ: 1 -
PA194I-9K1 AC Single Phase Programmable Rs485 Digital Panel Current MeterNegotiableMOQ: 1
-
Solar Energy System Multifunctional High Accuracy DC Volt/current Energy MeterNegotiableMOQ: 1
-
LNF56 Smart Panel Mounted Real-time Measurement RTM Energy MeterNegotiableMOQ: 1
-
LNF33 Three Phase Current Panel Mounted Smart Energy MeterNegotiableMOQ: 1
ampere meter dc

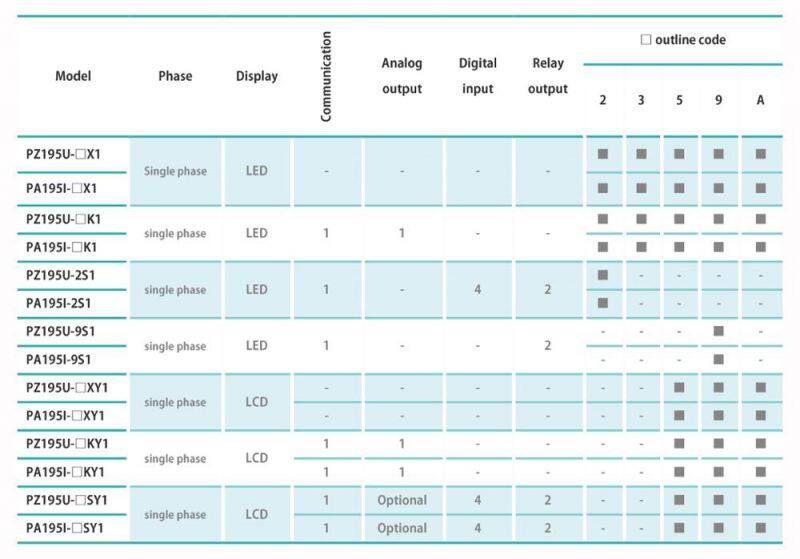

1.Product introduction
There are two series of DC digital meters which are PA19 series digital display DC ammeter and PZ19 series digital display DC voltmeter. They are used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
2.Outline dimension
Outline code | Pointer meter model | Panel(mm2) | Cut-out(mm2) | Installation depth(mm) |
2 | 42 square type | 120×120 | 111×111 | 55.5/76 |
3 | 6 square type | 83×83 | 76×76 | 75 |
9 | 9 square type | 96×96 | 91×91 | 75/98 |
A | 61 square type | 74×74 | 67×67 | 75/90 |
5 | 5 slot type | 96×48 | 91×44 | 68.5/82 |
3.Technical specification
Electrical feature | ||
Accuracy | 0.2%, 0.5%(defaulted) | |
Data refresh rate | 1s | |
Input | Rated voltage value | DC 75mV, 1~5V, 110V, 220V, 1000V etc. |
Rated current value | DC 4~20mA, 1A, 5A, 10A, 75mV | |
Overload | continuous 1.2 of rated value | |
Power supply | Working range | AC 80~270V (50/60Hz), DC 80~270V, DC 24V |
Consumption | ≤5VA | |
Digital input | Dry contact mode | |
Relay output | Contact capacity (resistive):AC 5A/250V, DC 5A/30V | |
Analog output | Current output | DC 4~20mA, 0~20mA etc.,load≤350Ω |
Voltage output | DC 0~5V, 1~5V etc.,load ≥20kΩ | |
Communication | RS485 interface,Modbus-RTU protocol,baud rate 2400~9600bps | |
Environment | ||
Protection degree | Panel IP64,Case IP20 | |
Working temperature | -40~70℃(LED), -25~70℃(LCD) | |
Storage temperature | -40~85℃ | |
Relative humidity | ≤93%RH | |
Insulating ability | Between power and input or output≥AC2kV; Between input and output≥AC1kV | |
Altitude | 2500m | |
