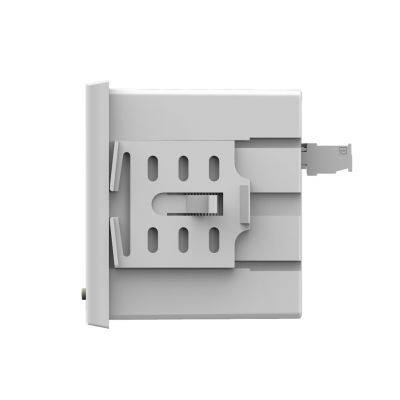

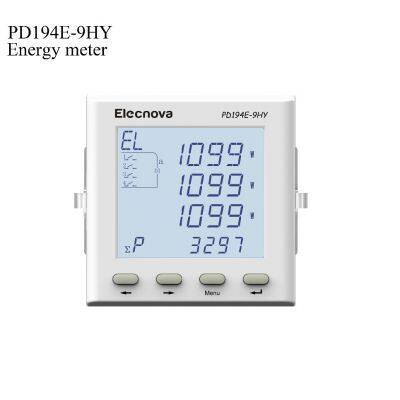

PD194Z-9HY LCD display multifunction harmonic monitoring digital panel meter

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Name: PD194Z-9HY LCD display multifunction harmonic monitoring digital panel meter

This series of multi-function power meters support all-parameter measurement, bi-directional energy metering, four-quadrant reactive metering and harmonic analysis. they can be connected to power monitoring system and energy management system to realize remote data monitoring.

Technical Parameter

Accuracy		Voltage, current: 0.2%;power: 0.5%, frequency:±0.01HZ;Active energy:0.5s
Data update rate		1s
Signal Input	Rated current	AC 1A,5A
		Rated voltage	AC 100V,3800V
		Overload	Continuous:2In,instantaneous:10In/5s Continuous:1.2Un,instantaneous:2Un/10s
		Energy consumption	≤0.1VA
		Fequency	45~65HZ
Communication	RS485 interface	Modbus-RTU protocol, baud rate up to 9600bps
Energy pulse		Optocoupler isolation ,pulse width 80ms±20%
Digital Input		Optocoupler isolation ,passive dry contact
Relay Output		Contact capacity AC250V/5A or DC 30V/5A
Auxiliary power supply	working range	AC/DC 80~270V
Auxiliary power supply		Energy consumption	≤5VA
Environment condition	working temperature	-10~55℃
		storage temperature	-25~70℃
		Relative humidity	≤93%RH
		Altitude	≤2500m
Safety	Insulation	Signal power supply output terminal to case resistance ≥100MΩ
Safety		Withstand voltage	Power supply，input and output ≥2kv
Protection level		IP54

Related Products

Application

■ Smart equipment

■Intelligent building

■Public facility

■Industrial and mining enter enterprise

■Panel Meter

Production Process

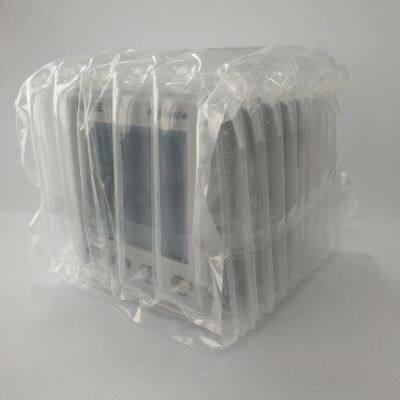

Packing & Delivery

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
