Help CenterPZ194U-9SY3 3 Phase Lcd Digital Display ac Voltmeter With Relay Output
Related Products
-
S3U96 96*96mm 3 Phase Digital LED ac Voltmeter Rs485NegotiableMOQ: 1 -
SU96 96*96mm Single Phase Panel Mount Led Digital ac VoltmeterNegotiableMOQ: 1
-
Elecnova PD194H-9K1 96*96mm Digital Display RS485 AC Single Phase Power Factor Meter CosNegotiableMOQ: 1
-
Elecnova PZ195U-DK1 48*48mm 1 Phase Mini Digital Panel High Precision Communication Voltmeter dc VoltmeterNegotiableMOQ: 1
-
Elecnova PA195I-5K1 96*48mm 1 Phase Digital LED Panel RS485 DC AmpermeterNegotiableMOQ: 1
voltmeter

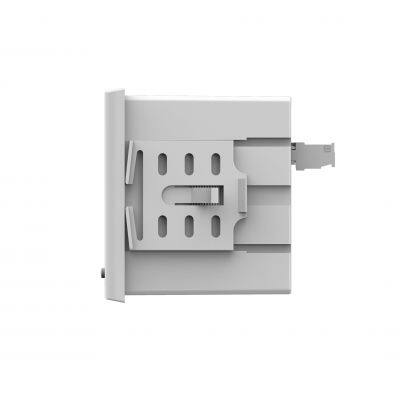

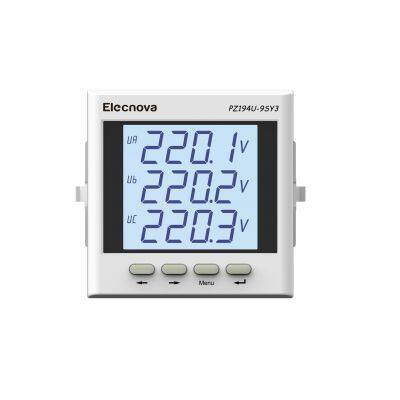

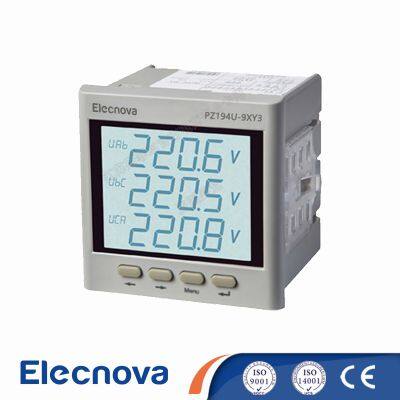

1.Product display
2.Product introduction
This series digital display voltmeters are used to measure single phase or three phase AC voltage in low voltage distribution system. They are equipped with analog output, relay output, digital input and communication supporting Modbus-RTU protocol. Their transmitting ratio also can be changed through programming. There are different choices of outline size for this kind of meters. So they are suitable to replace analog pointer voltmeters.
This series digital display AC voltmeters have high environment adaptability because their working temperature range is -40~70℃ and EMC better than III level. They can be applied in control systems, distribution automation systems, industrial automation systems and intelligent buildings.
3.Technical specification
|
Accuracy |
0.5%(defaulted), 0.2% |
|
|
Display mode |
LED or LCD |
|
|
Data refresh rate |
1s |
|
|
Input |
Rated value |
AC 100V, 220V, 380V |
|
|
Overload |
continuous 1.2Un |
|
|
Frequency |
45~65Hz |
|
Power supply |
Working range |
AC 80~270V 50/60Hz, DC 80~270V |
|
|
Consumption |
≤5VA |
|
Digital input |
Dry contact mode |
|
|
Relay output |
Contact capacity (resistive):AC 5A/250V, DC 5A/30V |
|
|
Analog output |
Current output |
DC 4~20mA, 0~20mA, 0~5mA etc., If 4~20mA or 0~20mA,load≤350Ω If 0~5mA,load≤1 kΩ |
|
|
Voltage output |
DC 0~5V, 1~5V, 0~10V etc.,load≥20kΩ |
|
Communication |
RS485 interface,Modbus-RTU protocol,baud rate 2400~9600bps |
|
|
Environment |
||
|
Working temperature |
LED:-40~70℃ LCD:-25~70℃ |
|
|
Storage temperature |
-40~85℃ |
|
|
Relative humidity |
≤93%RH |
|
|
Pollution degree |
2 |
|
|
Measurement type |
CAT III |
|
|
Insulating ability |
Between power and input or output≥AC2kV, Between input and output≥AC1kV |
|
|
Altitude |
2500m |
|
4.Function
-Measure three phase AC voltage in low voltage distribution system;
-RS485 communication port, Modbus-RTU protocol;
-Digital inputs;
-Relay outputs;
-Suitable for replacing pointer meter;
-Electrostatic discharge surge immunity: IEC 61000-4-2-Level III
-Radiated, radio-frequency, electromagnetic field immunity: IEC 61000-4-3- Level III
-Electrical fast transient/burst immunity: IEC 61000-4-4- Level IV
-Surge immunity: IEC 61000-4-5- Level IV
-Immunity to conducted disturbances, induced by radio-frequency fields: IEC 61000-4-6- Level III
-Power frequency magnetic field immunity: IEC 61000-4-8- Level III
-Voltage dips, short interruptions and voltage variations immunity: IEC 61000-4-11- Level III
5.Feature
-Clear digital display, easy for reading;
-Programmable voltage ratio;
-True RMS measurement;
-High protection level;
-Wide temperature working environment.
