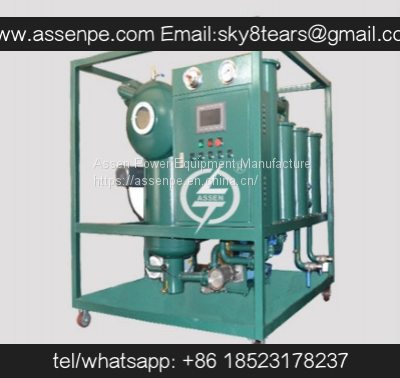

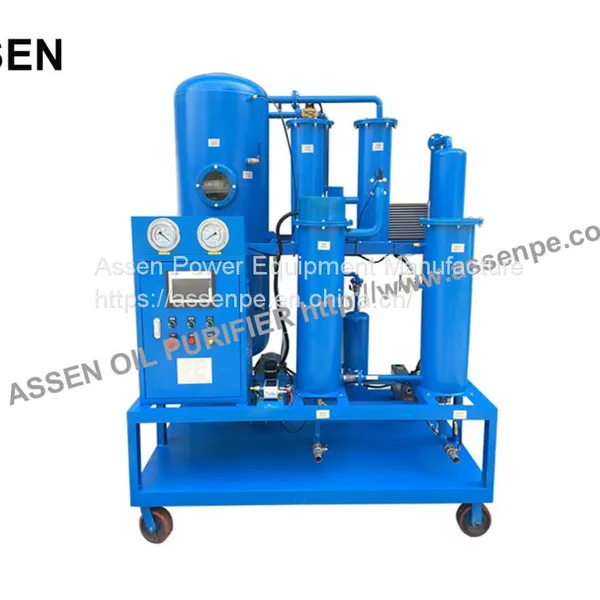

Large Dehydration Volume Online Engine Oil Filtration Machine, Gear Oil, Shipping Oil, Fuel Oil Purification
Application
Large Dehydration Volume Online Engine Oil Filtration Machine is used for treating the unqualified turbine oil, such as engine oil, gear oil, shipping oil, fuel oil, mineral oil, etc, especially the seriously emulsified turbine oil. This products, which can rapidly and effectively remove the water, gas and impurities, aim at turbine oil's nature of high water content, easy emulsifiable and high impurity content, and make the oil recover the new oil's nature.
Assen integrate the gravity method, evaporation method, coacervation, vacuum separation and mechanical purification, utilizing coacervation, molecular absorption, vacuum drying and automatic demulsifying technologies in this machine, which are capable of separating large and minimal amount of water from oil effctively. Its high water removal and demulsifying efficiency makes turbine oil and lubricating oil to be clear and limpid.
Features:
1. It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.
2. Air cooling system helps cool down air and gases from the flash distillation column so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling.
3. The machine can also be installed with digital flow meter and timer to calculate and record the volume of output oil and working hours (it's optional).
4. Aluminum electric control cabinet has the merits of heat conducting and anti-explosion.
5. The automatic series model has the following merits:
(1)Automatic oil purifier series is installed with PLC (programmable logical computer system), which can control the equipment automatically to every stage of its process and ensure its safe operation on site and on line without human supervision.
(2)The equipment is installed with auto alarming system, it will give out alarm and stop the whole machine when electrical motor is overloaded, vacuum pump and oil pump overloaded, heater overloaded and pressure abnormal.
(3)The equipment is installed with auto control of vacuum pressure, auto drainage of water from the equipment.
6. 600-12000 LPH flow rate can meet all your process requirement
7. The precision multi-stage filter element
8. Advanced infrared level automatic control system,voice & light automatic alarm system and the pressure protection device
9. Turbine oil and low viscosity lubricant oil can be treated online.
6. It is reliable and safe to use
Technical Parameters
| Item | Unit | TY-10 | TY-20 | TY-30 | TY-50 | TY-100 | TY-150 | TY-200 | |
| Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | |
| Working vacuum degree | MPa | 0.06 ~ 0.095 | |||||||
| Working pressure | MPa | ≤0.3 | |||||||
| Running temperature | ºC | 40 ~ 70(the temperature of turbomachine below 55ºC) | |||||||
| Heating power | kW | 14 | 16 | 18 | 30 | 45 | 55 | 60 | |
| Total power | kW | 16 | 18 | 20 | 33 | 48 | 61 | 71 | |
| Inlet/outlet caliber | mm | φ25 | φ25 | φ25 | φ32 | φ42 | φ50 | φ50 | |
| Size | L | mm | 1280 | 1350 | 1350 | 100 | 1500 | 1500 | 1600 |
| W | mm | 750 | 900 | 950 | 950 | 1000 | 1200 | 1350 | |
| H | mm | 1450 | 1450 | 1500 | 1600 | 1650 | 1800 | 1800 | |
| Weight | kg | 320 | 400 | 420 | 450 | 750 | 800 | 900 | |
Guarantee Data after Purification
| Capability item | Data |
| Moisture | ≤100PPM |
| Break emulsification value | ≤15min (GB/F 7305) |
| Clean degree | ≤6grade (NAS1638) |
Structures
Assen's Information
Professional
20 years experience of manufacturing and exporting oil purification machines
Reliable
24/7 after service and technical support
Efficient
Customized your waste oil solutions by our team
Chongqing Assen Power Equipment Co.,LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff, professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification System, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Lubricating Oil Purification, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipment operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.ASSEN warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of twenty-six (26) months from the date of shipment or twenty-four (24) months after the start-up of the system. ASSEN's obligation under this warranty is limited to repairing or furnishing, a similar part to replace any part, which was proven to be defective within the warranty period.
1. We customize the machine to your requirements.
2. We have more than 20 years of export experience.
3. We offer our customers high-quality products at a competitive price.
4. We offer our customers excellent after-sales service.
5. We are not satisfied until our customers are satisfied.
contact us for your customized waste oil solutions!
