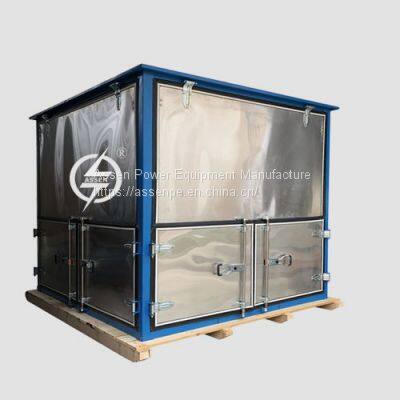

Fully-Enclosed Type Vacuum Transformer Oil Dehydration, Transformer Oil Purification Plant
- 50 Cubic Meter / Cubic Meters per Month
- CHONGQING
- T/T L/C
- 15 days
- Waste Oil Regenerating Equipment for Various Dielectric Oils
- BZ Transformer oil regeneration Equipment
- Transformer OLTC On-load Tap Changer Oil Purifier//separator/Regeneration/Dehydration Machine
- Insulation Oil Regeneration Machine
- On-load Tap Changer Oil Filter Oil Filtration Machine Oil Decanter
- Specilize Model BZ Transformer Oil Regeneration Unit
Product Details
Brand Name: | Assen | Place of Origin: | China | Model Number: | zyd-150 |
Certification: | iso 9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 1150kg |
Dimension(L*W*H): | 1880*1860*1850mm | Voltage: | 380v or as you need | Usage: | Transformer Oil |
Condition: | New | Power(W): | 52.5kw | Working Pressure: | 0.4mpa |
Flow: | 150L/m |
Product Description
Fully-Enclosed Type Vacuum Transformer Oil Dehydration, Transformer Oil Purification Plant
Application
In the transformer maintenance project, it is very important to measure the dielectric strength and dry of transformer oil . For keeping transformer oil absolutely clean and dry with a suitable breakdown voltage, our Assen develops Vacuum Transformer Oil Dehydration Equipment, which uses two stages vacuum dehydration and degasification system. We also install a three-stage filtering system for removing particles well. Assen Vacuum Transformer Oil Purification Plant is widely used in electric power, transforming electricity industry, metallurgy, chemical engineering, traffic, railway, and others project. For this full enclosed type, Assen special designed a door for outside use, which can protect the machine and extend the service life time.
Features
1. Operational control can be a switch- and relay-logic or PLC (Optional) with touchscreen online test and monitoring equipment
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Precise filtration system, high-quality filter element,multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliability.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connects the oil pump, heater, and liquid level sensor, avoiding blank heating, blank pumping.
8. Stable, reliable and safe to use
Real photo
Technical Parameters
Parameters | Unit | ZYD-35 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow | L/Hr | 2000 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
Working vacuum | Mpa | -0.08 ~ -0.099 | |||||||
Working Pressure | Mpa | ≤0.4 | |||||||
Temperature Range | ºC | 0 ~ 100 | |||||||
Power | Three Phase 50HZ 380V(or as needs) | ||||||||
Working hours without Trouble | Hour | 4000 | |||||||
Continuous Working Hours | Hour | 150 | |||||||
Working Noise | dB(A) | 75 | 75 | 75 | 80 | 80 | 80 | 80 | |
Heating Power | KW | 16 | 30 | 45 | 60 | 75 | 90 | 120 | |
Total Power | KW | 22 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | |
Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
Weight | Kg | 750 | 850 | 1150 | 1150 | 1450 | 1600 | 2200 | |
Overall | Length | mm | 1380 | 1480 | 1880 | 1980 | 2100 | 2300 | 2550 |
Width | mm | 1300 | 1450 | 1860 | 1960 | 2060 | 2200 | 2490 | |
Height | mm | 1350 | 1450 | 1850 | 1950 | 2050 | 2280 | 2520 |
