Double Stage Vacuum Heating Transformer Oil Filtration Machine ZYD 18000 Liters per Hour
Technical Features
1.Dehydration, degassing, and impurity removal of 110-1100KV main transformer insulation oil
2.Double-Stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value no more than 5Pa
3.Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas, from oil.
4.An advanced fully automatic temperature controlling system,liquid-level controlling system, defoaming controlling system, pressure protecting system, and excellent configuration can ensure operation of the equipment with high performance
5.Online work, allowing separated operation of manual operators from the machine with lamps indicating the condition for operation.
6.It is a humanization design with low noise, deep purification, and long-time free maintenance to save cost from the running process.
7. High effecient, reliable, and stable to use.
8. Customized parts and functions to meet your needs.
Technical Parameters
| Parameters | Unit | ZYD-300 | |
| Flow rate | L/min | 300 | |
| Working vacuum | mpa | -0.08 ～ -0.099 | |
| Working Pressure | MPa | 0.4 | |
| Temperature Range | ºC | 0-100 |
|
| Power | Kw | Three Phase 50HZ380V(as per the customer's requirements) | |
| Working Noise | dB(A) | 80 | |
| Heating Power | kW | 120 | |
| Total Power | kW | 135 | |
| Inlet/Outlet | mm | 60 | |
| Weight | kg | 2200 | |
| Overall | Length | mm | 2350 |
| Width | mm | 2200 | |
| Height | mm | 2380 | |
Moisture |
PPM |
≤3 |
|
Gas content |
% |
≤0.01 |
|
Impurity size |
μ |
≤1 (no free carbon) |
|
Breakdown voltage |
kV |
≥75 |
|

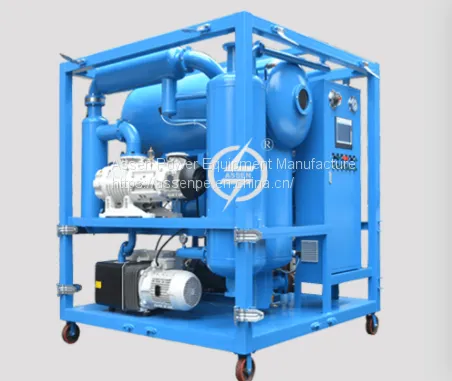

Real photo
Delivery
